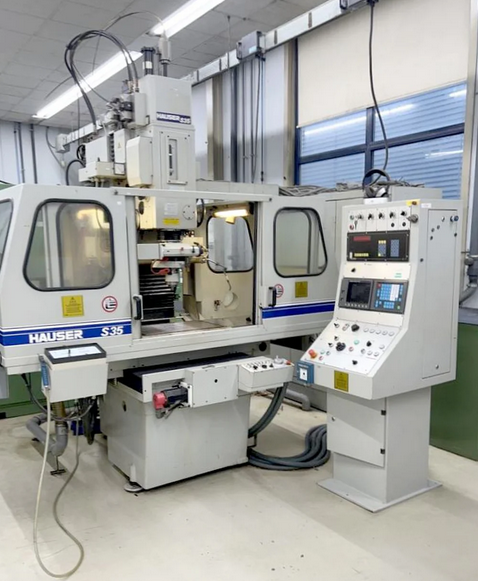

Hauser S 35-400

CNC Jig Grinder

Table Length: 600 mm
Table Width: 380 mm
T-Channel Width: 10 mm
Number of T-Slots: 6
Distance of T-Slots: 50 mm
Max Table Load: 200 kg
Longitudinal Travel (X-axis): 500 mm
Transversal Travel (Y-axis): 300 mm
Vertical Slide Travel: 450 mm
Passage Spindle–Table: 485 mm
Max Grinding Diameter: 230 mm
Max Grinding Diameter with Intermediate Plate: 360 mm
Spindle Nose Stroke: 340 mm
Max Angle with Taper Grinding: 16°
Vertical Travel of Grinding Spindle: 1–110 mm stepless
Travel Speeds: 1–12 m/min stepless
Planetary Motion Speeds (C axis): 5–250 t/min stepless
X Axis Feed: 0–12 m/min
Y Axis Feed: 0–12 m/min
W Axis Feed: 900 mm/min
Voltage: 3x380 V 50 Hz
Spindle Motor: 7.5 kW
Machine Weight: 4,000 kg
Overall Dimensions Length: 2,700 mm
Overall Dimensions Width: 1,700 mm
Overall Dimensions Height: 2,850 mm
