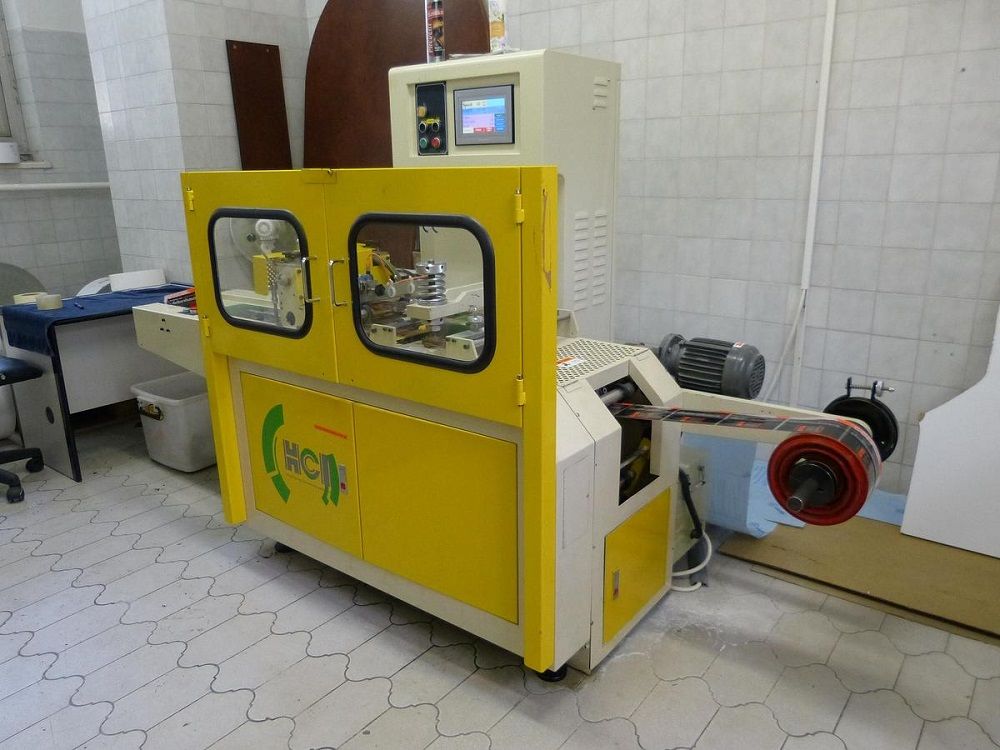

HCI FSC -201 PVC

Shrink Sleeve Label Cutting Machine
SHRINK LABEL CUTTING MACHINE
FSC-201 PVC: this cutting machine is suited for perforating and cutting operations for various shrink labels, shrink sleeves
It provides flexible cutting profiles of the product
Also for electronics, computer and optical materials, film roll and foil roll cutting operations
Series: FSC 201, 301, 501 PVC Cutting Machine

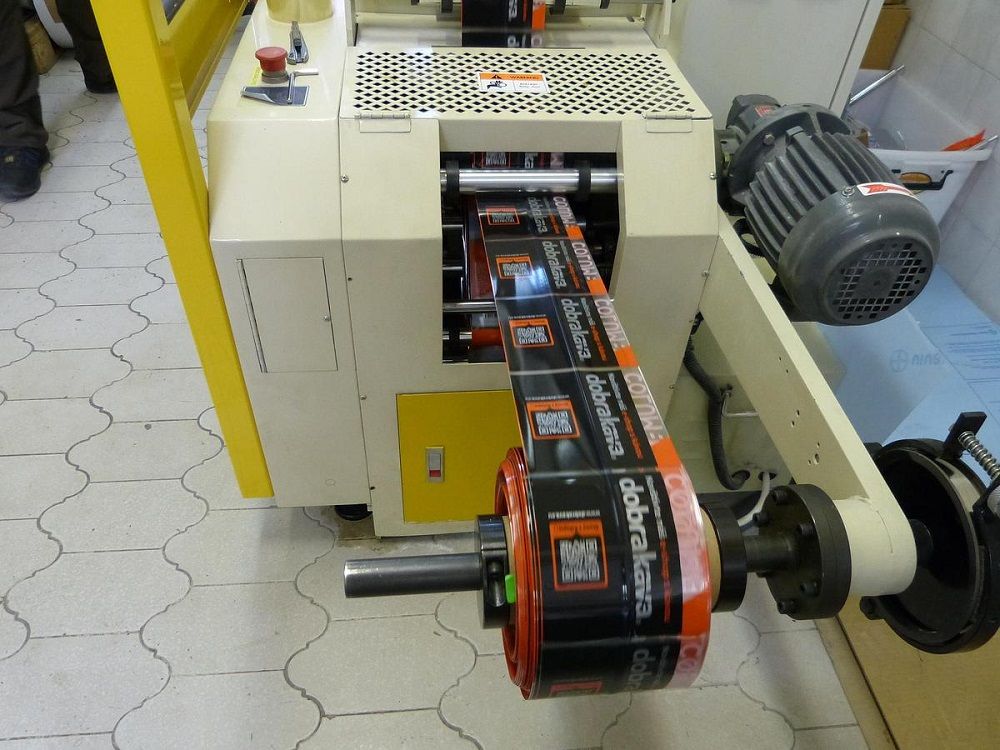

Unwind
Replaceable unwind shaft is suited for five claw coreless and 3” paper core
AC motor driven unwind dancing roller unit for auto speed varied and assures that the most stable web feeding even under high speed cutting machine operation

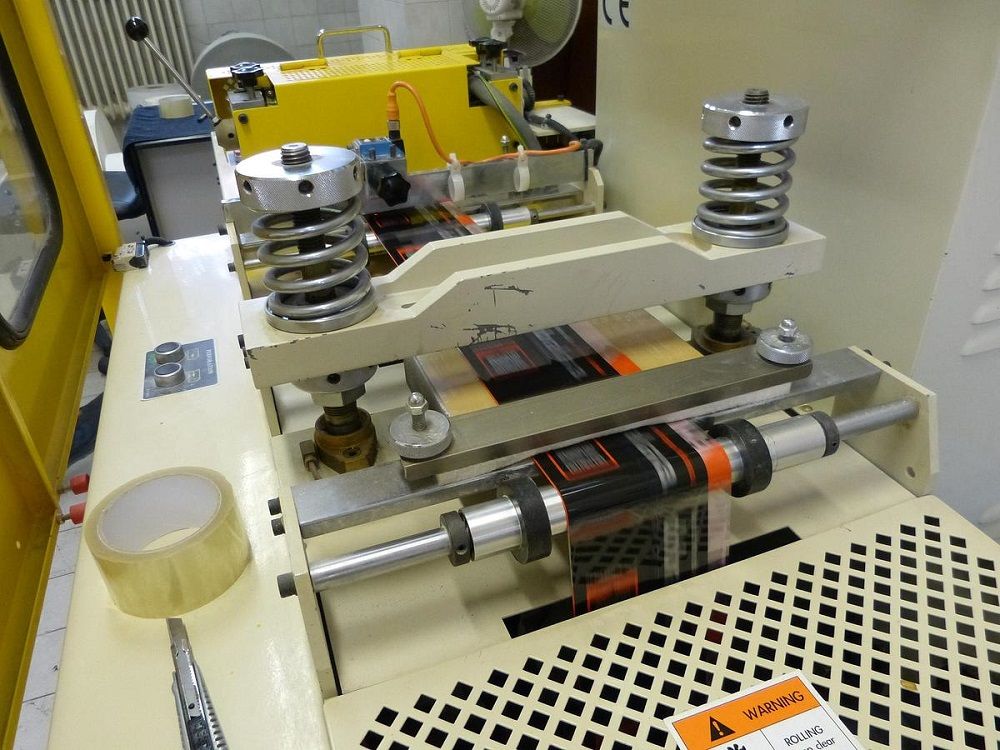

Perforating
Equipped with perforating device which can easily adjust the pressure and position

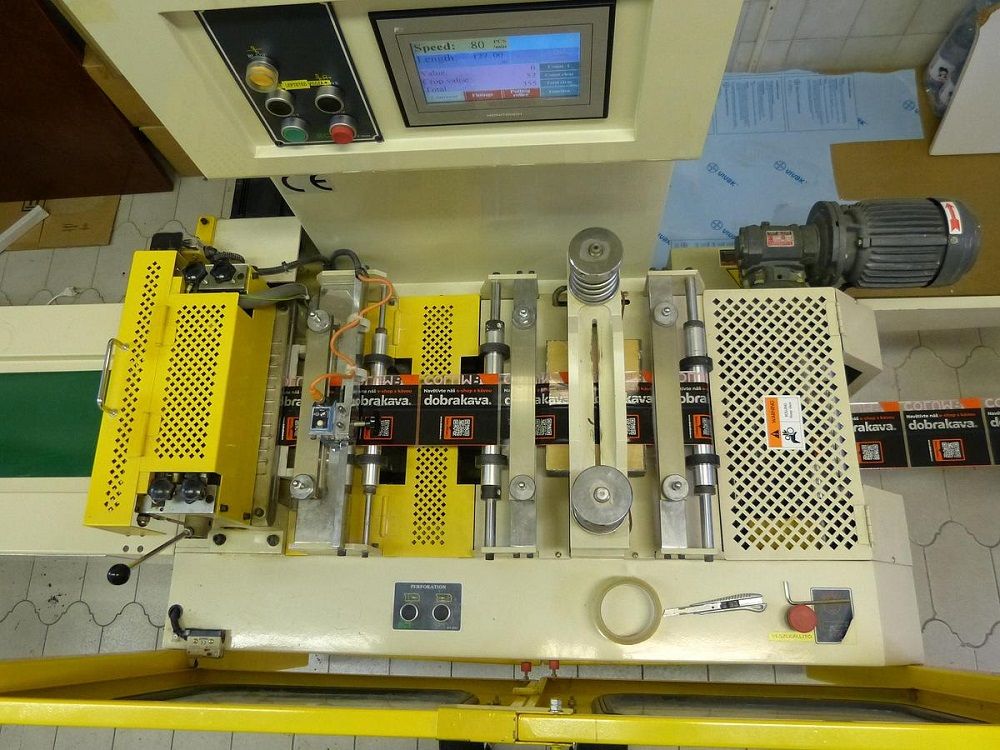

Cutting
Cutting length is accurately controlled by servo motor incorporated with a German made photocell sensor for greatly upgrading the production speed
Equipped with static electricity removing device
Employs the product conveyor

Micro computer control system
Auto counting function
Accumulative recording function
Auto stop function for photocell ineffective

Specification FSC 201 PVC high speed cutting machine
Tube width: 30-200mm
Material diameter maximum: 700mm
Unwind inner diameter: 76mm, 3” or 300mm 5 claw coreless
Cutting length: 10-400mm
Mechanical speed: 30-350pcs/min
Feeding speed maximum: 35mm
Machine was actually commissioned in 2015 and had low utilisation
