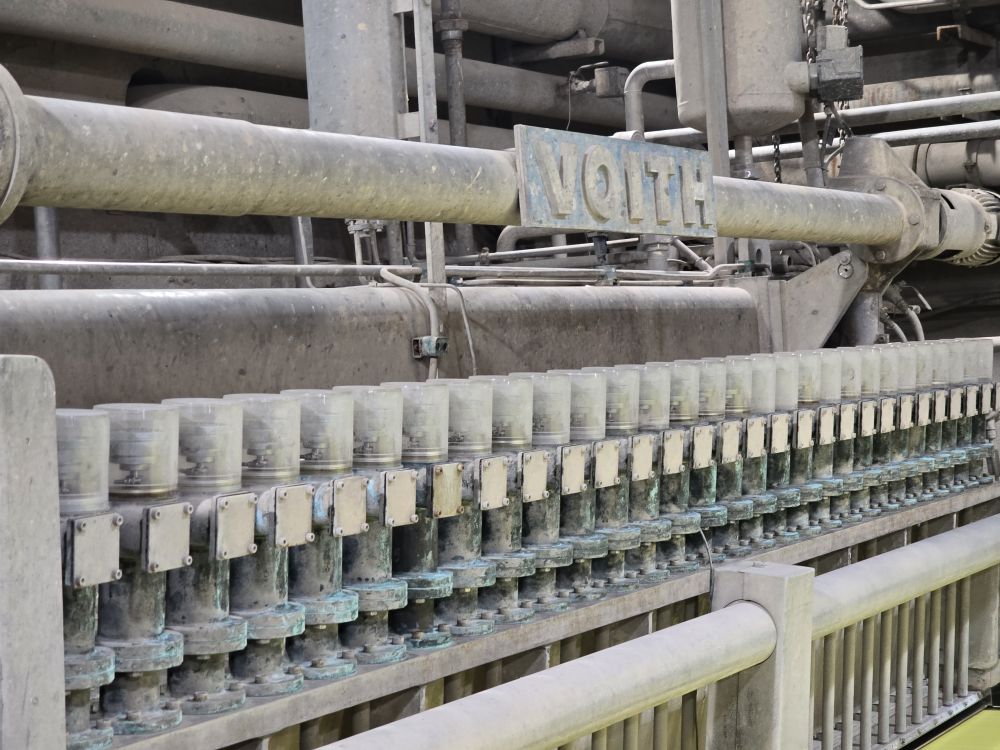

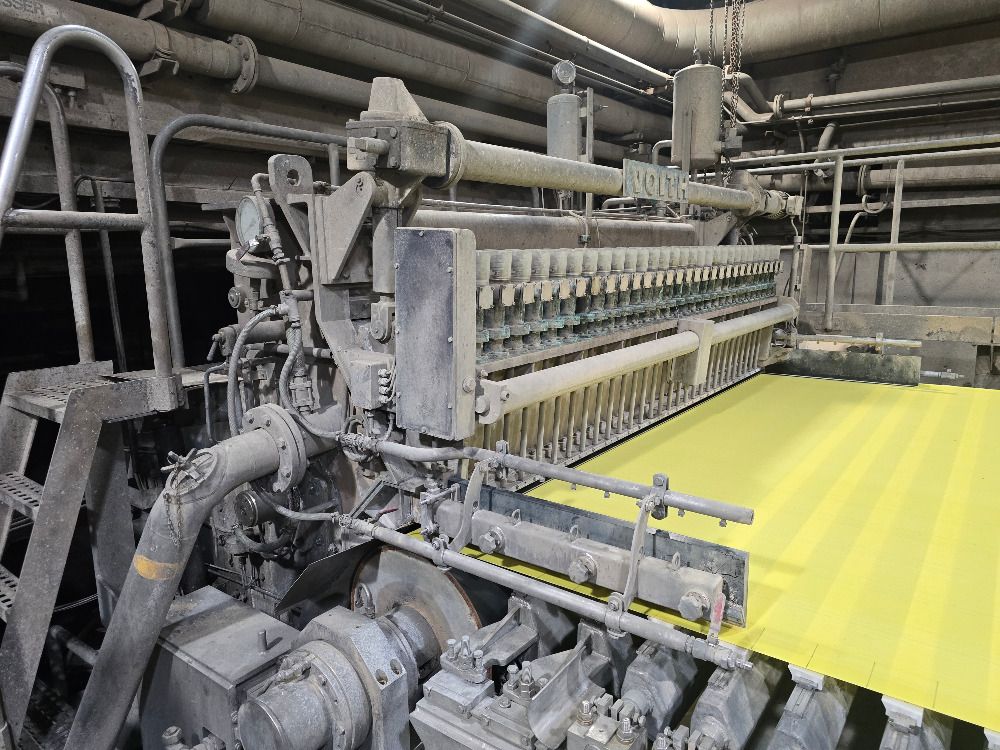

Headbox type K-5 2900mm

Manufacturer Voith Heidenheim

Operating speed 200–400 m/min
Mechanical design speed 400 m/min
Hydraulic capacity 8,200–13,000 l/min at 200–400 m/min
Paper grade Décor paper 50–160 g/m2 (reference 80 g/m2)


Equipment & Components
Component Description / Status
Traverse Installed
Spray pipe Installed
Perforated roll Installed
Adjustment gearbox Installed
Front‐wall sealing Installed
Baffle adjustment gearbox Installed
Lifting cylinder Installed
Rear wall Installed
Front wall Installed
Upper lip Installed
Lower lip Installed
Tube distribution grid Installed
Breast roll Installed
Drain valve Installed
Differential pressure indicator Installed
Support frame Installed
Table Installed
Distribution pipe Installed
