Cincinnati, Heald 261

Ref : 2721859-3-CP
Condition : Used
Manufacturer : Cincinnati, Heald
Model : 261
Year(s) : 1996
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

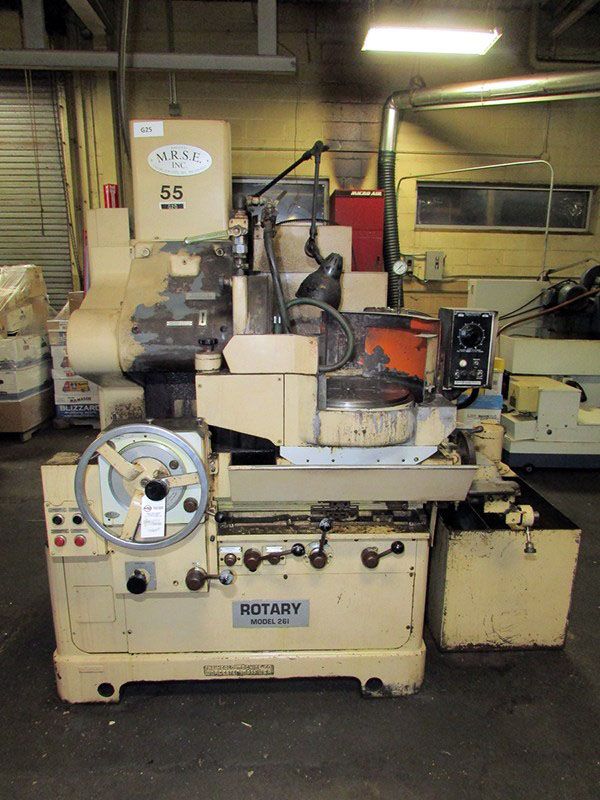

Cincinnati-Heald 261
Year: 1996 (rebuilt by M.R.S.E.)

Chuck face diameter: 16-7/8"
Max. swing inside guards: 18-1/2"
Standard wheel size: 14" diameter x 1" wide x 5" bore
Max. distance chuck to wheel center: 17-3/4"
Min. distance chuck to wheel center: 4-1/4"
Max. height under new wheel: 10-1/2"
Total table slide travel: 12"
Grinding stroke of table: 8"
Table tilt adjustment convex: 17°
Table tilt concave: 10°
Table speeds for grinding: 0 to 12 FPM
Table speeds for run-out: 35 FPM
Chuck speeds (variable): 50 to 225 RPM
Chuck feed rates: 0 to 20 FPM
Auto power downfeed of spindle: 0.0001" to 0.0006"
Machine weight approx.: 8,350 lbs
Approx. dimensions: 78" x 60" x 80" H

17" O.S. Walker #16R electromagnetic chuck
Tuning fork chuck top
Electro-Matic Neutrofier, 300W, variable power control
Over-the-wheel dresser
Wheel retraction knob
Automatic lubrication through hydraulic reservoir for table and vertical ways
Separate lubrication system for chuck
Coolant pump and tank (33" x 20" x 20")
15 HP spindle motor, 3/60/230-460 volts
3 HP hydraulic pump
Motors 3/60/220-440 volts
Machine wired for 3/60/220 volts, 41 FLA
