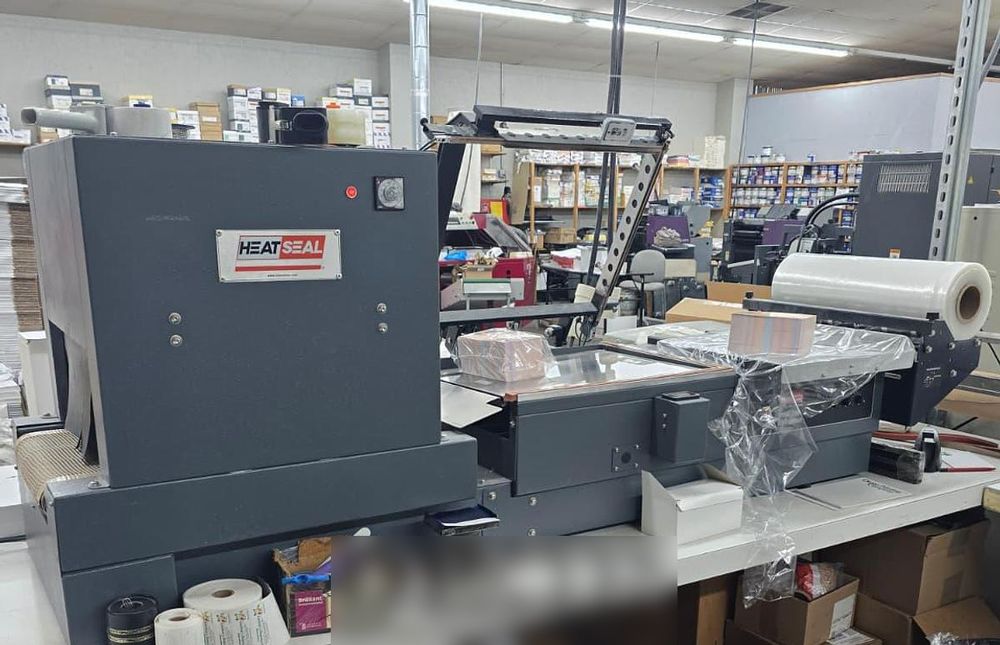

Heat Seal HSE-100 16" (41 cm)

The HeatSeal HSE100-MXXA is a Standard Duty Semi-Automatic Combo Shrink System
combining an L-Bar Sealer with a Shrink Tunnel for small-volume shrink wrapping applications

Key Features:
Control Panel: Express Control Panel for machine operations
Power Supply: Single plug, 115V, single phase, 17–20A depending on configuration
Sealing System: Impulse wire seal with standard seal head and film clamps
Sealing Platform: Adjustable height for different package profiles
Hold Down: Balanced magnetic hold down for secure film feeding
Conveyor: Pre-wired seal conveyor ready; non-stick mesh tunnel belt for even shrink
Perforating Wheels: Four individually adjustable wheels for precise perforation
Film Cradle: Adjustable to accommodate various package widths up to 17" (43 cm)

Sealing Area :
Width: 16" (41 cm)
Length: 20" (51 cm)
Height: 6.5" (17 cm) for standard packages

Shrink Tunnel Specs:
Inside Tunnel Dimensions: 16" W × 20" L × 6.5" H (41 × 51 × 17 cm)
Conveyor Speed: 0–20 ft/min (0–6 m/min)
Tunnel Wattage: ~2,000 watts
Temperature Control: Independent tunnel temperature control
Cool Down: Automatic cool down to extend heating element life

Overall Dimensions:
Tabletop/Leg Kit: 76.5" L × 24" W × 32"/55" H (195 × 61 × 82 cm)
With Leg Kit: 36" (92 cm) height

Power & Weight:
Power: 115V, single phase, 17–20A depending on configuration
Weight: 380 lbs (172 kg)
