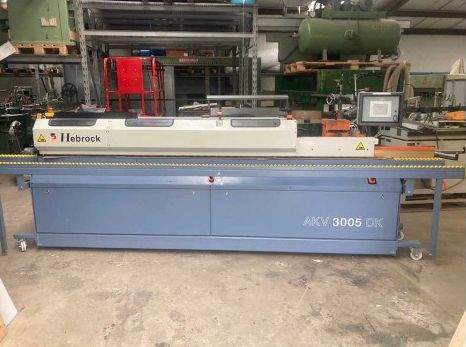

Hebrock AKV 3005 DK

Machine designation: edge banding machine
Motor data: 380 V - 50 Hz - 15.8 A - 10.2 kw
Workpiece thickness: 10 - 40 mm
Edge thickness: 0.5 - 3 mm
Feed approx.: 10 m/min
Compressed air approx.: 7 bar
Extraction connection: 1 x 140 mm
Weight approx.: 1300 kg
External dimensions L/D/H approx.: 4800/1400/1600 mm

Control panel above - PLC touch screen
glue pot
capping station
pressure zone
saw unit
Milling unit top/bottom rounding
radius scraper
corner copying
surface scraper
buff
