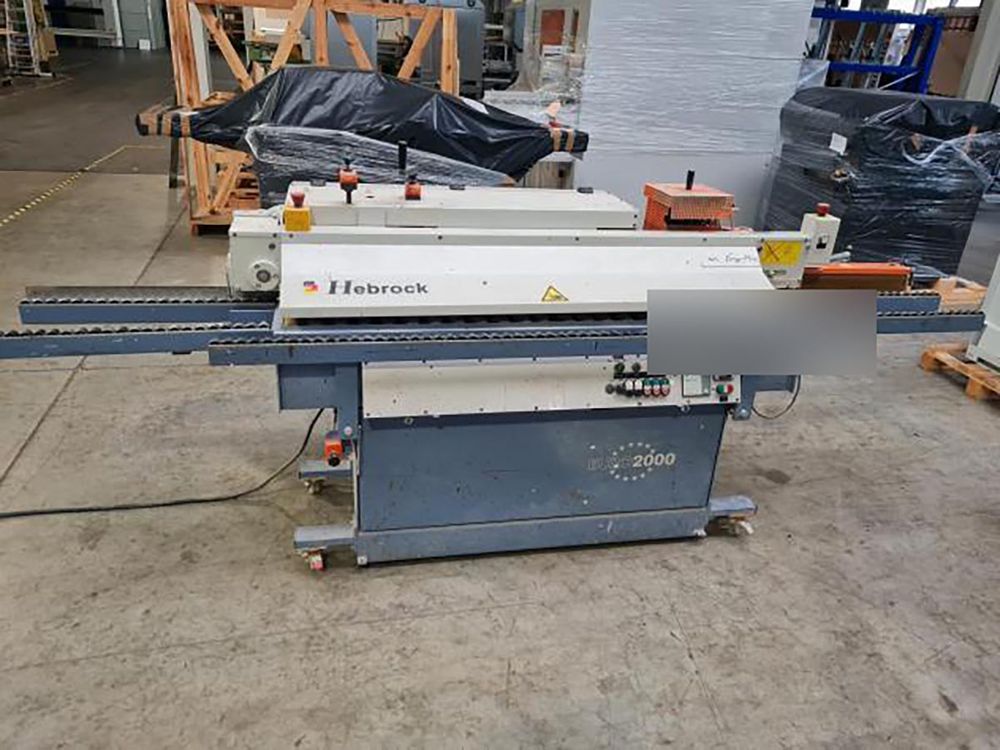

Hebrock EURO 2000

Edge Banding Machines
Description:
Equipment:
- Chassis
- Quick-heat adhesive container
- Support plate for roll material
- Roll cutting device
- Mitre saw
- Flush trimming machine (radius/straight/bevel)
- Extractor nozzle diameter 100 mm

Technical specifications:
Power requirements: 400 V, 50 Hz, 13.3 A, 7 kW
Max. edge thickness 5 mm
Max. workpiece height 40 mm
Min. workpiece length 300 mm
Feed speed 11 m/min
Ready for operation in approx. 4.5 min
Working table height 900 mm
Dimensions 3,300 x 1,400 x 1,300 mm
Weight approx. 550 kg
