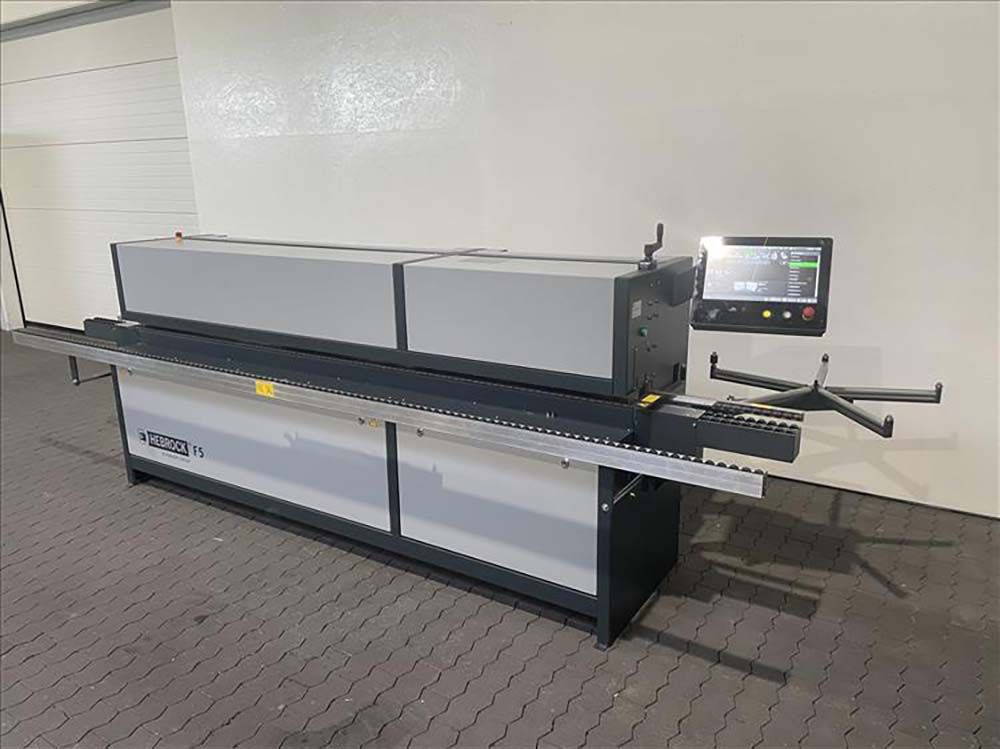

Hebrock F5

Edge banding machine
PC control with screen, touchscreen,
pivoting control panel,
program memory,
manual, self-clamping pressure bridge adjustment,
feed via conveyor chain,
extendable workpiece support,
diamond jointing cutters for up- and down-cutting, rapid heating tank,
glue pot changeover device,
use of PUR adhesives possible,
cross-cut saw with HF motor,
flush/radius trimming unit,
pneumatic trimming unit changeover,
trimming tools with carbide inserts,
corner rounding unit,
multi-radius scraper (R2/R1),
chip catcher for radius scraper,
air nozzle on the radius scraper,
insert-controlled flat scraper,
air nozzle on the flat scraper,
spraying device for lubricant after the printing unit,
spraying device for release agent,
spraying device for Cleaning agent, buffing unit,
additional interchangeable motor for corner milling machine,
additional interchangeable basin,


Technical specifications :
Edge thickness of rolled material: 3 mm,
Workpiece thickness: 50 mm,
Feed speed: 7/10 m/min.,
Distance to workpiece support: 420 mm,
Support plate diameter for edge material: 800 mm,
Screen diagonal: 15 inches,
Joining cutter power: 2 x 1.1 kW,
Crosscut saw power: 0.28 kW,
Milling station power: 2 x 0.28 kW,
Corner rounding power: 0.28 kW,
Buffing power: 0.18 kW,
Compressed air connection: 7 bar,
Total length: 4,300 mm,
Dimensions (LxWxH): 4,300 x 1,200 x 1,470 mm
