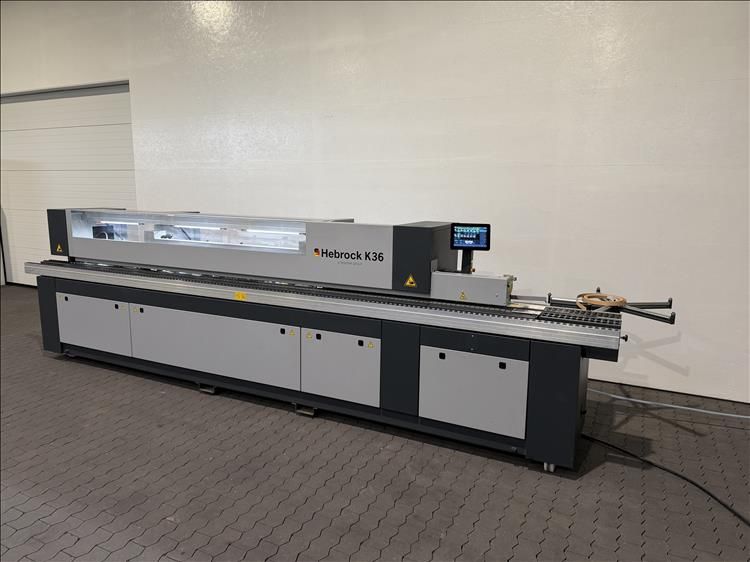

Hebrock K36 Airtronic

Edgebanding machine - used
PC control with screen, touchscreen,
swiveling control panel, program memory,
automatic pressure bridge adjustment, feed via transport chain,
extendable workpiece support, motor-adjustable infeed guide,
diamond jointing cutter in co-rotation and counter-rotation, rapid heating tank,
interchangeable glue pot, suitable for use with PUR adhesives,
miter saw with HF motor, flush trimming unit,
flush/radius/chamfer trimming unit, pneumatic milling unit changeover, multi-tool,
multi-radius scraper, chip collection box for radius scraper,
blow nozzle on the radius scraper, surface scraper, blow nozzle on the surface scraper,
interchangeable motor for corner copying, release agent spray system, cleaning agent spray system,
antistatic coolant spray system, lubricant spray system,
LED lighting in the machine room,interchangeable glue pots, zero-joint Airtronic system

Technical Data :
Edge thickness of roll material: 0.5-3 mm
max. edge thickness Corner copying: 3 mm
workpiece thickness: 8-60 mm
workpiece thickness for corner copying: 45 mm
min. workpiece length: 200 mm
feed rate: 7-10 m/min.
support plate Ø for edge material: 850 mm
crosscut knife for roll material up to: 3 mm
jointing cutter power: 2 x 2.2 kW, crosscut
saw power: 0.37
kW, milling station power: 2 x 0.37 kW, corner
copying power: 0.37 kW, buffing wheel
power: 2 x 0.18 kW
extraction port Ø jointing unit: 60 mm
compressed air connection: 7 bar
overall length: 5,540 mm
dimensions (L x W x H): 5,540 x 1,210 x 1,450 mm
weight: 1,700 kg
