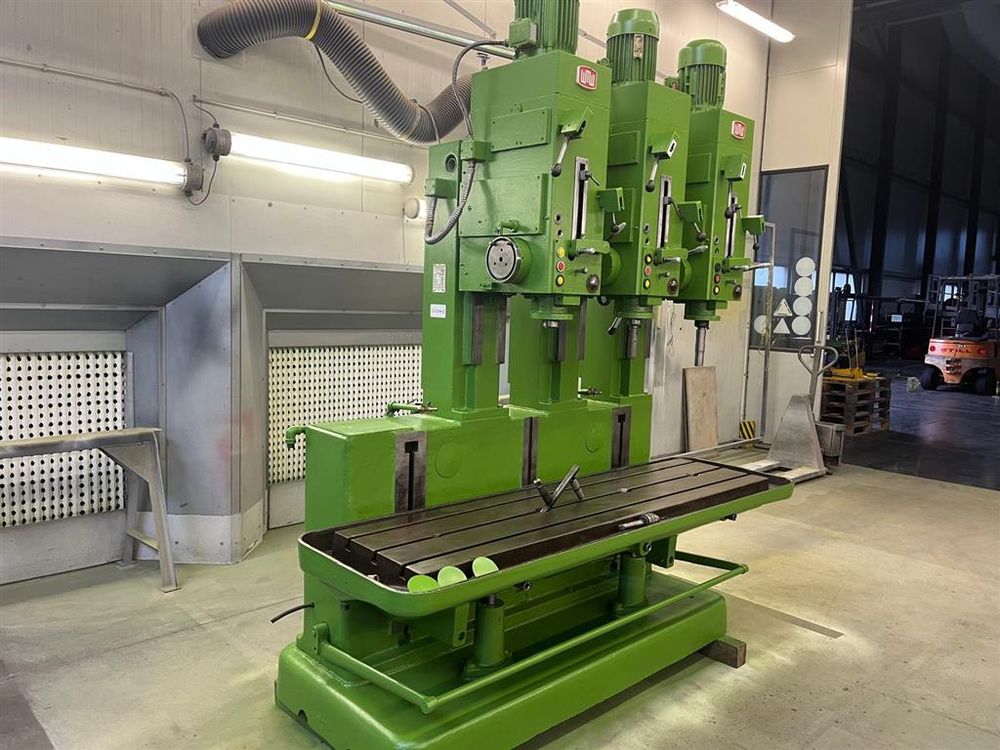

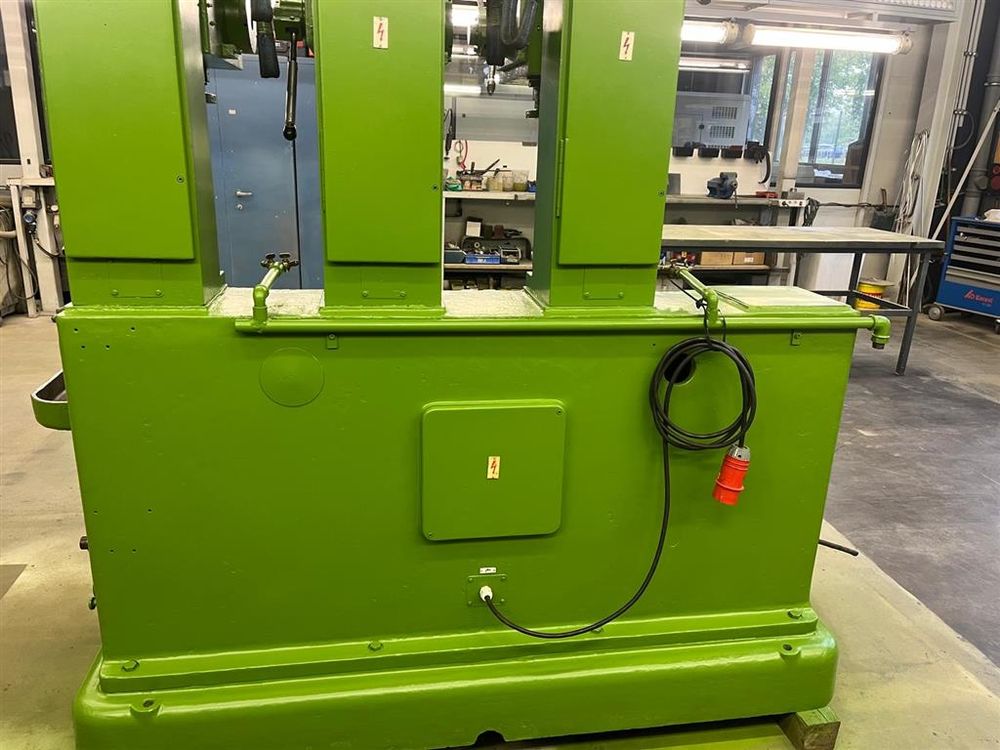

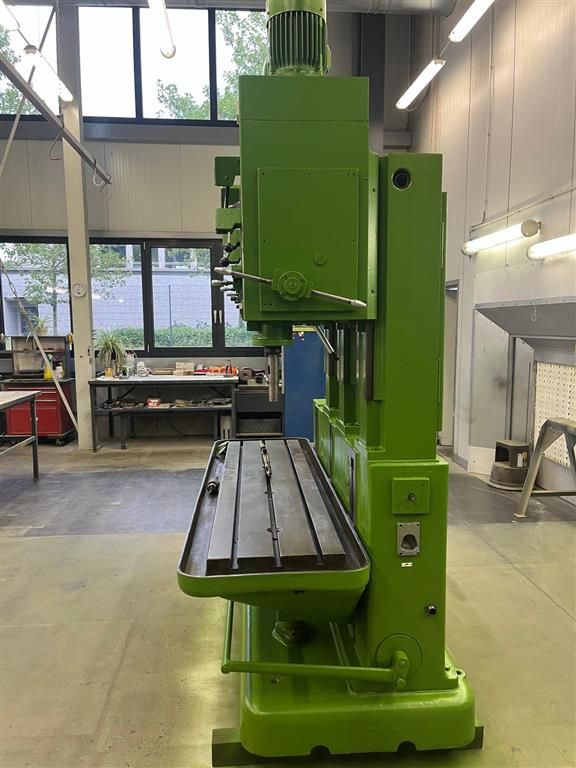

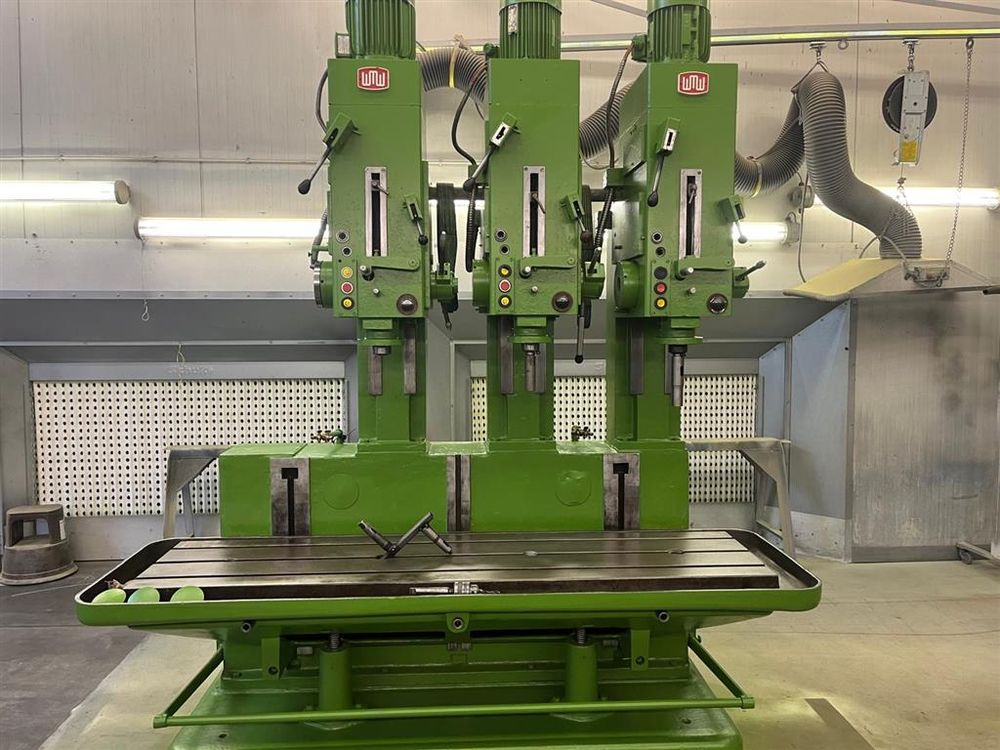

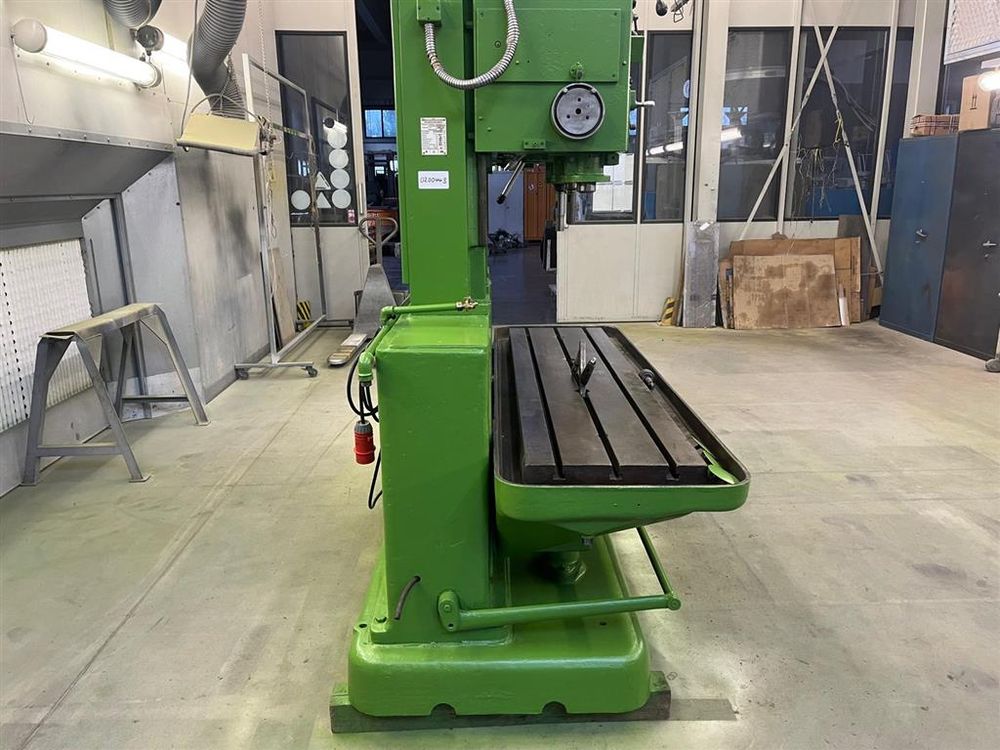

Fritz, Heckert BKR 32 x 4 AI 1000 rpm

Number of spindles 1000
Drilling capacity in steel 32 mm
Drilling capacity in cast iron 50 mm
Bore stroke 200 mm
Speed range 63–1000 rpm
Drill spindle taper MK4
Spindle throat 315 mm
Spindle distance 475 mm
Number of drilling stations 3
Headstock adjustment 280 mm
Feed 0.08–1.25 mm/U (9 steps)
Distance table to spindle 710 mm
Table surface 450 x 560 mm

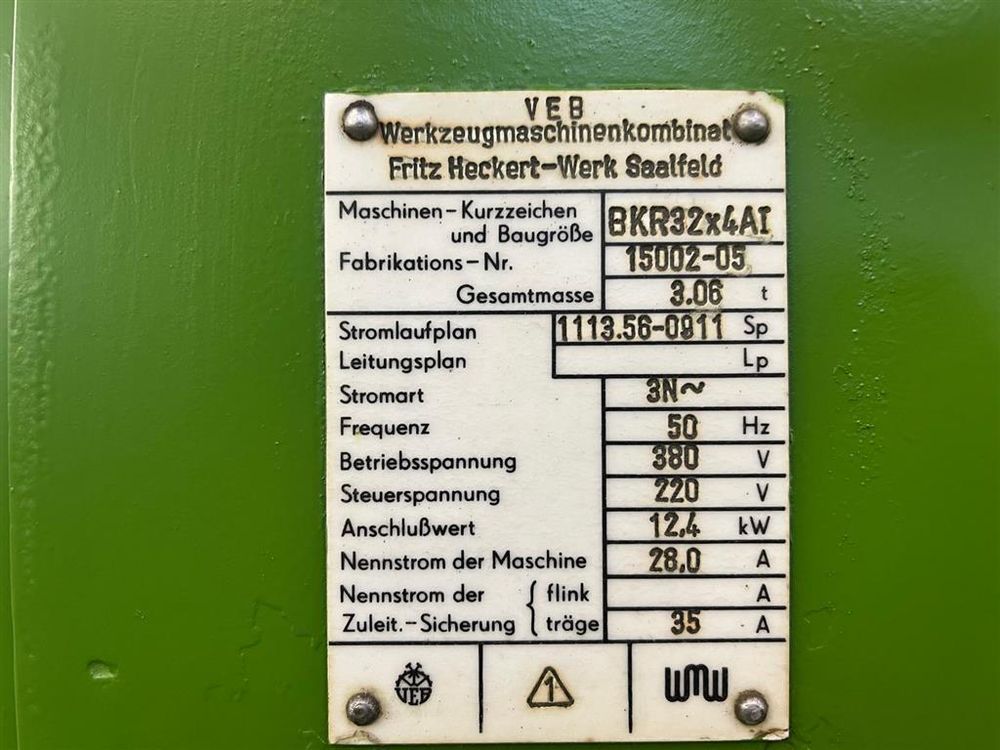

Total power requirement 12.4 kW
Machine weight approx. 3.1 t
Machine dimensions approx. 2.15 x 1.40 x 2.65 m

Equipped With:
Center distance of drilling spindle 490 mm
Thread cutting on drilling columns 3 and 4 with automatic switchover
All drilling spindles clockwise and counter-clockwise rotation
Spindle countershaft and variator
Coolant system
