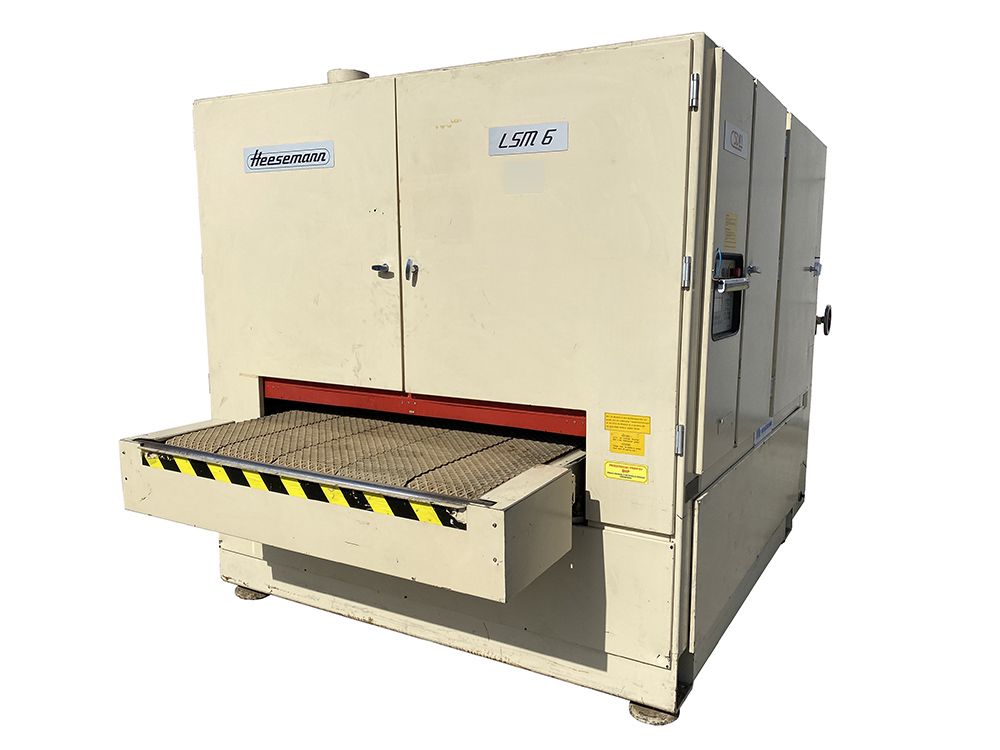

Heesemann 135 LSM 6

Wide Belt Sander, Varnish, Veneer/4
Sanding width: 1350 mm
Max. thickness: sanding elements 150 mm

MACHINE CONFIGURATION:
I- Cross-cut sergeant unit with electronic sequential pressure
Main motor 13 kW
Pneumatic oscillation with photocells
Extraction outlet 1 x 180 mm
Sanding belt size 5480 x 150 mm
II- Combi unit with sanding pad
Main motor 13 kW
Sanding belt cleaning system with oscillation
Pneumatic sanding pad with sanding pad
Pneumatic oscillation with photocells
Extraction outlet 1 x 180 mm
Sanding belt size 2620 x 1350 mm

PNEUMATIC OSCILLATION WITH PHOTOCELLS
Pneumatic strip system with oscillation for belt cleaning
III- Combi unit with sanding pad
Main motor 13 kW
System Sanding belt cleaning
Pneumatic pad with pressure
Extraction outlet dia. 1 x 180 mm
Sanding belt size 2620 x 1350 mm

IV- unit: cleaning brush for the element behind the main unit at the output
1.1 kW motor
Extraction outlet dia. 1 x 140 mm
Feed rate regulated by a gear motor, 4 kW motor
Feed speed 6 – 26 m/min
Air consumption approx. 28 m/sec, 4340 m3/h
Compressed air consumption: approximately 800 l/min
5-segment feed belt
Pneumatic feed belt cleaning system
Automatic sanding height adjustment with electronic display
0.55 kW motor
The machine is suitable for sanding paint and sanding between paint layers
Dimensions (L x W x H): 3750 x 3230 x 2300 mm
Weight: approximately 8000 kg
