Heesemann MFA8

Ref : 2399090-15-MT
Condition : Used
Manufacturer : Heesemann
Model : MFA8
Year(s) : 1995
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 21 Sep. 2022

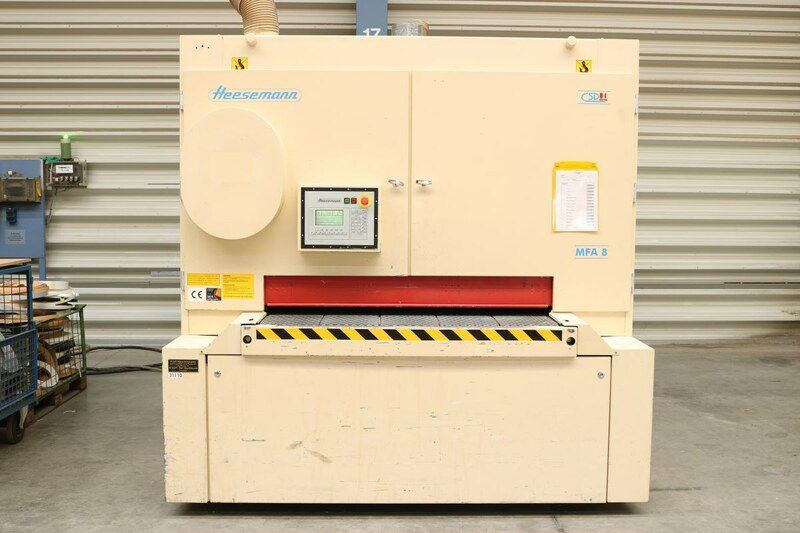

Wide belt sander
Working width 1,300 mm
Constant working height of 880 mm
Feed adjustable 5-25 m/min.
Graphic operating terminal
Additional program for sanding heavily warped cladding for round arches

Cross sanding unit
with sanding belt 4,800 x 150 mm
Belt speed 4, 12, 24 m/s
Drive power: 4.5 / 12/17 KW

Longitudinal sanding unit
With sanding belt 2,620 x 1,350 mm
Belt speed 10/20 m/s
Drive power 13/17 KW

Longitudinal sanding unit
With sanding belt 2,620 x 1,350 mm
Belt speed 1st stage: 0.5 - 10 m/s
2nd stage: 20 m/s
Drive power: 11/17 KW

3 x CSD pressure bars with stepless pressure adjustment, distance between the control rollers 16 mm,
with workpiece tolerance compensation up to at least 2 mm.
1 brush roller unit with motor 1.5 KW
1 workpiece blasting device with rotating air nozzles
Workpiece suction clamping system
