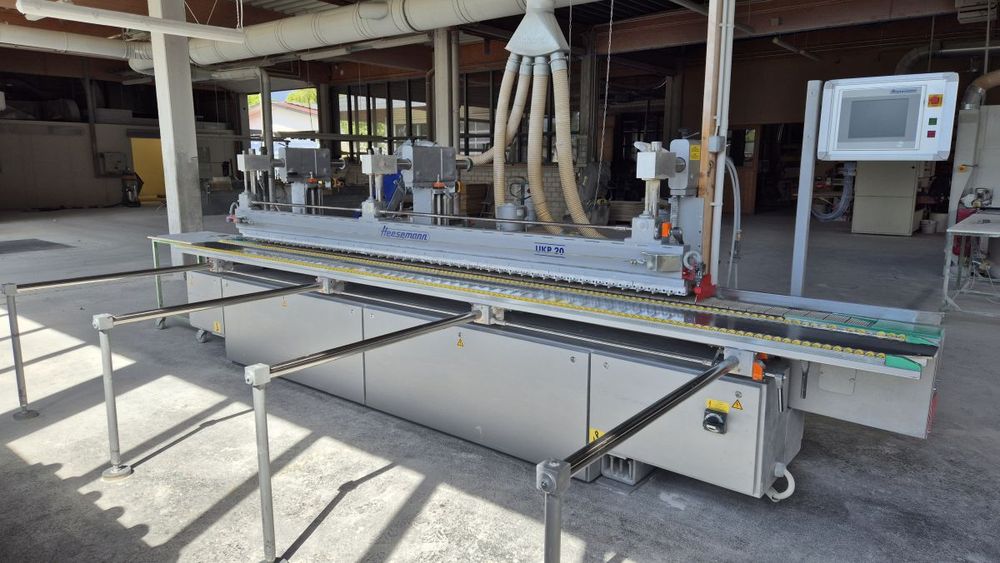

Heesemann UKP 20

Universal Edge and Profile Sander
Technical data :
Workpiece Conveyor System
- Total length: 5015 mm
- Driven by a 1.5 kW three-phase motor with a double chain for workpiece transport
- Feed speed in the range of 5-25 m/min, frequency-controlled
- Constant working height of 880 mm
- Includes integrated control cabinets
- Includes adjustable stop rail with digital display and counter rail with central width adjustment

4 side guide rollers between the sanding units for safe transport of strips
Industrial PC 10.4"
- LCD-TFT color display
- Touchscreen version
- With display for production and downtime
- With program memory for 100 programs

2 belt sanding units “M 4” Pos. 1 and 2
- For sanding straight edges
- Belt dimensions: 2300 x 80 mm
- Sanding belt speed: 0.7-12 m/s
- Motor power: 3.0 kW
- With electronic frequency control for stepless adjustment of the sanding belt speed
- Electronic sanding pressure control from the terminal

2 oscillation units for “M4” (Pos. 1+2)
For full utilization of the sanding belt

2 “K 4” belt sanding units (Pos. 3 and 4)
- For sanding small sections of profiles
- Can also be used for chamfering
- Swivels 90 degrees upward and 45 degrees downward
- Belt break switch
- Tool holder with quick-change mechanism
- Intermittent belt feed mechanism
- Belt dimensions: 2000x50 mm
- Sanding belt speed: 0.5-8 m/s
- Motor power: 1.1 kW
- Electronic frequency control for stepless adjustment of the sanding belt speed
- Electronic sanding pressure control from the terminal

4 electronic line controls
- for fully automatic timing of the sanding tool’s contact and lift-off based on
the set feed rate, sanding pressure, and unit angle setting
