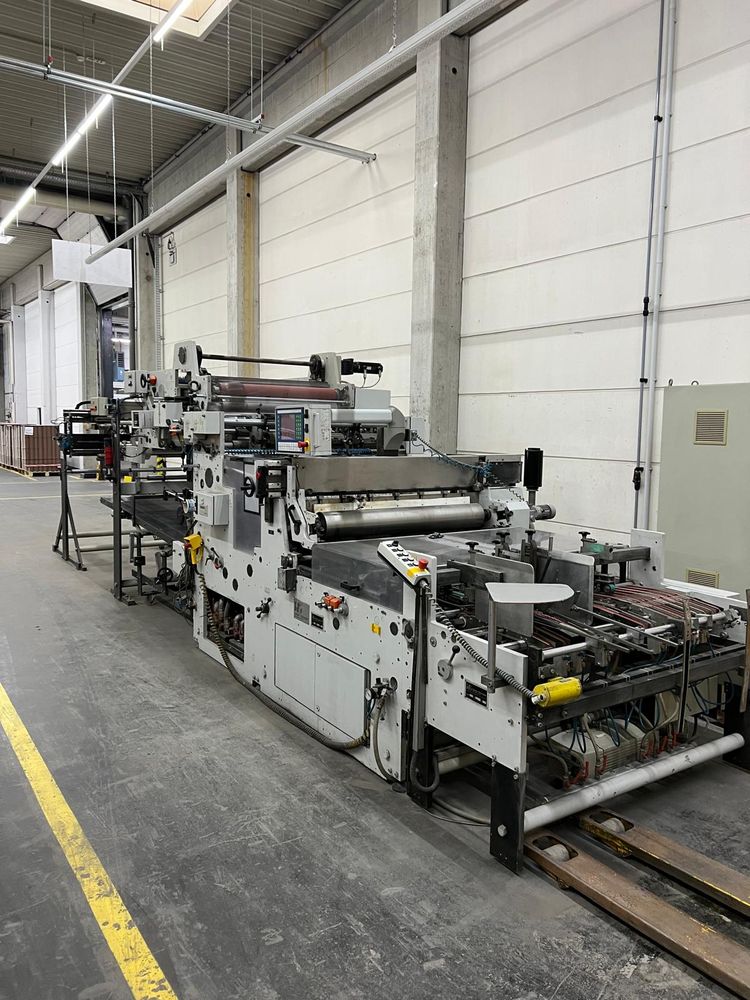

Heiber & Schroeder WP 1400 Matic

Window pasting machine
Single-lane operation:
Length A 100 mm - 1240 mm
Width B 80 mm - 1400 mm
Length of window/backing material C 60 mm - 720 mm
Width of window/backing material D 30 mm - 1140 mm

Double-lane operation:
Length A 100 mm - 1180 mm
Width B 80 mm - 660 mm
Length of window/backing material C 60 mm - 720 mm
Width of window/backing material D 30 mm - 530 mm

Special program for section lengths of 900 mm at production speeds of up to 30 pieces / minute
Cardboard 250 g/m2 - 800 g/m2
Corrugated board up to 5 mm thickness
Film material thickness 0.03 mm - 0.3 mm
Outer roll diameter max. 500 mm
Inner roll diameter 70- 80 mm
