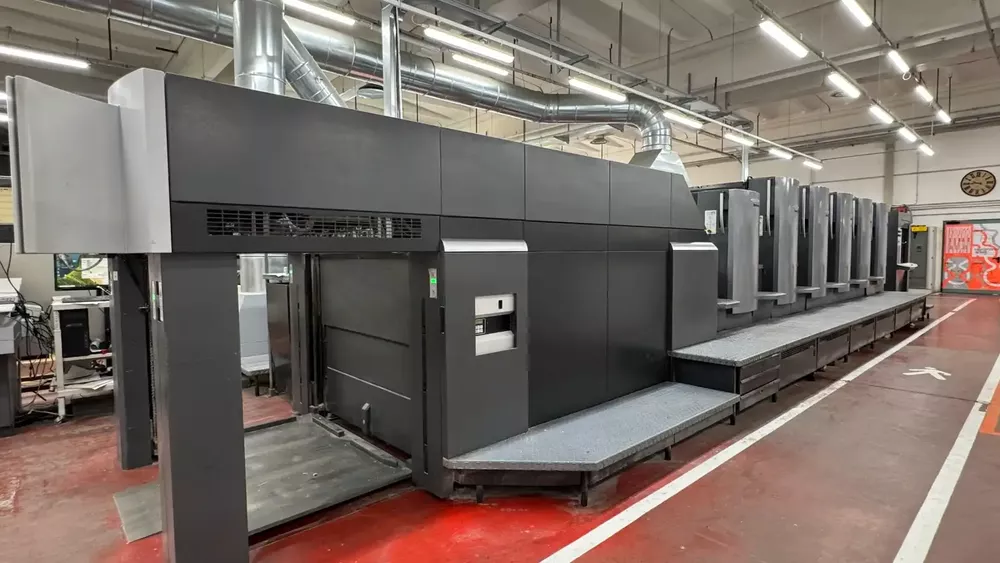

Heidelberg CD102-5 LX2 720 x 1020

Max sheet size 720 x 1020
Min sheet size 280 x 420
Max print size 710 x 1020
Material Thickness 0,030 / 1 mm
Plate size 770 x 1030

CP 2000 console touch screen, axial, circumferential and diagonal register remote control, ink ductors rotation control, job memorization
CP 2000 MasterLevel
CP 2000 console touch screen, axial, cirfumferential, diagonal register with flash memory
Control Station Computer upgradate to MC4

Feeder
Preset Plus Feeder
Head feeder 3 more suctions for paper transport
Front sensor on flap of the feeder
Slow down : system to slow the sheet down then 65% on feeder
Ultrasonic sensor double-sheet control
Suction belt feeder with 3 sections of transport of sheets to the frontal registers
Pneumatic side register control with integrated auto cleaning and double sheet control with direct system
Electronic side lays control
Ultrasonic double-sheet control
Multiple-sheet detector/ tear-off
Multiple sheet control/Forwarding roller
Double sheet detector - pulling device
No. 2 Eltex ion blowers on feeder

Printing Units
Air transfer System Venturi
Roller wash-up device controlled by CP 2000
Modular blanket cylinder washing device by CP 2000
Modular impression cylinder washing device by CP 2000
Autoplate
Alcolor damping
CombiStar CAN : Technotrans ink temp control combined with damping refrigeration + Alcosmart
Alcolor Vario System damping
CombiStar CAN : Technotrans ink temp control combined with damping refrigeration + Alcosmart; functions remote controlled by console
Wash Star : automatic cleaning of catch pans
Chromed blanket cylinders
Inking unit with remote distributor-roller adjustment

Varnishing units
Varnishing unit, with cooking register, Tresu chambered doctor blade system, with anilox roller

Delivery
Preset Plus Delivery : a lot of preset functions and memorization, aereodinamic grippers system, slow down system by CP2000, panel in delivery
X2 modular extended delivery no. 2 modules
DryStar 3000 Combination via CanOpen (Version 3 moduls) N.ro 1 slide-in IR dryer with Hot air knives + no. 1 slide-in dryer for hot air + 1 slide-in dryer for enviromental air
Non-Stop in delivery
Sheet slow-down device suction drum 9 mm
PowderStar Plus : Grafix Exactronic Plus powder spray

Peripherals:
AirStar : central air box air cooled
ScrollStar : Atlas Copco compressor

Various
15.000 speed/h
Intercom system: Microphone communication system
