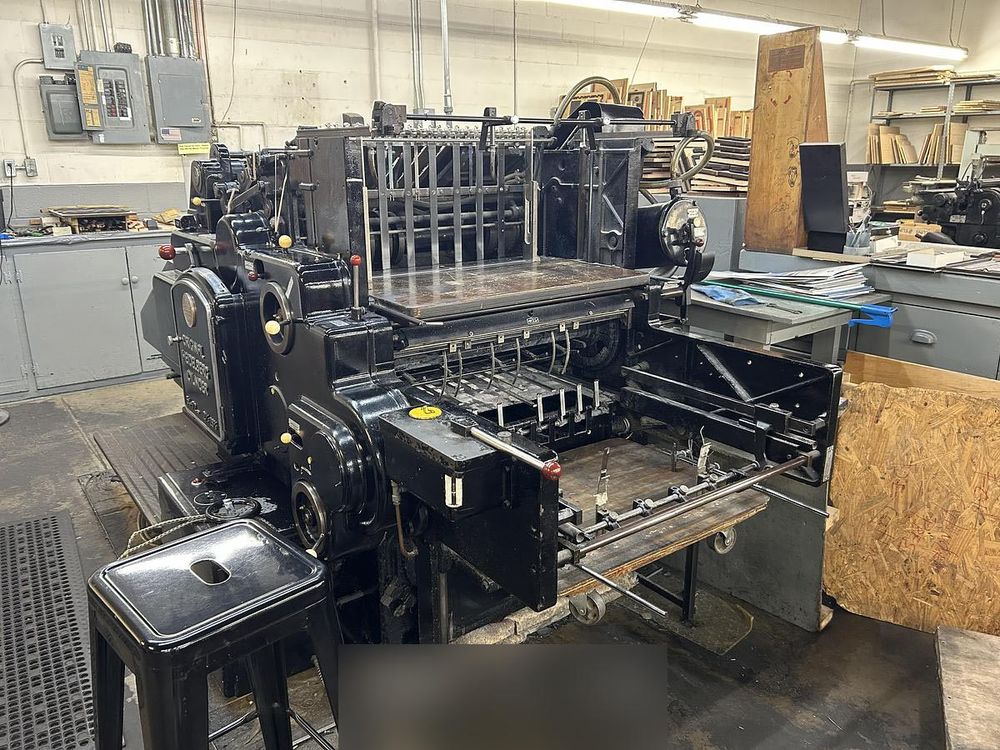

Heidelberg Cylinder Press

Maximum Sheet Size 21-1/4" x 28-3/8"
Minimum Sheet Size 4-1/2" x 6-3/8"
Inside Chase Measurements
Standard Chase 21-1/16" x 26-7/16"
Skeleton Chase 21-1/16" x 27-3/16"
Max Form In Std. Chase 20-1/4" x 26-3/8"
Max Form Between Bearers 20-1/4" x 27-3/16"
Gripper Margin 5/16" and 3/8"
Maximum Speed 4,000 iph
Power Requirements 240v 3 phase, 40 amp
Net Weight 10,950 lbs
Gross Weight 13,500 lbs
Overall Length 11' 2-1/4"
Overall Width 6' 3"
Height To Top Of Feeder 4' 9-1/8"
