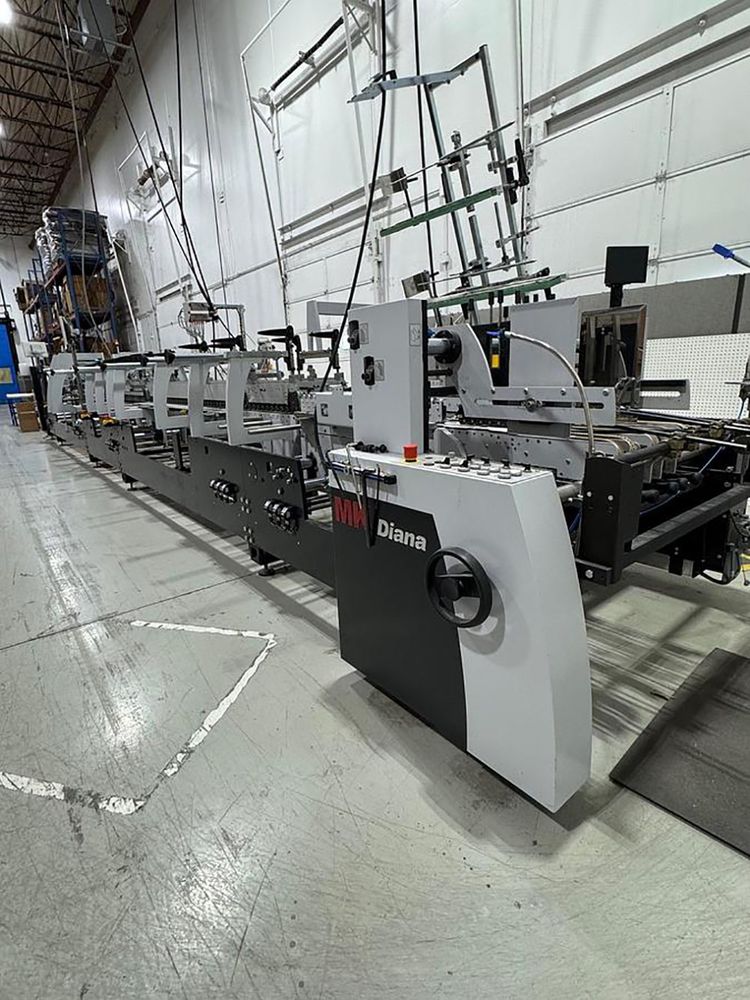

Heidelberg Diana Easy 115

Folder Gluer
Condition Used

* Maximum Speed 300 m/min
* Carton Length 55–600 mm
* Carton Width 45–1150 mm
* Folding Module 1,730 mm
* Folding Section 3,000 mm
* Transfer Section 1,400 mm

Key Features and Specifications:
Maximum Speed: 300 m/min
Vacuum-Assisted Feeder with two suction belts, plus two additional belts for improved blank control
Pile blowing device for enhanced blank separation and smooth feeding
Two cleaning brushes for feeding belts to ensure consistent blank alignment
Lower and upper central transport systems throughout the pre-fold, folding, and transfer sections for optimal precision
Tilting frame upper central transport for easy maintenance and setup
In-line ejector module in the transfer section
Electrical and mechanical interface for HHS glue system integration and ejector control
Soft rubber compression belt, 2400 mm, for consistent glue compression and smooth carton delivery

Attachments and Options:
Double-wall, partition, and conical carton attachments
Lock-bottom carton setup suitable for length-to-width ratios up to 1:15
Pocket fold attachments
Semi-automatic make-ready DIGIset system for faster changeovers
Feeder control monitor for blank transfer surveillance
HHS Glue System: 8-channel with 6 guns and sensors for precision gluing

Production Capabilities:
Substrates: Solid board (200–600 g/m²) and E-flute corrugated
Carton Length: 55–600 mm
Carton Width: 45–1150 mm
Pre-fold Section: 3,000 mm (prepared for HHS code reader)
Folding Module: 1,730 mm
Folding Section: 3,000 mm
Transfer Section: 1,400 mm
Compression & Delivery Section: 4,000 mm, belt width 600 mm
