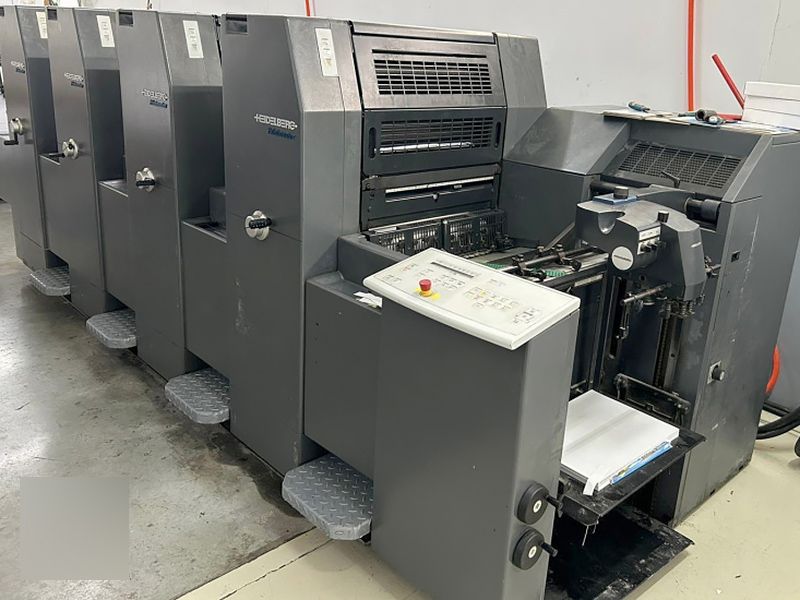

Heidelberg PM 52-4 370x520 mm

Max. sheet format 370x520 mm
Min. sheet format 105x145 mm
Printed material thickness 0.03-0.4 mm
Print speed up to 13,000 prints/hour
Feeder edge 8-10 mm
Feeder height 840 mm
Delivery height 460 mm
Overall dimensions 4'54'x2'200x1'620 mm
Net weight 4'800 kg

Equipment:
feeder head with two suction cups
one central vacuum belt
ultrasonic and electromechanical double-sheet sensors
sheet arrival control
remote adjustment of the front and side stops, Alcolor
direct film dampening system with a circulation device
cooling and Baldwin alcohol stabilizer
18-roller inking unit, inking boxes with lever adjustment of inking zones, laser-cut inking knives
EasyPlate semi-automatic plate changer
automatic positioning of the cylinder in the plate change position, programmable wash-up device for offset cylinders (towels)
PressControl panelwith remote adjustment of longitudinal
Ttransverse and diagonal register, manual pressure adjustment (from the service side), "plus" version,
standard (low) delivery, anti-set-off powder sprayer, documentation, including electrical diagrams
30 million impressions
