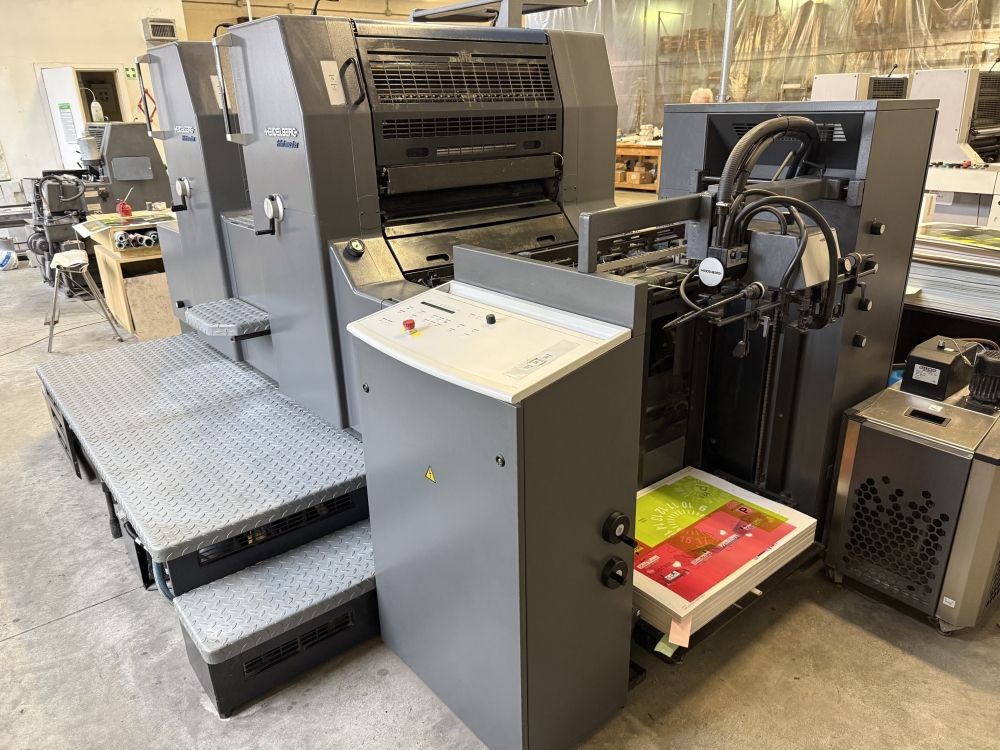

Heidelberg PM74-2P 530 x 740 mm

13 mio impressions!!
Offset sheet feed - 2 colours
Perfecting 2-0/1-1
Low pile delivery

Caratteristiche tecniche:
Speed 12.000 copie/h
Paper size max 530 x 740 mm
Paper size min 210 x 280 mm (straight) - 300 x 280 mm (perfecting)
Thickness 0,03-0,6 mm
Print size max 510 x 740 mm
Plate size 605 x 745 mm Thickness 0,30 mm
Blancket size 772 x 616 mm Thickness 1,95 mm (without metal edge)
Dimensions:
L. 3,6 mt.
P. 2,4 mt.
H. 2,1 mt.
Power Kw 26 circa
Weight 8.500 Kg. circa

Accessories included:
- 2 feeder boards, 2 delivery trolleys
- Suction-tape feeder table
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic
- Alcolor continuous dampening with Baldwin's alcohol metering; cooling and re-circulation unit system
- Soft touch buttons edition
- Programmable automatic blanket cylinders wash up
- Programmable automatic impression cylinders wash up
- Easy Plate plate loading (Quick action plate clamps)
- Plate cocking manual (diagonal register control)
- Powder sprayer device
- Low pile
- Sheet de-curler
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories
