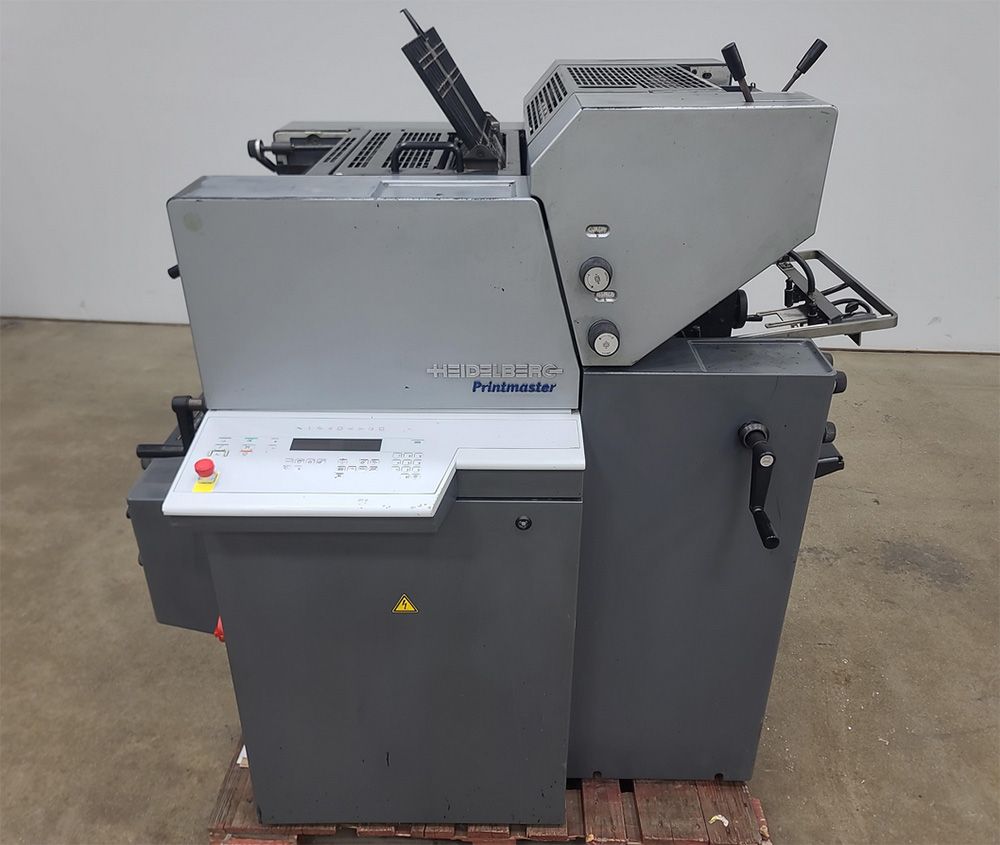

Heidelberg Printmaster QM 46-2 460 x 340 mm

Two Color Printing Press
Included Components :
Autoplate plate changer with integrated register system
Automatic blanket wash-up device
Washup device for inking and dampening system
Alcohol-free direct continuous dampening system
Plate puncher

Features :
Two-color offset printing configuration
Microprocessor-controlled operation
Electronic sheet travel monitoring system
Circumferential, lateral, and diagonal register adjustment
Laser-slit knife-type ink fountain for rapid ink profile setup
Bearer-to-bearer pressure system with helical gearing

Applications :
Commercial print production
Brochures and marketing materials
Letterhead and stationery printing
Business forms and documents
Short- and medium-run offset printing

Specifications :
Printing Colors: 2
Maximum Sheet Size: 460 x 340 mm
Minimum Sheet Size: 140 x 89 mm
Maximum Printing Area: 453 x 330 mm
Paper Thickness Range: 0.04 mm to 0.30 mm
Printing Plate Size: 505 x 340 mm
Plate Thickness: 0.10 mm to 0.20 mm
Gripper Margin: 7 mm
Maximum Speed: 10,000 Sheets per Hour
Feeder Pile Height: 490 mm
Delivery Pile Height: 540 mm
Power Requirement: 3 kW
Dimensions (L x W x H): 150 x 127 x 153 cm
Net Weight: 1,030 kg
