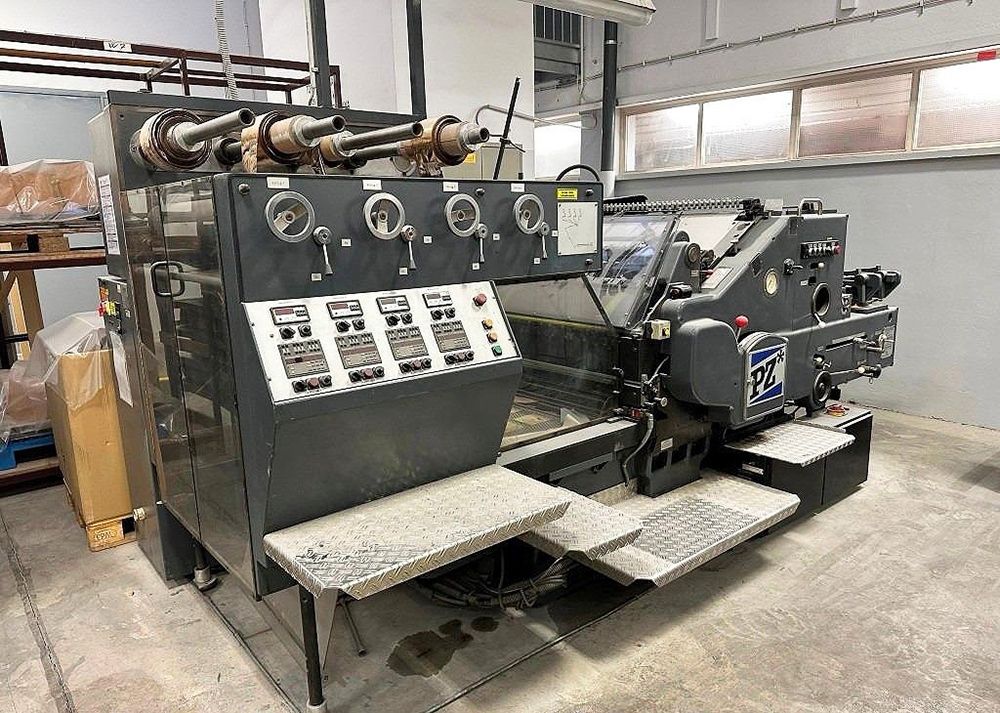

Heidelberg SBD Steuer 90 PZ

Hot foil embossing cylinder
Sheet format:
- max. 64 x 90 cm
- min. 29 x 45 cm
Embossing area: - approx. 54 x 82 cm
Heating zones: - 4 individually controllable heating zones
Honeycomb panels: - 3 Honeycomb panels:
Advances: - 4 controlled film advances
Films:
- Film roll width: max. 840 mm
- Film length: for standard rolls (typically ranging from 20 to 800 m)
Condition: How it stands and goes
Feeder: approx. 340 mm stack height
Delivery: approx. 510 mm stack height
Speed: Up to 3,600 sheets per hour
Length: approx. 3.86 m to 4.67 m
Width: approx. 2.45 m to 2.54 m (without pre-stacking)
Height: approx. 1.95 m
Weight: approx. 7,000 kg to 7,700 kg (net weight without sheet stack)
Power supply: This machine is connected to 380 V, 50 Hz.
Power input: approx. 25 kW to 28 kW
Important: Connection requirements of any power utility note!
