Heidelberg SM 102 6+L 28 x 40"
ASIA (South)

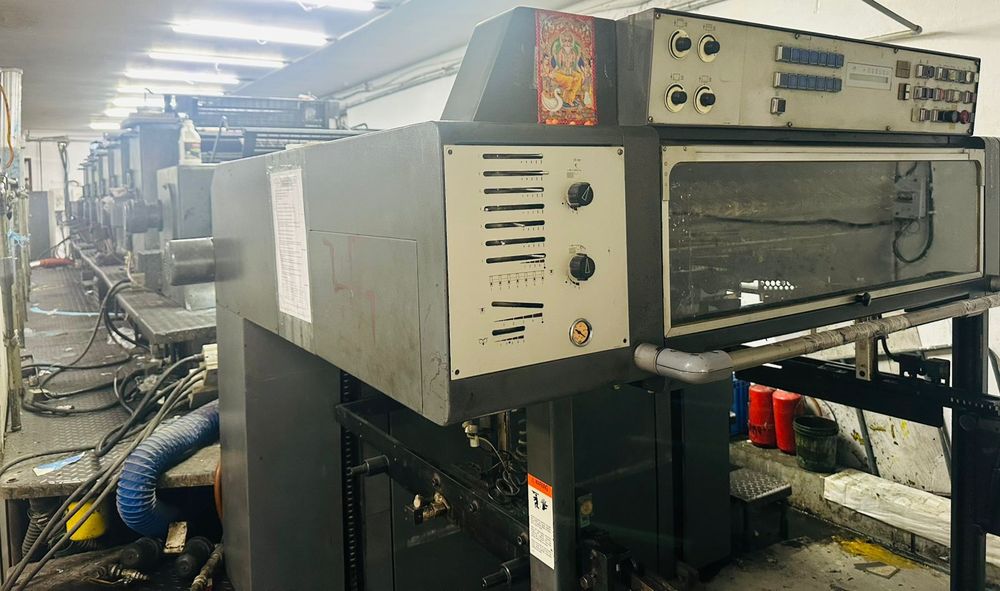

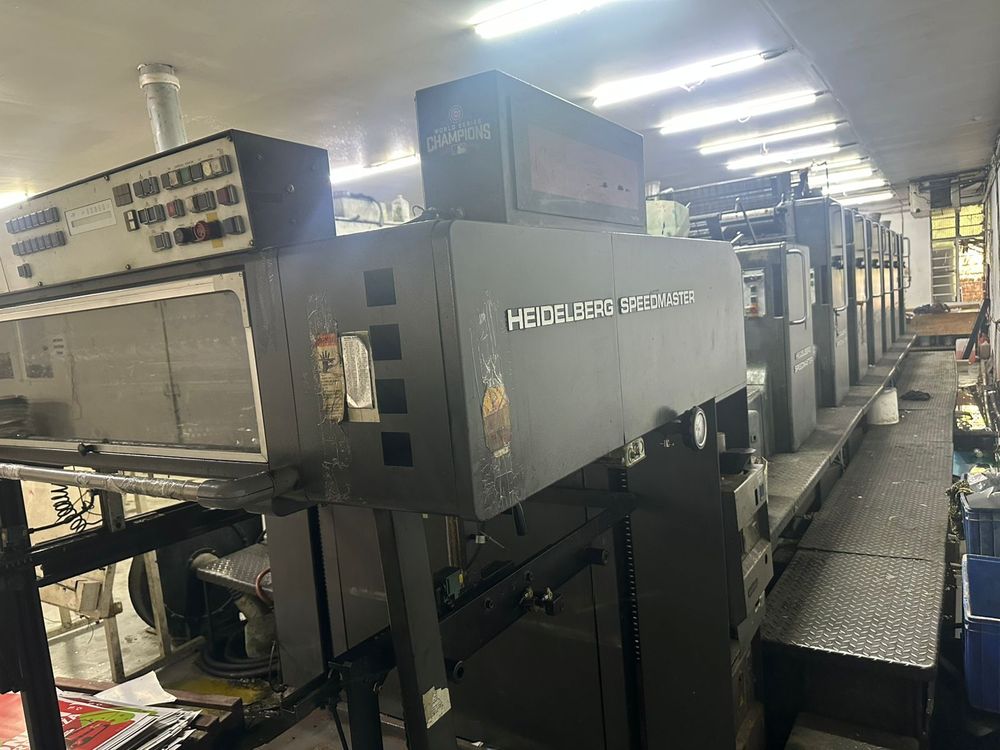

The Heidelberg Speedmaster SM 102-6+L from 1994 is a 6-color straight offset press with an inline coating unit. Built for high-volume commercial and packaging printing, it combines advanced (for its era) automation with a max mechanical speed of 13,000 sheets per hour.
Core Technical Specifications Configuration: 6 Printing Units + 1 Coating Unit (Straight, no perfecting)Max Sheet Size: 720 mm × 1020 mm (approx. 28" x 40")Min Sheet Size: 280 mm × 420 mm (Straight)Max Print Area: 700 mm × 1020 mm Stock Thickness Range: 0.03 mm up to 0.8 mm Max Mechanical Speed: 13,000 sheets per hour (SPH)
Key Mechanical & Automation Features Dampening: Alcolor dampening systems with continuous alcohol/water control Console & Controls: CPC (Computer Print Control) and CP Tronic remote control systems Plate Changing: Semi-automatic or conventional clamp systems depending on the exact sub-model Coating: Equipped with a dedicated varnish/coating unit and extended delivery to support inline aqueous or UV applications
Approximate Physical Foot print Length: Approx. 11,090 mm (varies based on specific delivery configurations)Width: Approx. 3,310 mm Height: Approx. 2,170 mm Weight: Approx. 36,910 kg (varies by unit count and peripheral equipment
