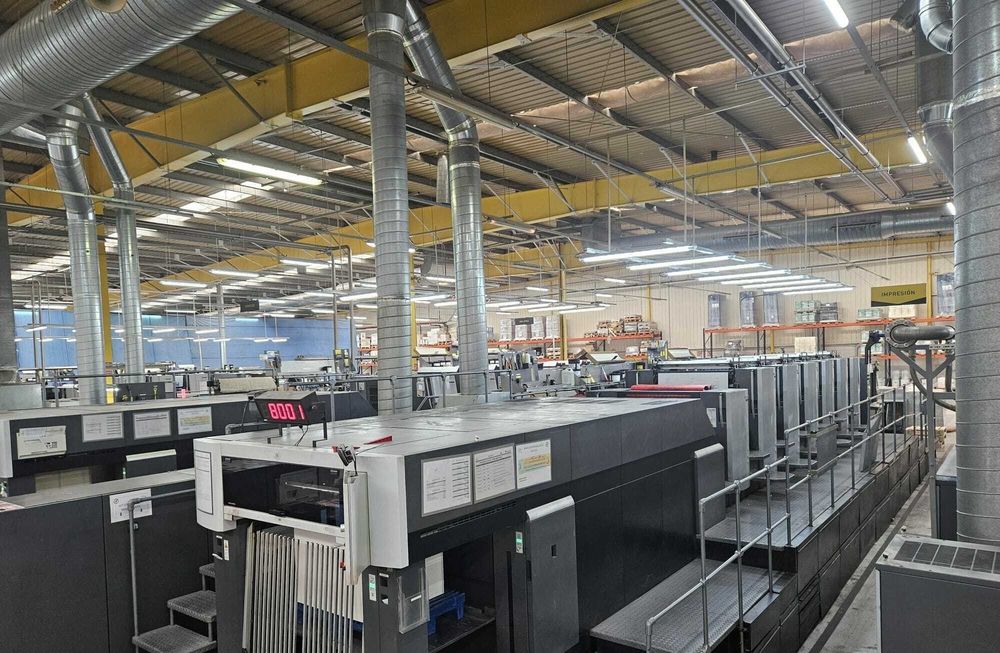

Heidelberg SM CX 102-6+LX 720x1020 mm

Max. paper size: 720x1020 mm
Smallest size: 280x420 mm
Image area: 710x1020 mm
Speed: 16.500 sh/h
Power consumption: 80 kw
Length: 14310 mm
Width: 3310 mm
Height: 2145 mm
Weight approx.: 52230 kg
Blanket size: 840x1042 mm
Colors: 6
Full UV Configuration
Alcolor Vario dampening
Prinect Press Center
Autoplate (Semi automatic plate change )
CombiStar CANopen : Technotrans ink temp control combined with damping refrigeration + Alcosmart
Varnish Supply unit 550 l/h
Coating Star Compact
Automatic blanket, roller and impression-cylinder washing device
Foil package for plus feeder and delivery
Preset Plus in feeder
Preset Plus in delivery
Non Stop in the feeder
Intercom to deliveryDouble sheet control - mechanic
Ultrasonic double sheet detectionmultiple sheet detector
Rear edge blowersrear edge suction
Extended 3 Módules (X3)
CleanStar Preset
Elevated Machine
AirStar Pro (Air-cooled)
Coating unit with chambered doctor blade
Intercommunication system between infeed and delivery
IPA reduced printing package
Steel Plate feeder and delivery
UV package Coating Unit
UV Interdeck I.S.T. UV lamp (x3) movable all positions
I.S.T. UV End of press UV final 3 lamps
