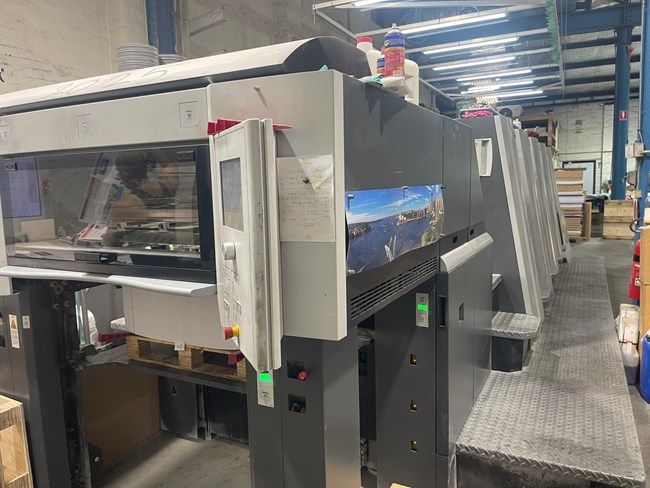

Heidelberg SM XL 75-5 C 750x530

Impression: 92 Million only

*Equipped with:*-
Sheetfed Control ™? system
Modern patented press control system based on a new platform with decentralized drive control for the feeder, printing units and delivery.
The control information is exchanged via CAN bus technology.
Prinect Press Center ™? with remote ink control

Prinect Press Center™? Control Console
High-quality 19" TFT touch screen
Freely movable and with adjustable inclination due to suspension from a bracket
Color display of graphics, symbols and text
• Intuitive operation by touching the screen
Effective protection against dust and water (class IP54)

Prinect Press Center™? Software
Preset Plus Feeder
Preset suction tape feeder
F e e d e r with 10.4" touch s c r e e n

• AutoPlate with Heidelberg register system; automatic plate changing system with pneumatic plate clamping device not requiring any tools
• Double diameter impression cylinder
• Plate cylinder with 0.15 mm undercut
• Blanket cylinder with 2.3 mm undercut, designed for mounting pre-barred blankets
• Plate cylinders, blanket cylinders and impression cylinders are provided with refined cylinder surfaces.
These surfaces are corrosion and wear resistant and easy to clean.
• Manual, selective register correction of printing plate in all directions at rear edge split clamping bar
• Auto adjustment of plate dampening roller, inking rollers during diagonal adjustment of plate cylinder
• Preset blowing device at sheet infeed between blanket and impression cylinder assures a smooth
and stable sheet travel at higher production speeds especially on thin material
• Automatic blanket wash-up devices, program-controlled via Prinect Press Center ™? (for conventional inks or mixed operation)
• Modular wash-up concept with user-friendly cloth roll change, low consumption of washing solution and optimal use of cloth via partial rewinding mechanism
• Clamping bar for underlay sheet
• Double-diameter transfer between the printing units
