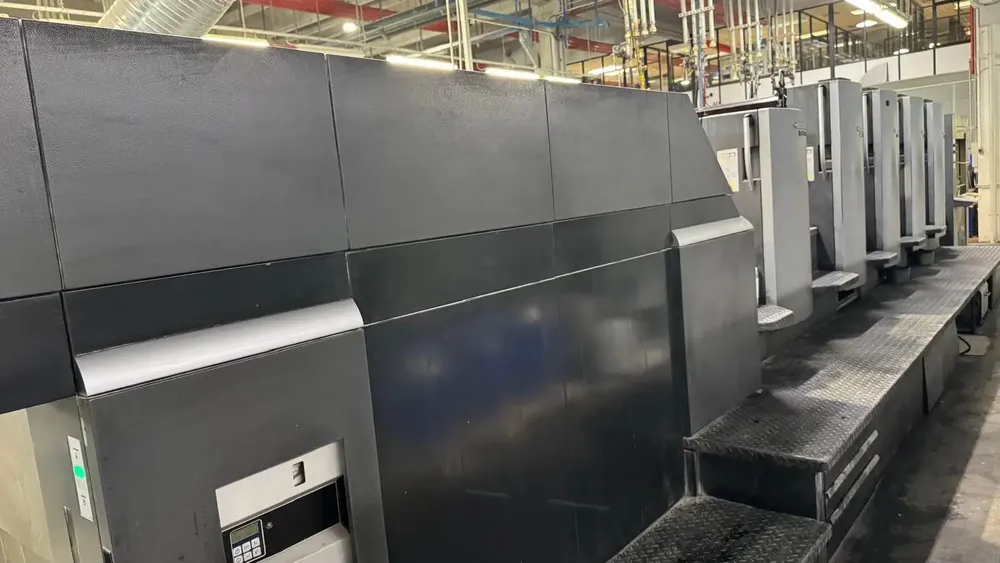

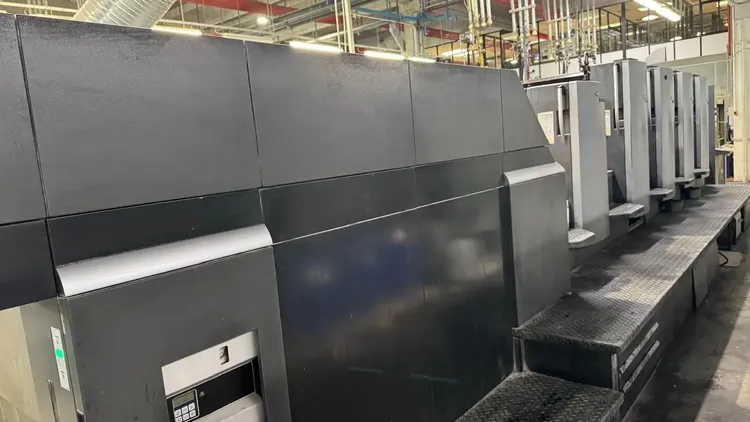

Heidelberg SM102-4 P3 + LX2 720 x 1020

Max sheet size 720 x 1020
Min sheet size 280 x 240 (400 x 420 with Perfecting)
Max print size 710 x 1020
Material Thickness 0,03 / 0,8 mm - (0,6 mm perfecting)
Plate size 770 x 1030 (790 x 1030 Autoplate)

Machine:
Intercom system : microphone communication system

Console:
CP 2000 console touch screen, axial, circumferential and diagonal register remote control, ink ductors rotation control, job memorization
CP 2000 MasterLevel
CP 2000 Instant Gate
CP 2000 Tandem Wash : impression cylinder washing device by CP 2000

Feeder:
Preset Plus Feeder
Head feeder 3 more suctions for paper transport
Front sensor on flap of the feeder
Slow down : system to slow the sheet down then 65% on feeder
Multiple-sheet detector/ tear-off
Multiple sheet control/Forwarding roller
Rear edge blowers on feeder
Eltex antistatic on delivery
Electro mechanic shingle control
Ultrasonic sensor double-sheet control
Suction belt feeder with 3 sections of transport of sheets to the frontal registers
Pneumatic side register control with integrated auto cleaning and double sheet control with direct system
No. 2 Eltex ion blowers on feeder
Eltex antistatic on feeder

Printing Units:
Roller wash-up device controlled by CP 2000
Modular blanket cylinder washing device by CP 2000
Autoplate
Alcolor Vario System damping
CombiStar : Technotrans ink temp control combined with damping refrigeration + Alcosmart
Inking unit with remote distributor-roller adjustment
WashStar : automatic cleaning of catch pans
4/0 ; 2/2 Semi-automatic Perfecting

Varnishing units
Varnishing unit, with cooking register, Tresu chambered doctor blade system, with anilox roller

Delivery
Sheed guidance guide plate cooled
Preset Plus Delivery : a lot of preset functions and memorization, aereodinamic grippers system,
slow down system by CP 2000, panel in delivery
PowderStar Duo Plus : Grafix Exactronic Duo Plus
Eltex antistatic in delivery
Sheet slow-down device O-ring brake

Peripherals
ScrollStar : Atlas Copco compressor
AirStar Pro : central air box air cooled
