Heidelberg SM102-6P3LX 72x102

HEIDELBERG SM102-6P3LX 2006
Machine no. 547.496
Approx. 119 mill. impressions!!
Sheet-fed offset press - Printing units: 6+Lack
Perfecting 2/4 - 6/0

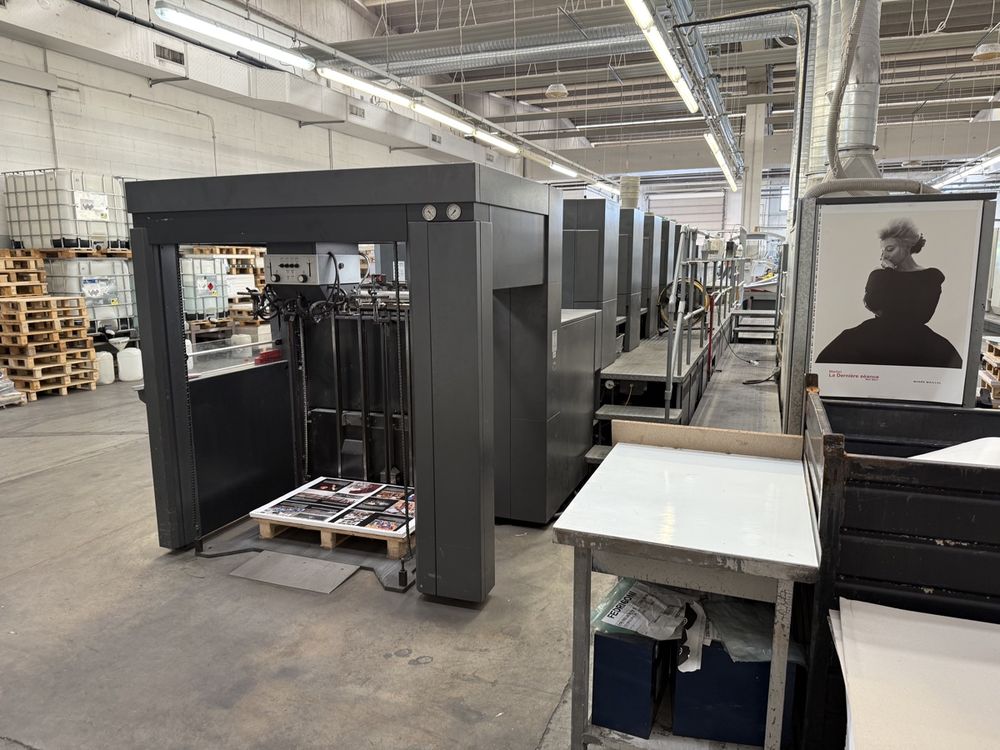

High pile delivery
Size 28 x 40 inch (720 x 1030 mm)
Technical features: x
Speed 15.000 sheet/h
Max paper size 720 x 1020 mm
Min paper size 280 x 420 mm
Thickness 0,04-0,6 mm
Print area 700 x 1020 mm
Plate 790 x 1030 mm Thickness 0,30 mm
Blancket 1045 x 790 mm Thickness 1,90 mm
Dimensions:
L. 16,2 mt.
P. 3,0 mt.
H. 2,1 mt.
Power Kw 00 (without dryer)
Weight 49.000 Kg.circa
Accessories included:
- Fully equipped
- Steel plate on feeder and delivery with ramp (for plastic or wooden pallets)

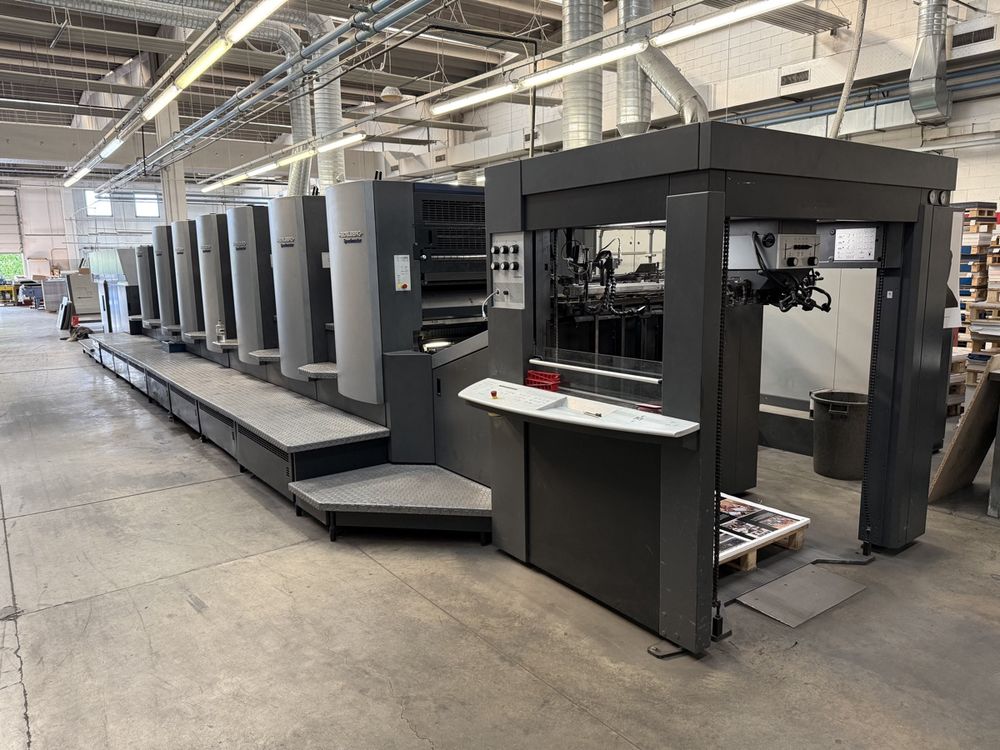

- Stream feeder with belt
- Electronic double sheet detectionX
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic
- Anti-static on feeder and delivery
- Alcolor continuous dampening system with Technotrans's alcohol metering; cooling and re-circulation unit system
- Preset (autom. paper size and thickness setting)

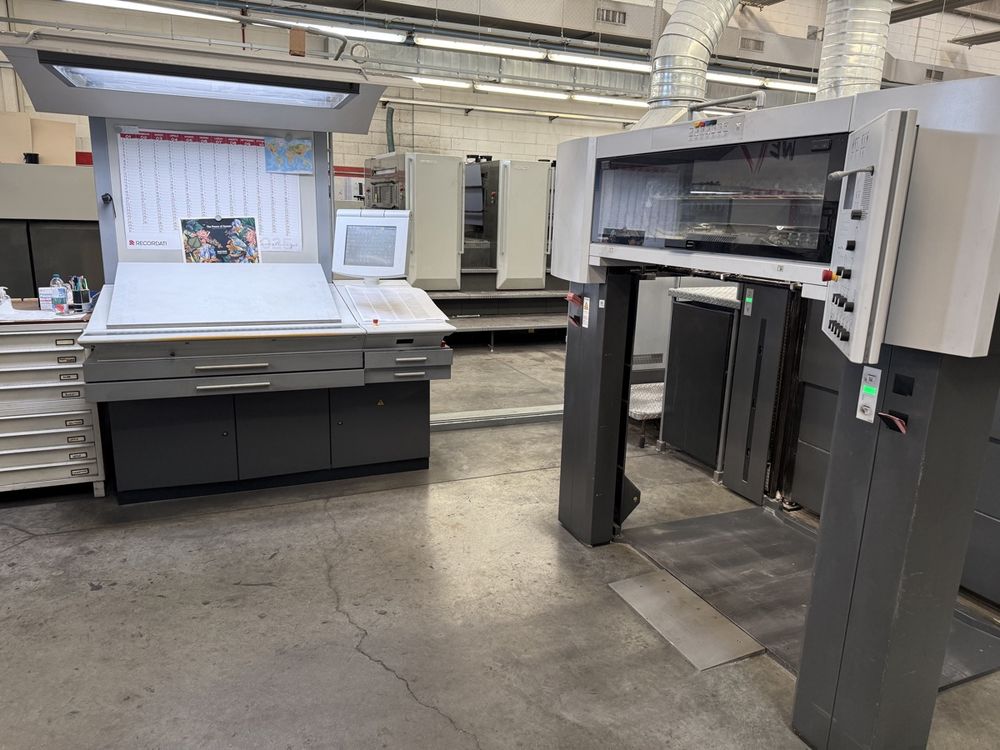

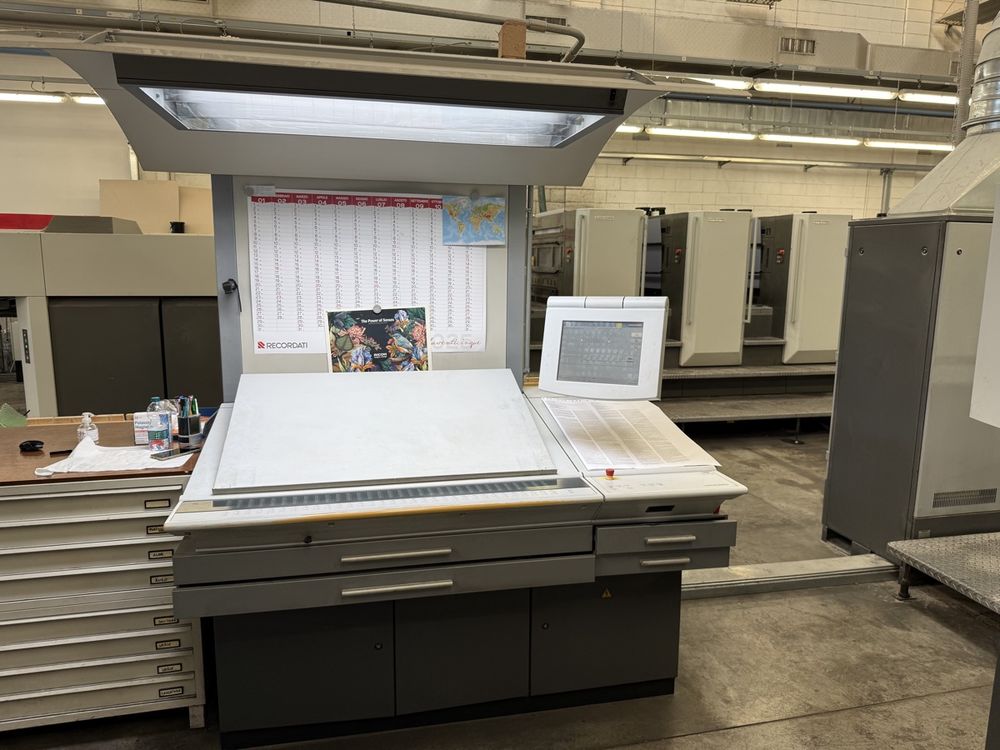

- CP 2000 Machine control and diagnosis by plasma monitor console /self diagnostic, control and monitor console; remote inking; dampening; axial, circumferential and diagonal register control with light pen; day light illuminator and memory card for job memories)
- Programmable automatic blanket cylinders wash up via CP 2000
- Programmable automatic rollers wash up via CP 2000
- Autoplate (semi automatic plate loader) with Bacher Control 2000 register system
- cylinders chromed
- Lack unit with anilox system

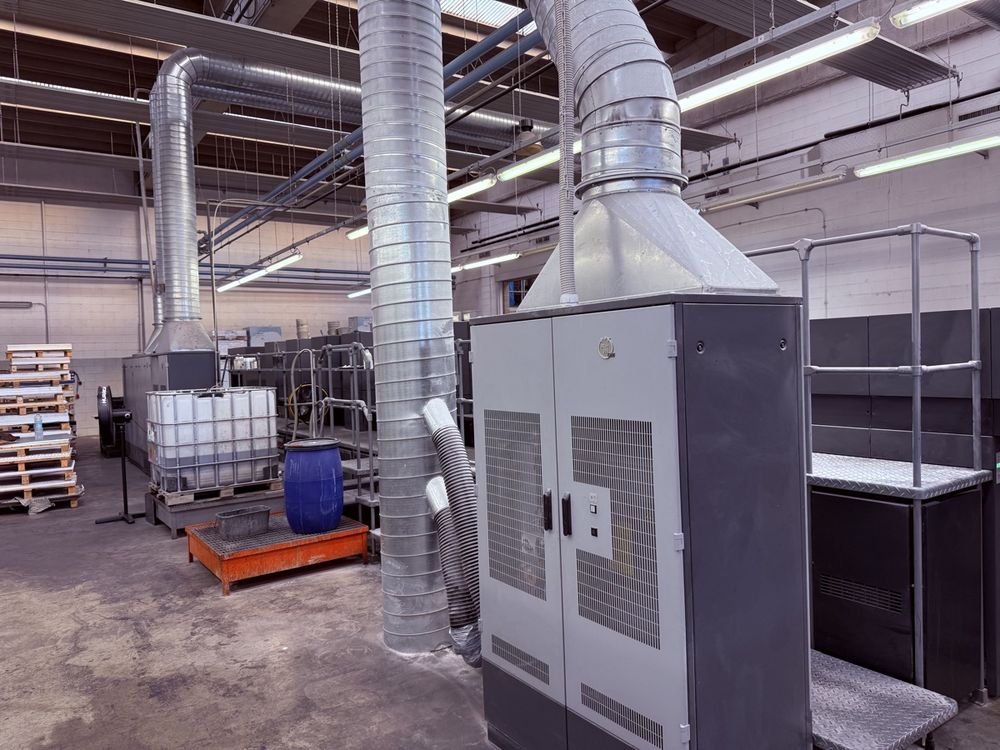

- IR dryer
- Powder sprayer device

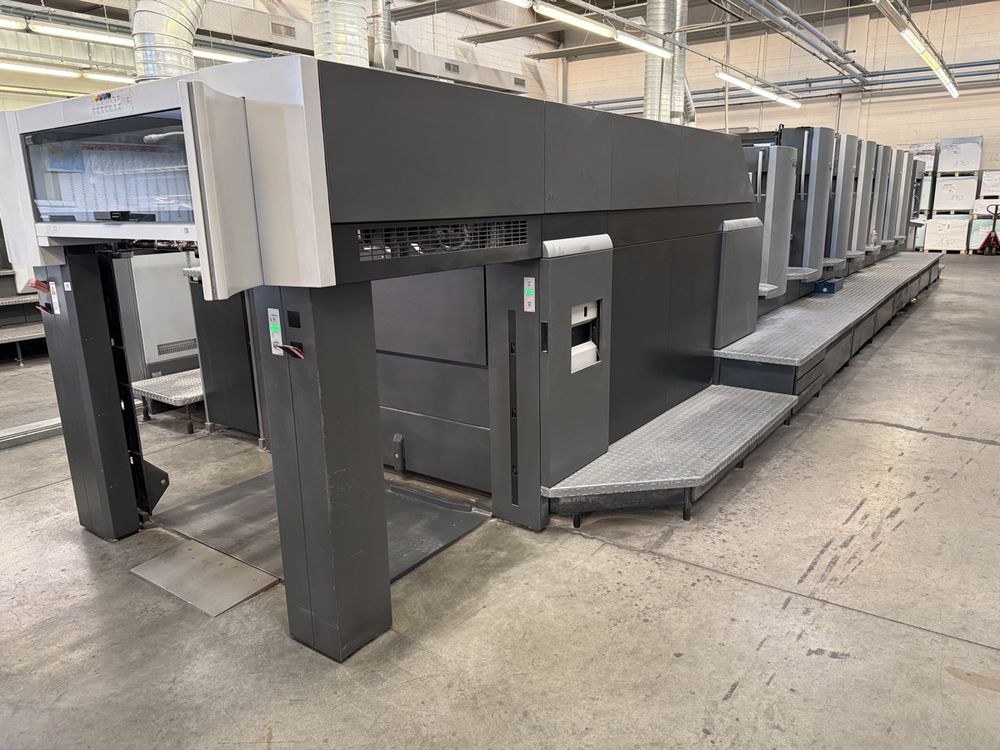

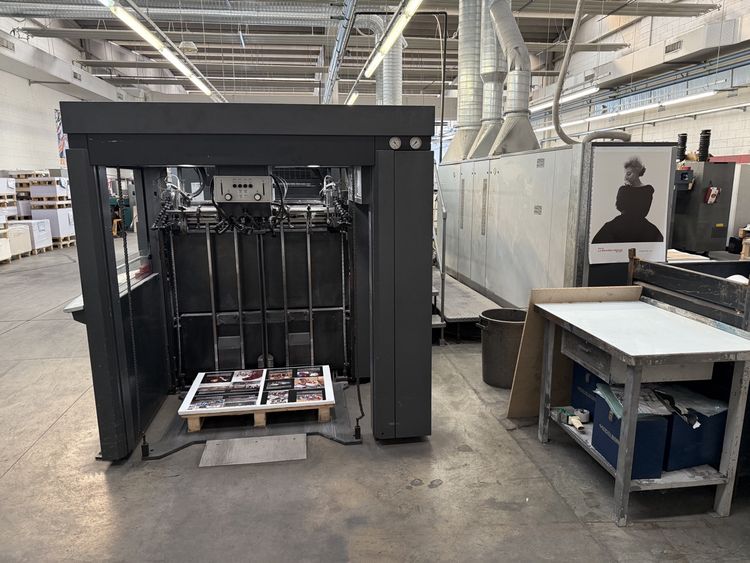

- High pile delivery
- Automatic sheet de-curler
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories

Availability: Immediately
Machine conditions: "as is" with no damage on cylinders and gears.
Machine can be inspected in production, nearest airport Milan, North Italy

All machines are offered in Euros and are subject remaining unsold.
For further information don’t hesitate to contact us
