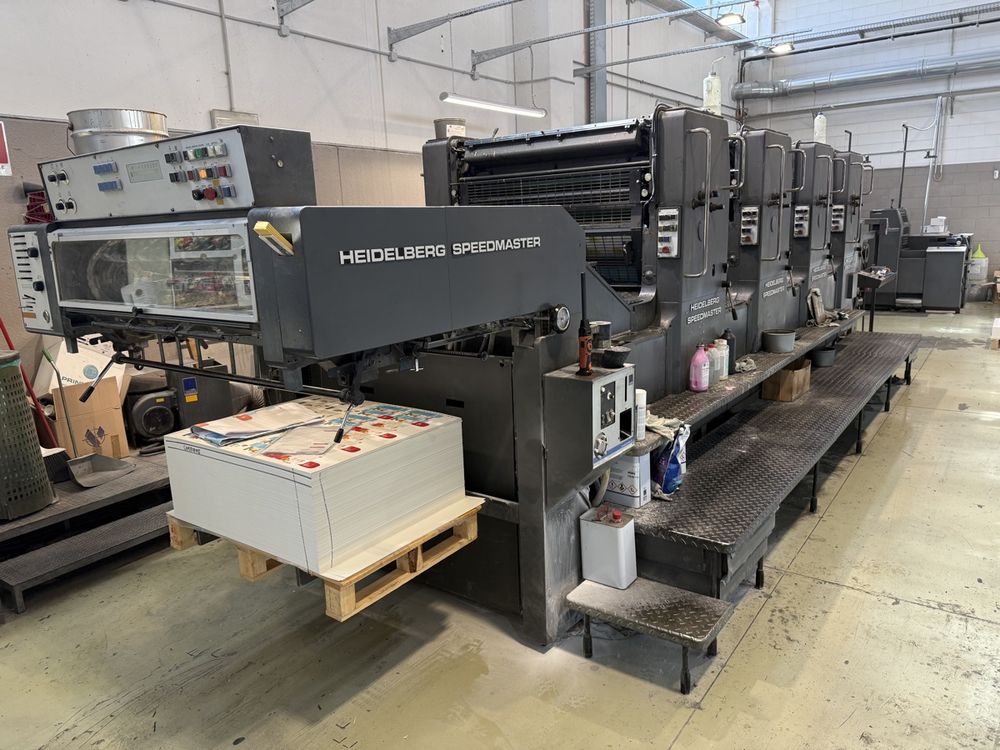

Heidelberg SM102V 72x102

HEIDELBERG SM102V 1989
Machine no. 528.522

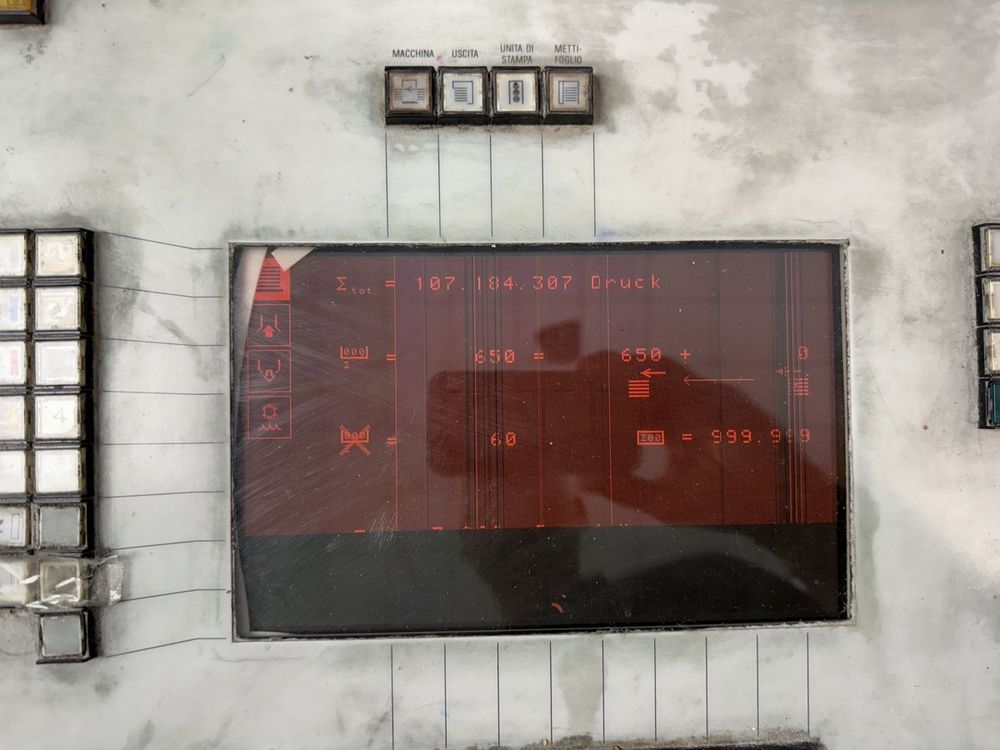

Impression count: 107 mio
Sheet-fed offset press - Printing units: 4
Straight machine
High pile delivery
Size 28 x 40 inch (720 x 1030 mm)
Technical features:
Speed 13.000 sheet/h
Max paper size 720 x 1020 mm
Min paper size 280 x 420 mm
Spessori 0,04-0,4 mm
Print area 700 x 1020 mm
Plate 770 x 1030 mm thichness 0,30 mm
Blancket 1045 x 790 mm thichness 1,90 mm
Dimensions:
L. 8,7 mt.
P. 3,0 mt.
H. 2,3 mt.
Power Kw 71
Weight 27.360 Kg.circa
Accessories included:
- Fully equipped
- Steel plate on feeder and delivery with ramp (for plastic or wooden pallets)

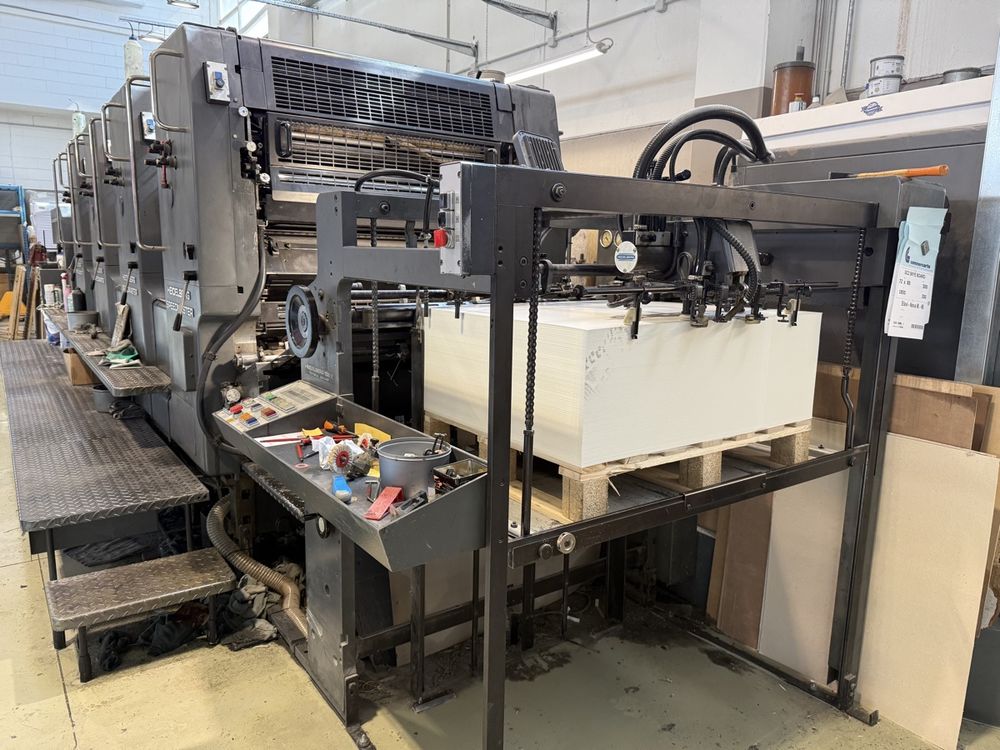

- Stream feeder with belt
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic

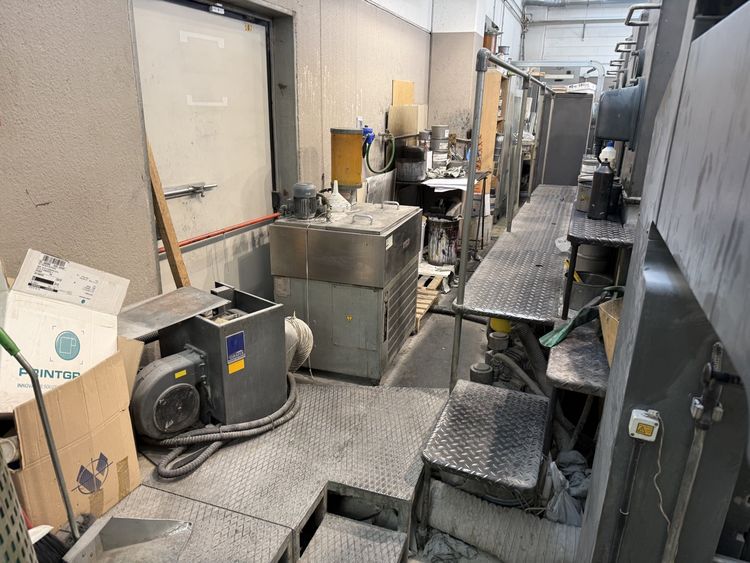

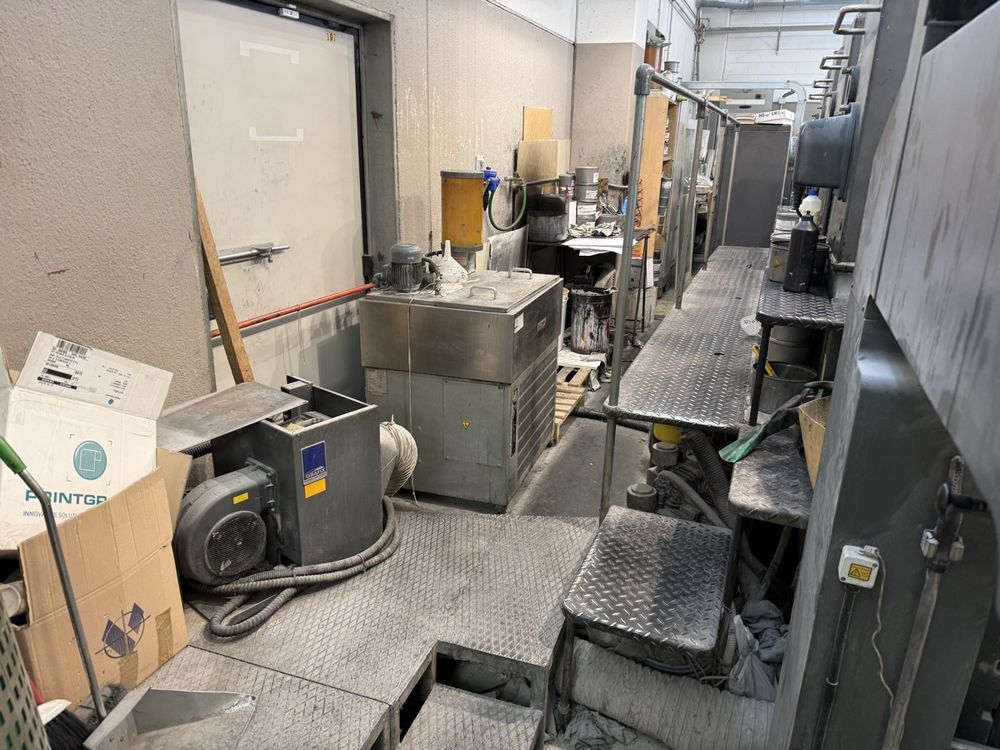

- Alcolor continuous dampening with alcohol metering; cooling and re-circulation unit system

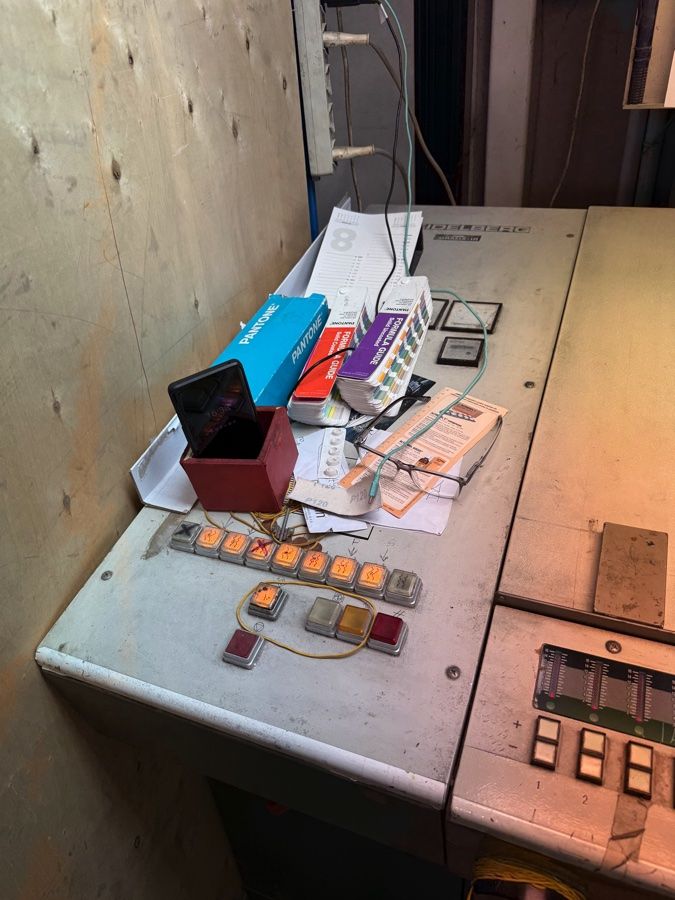

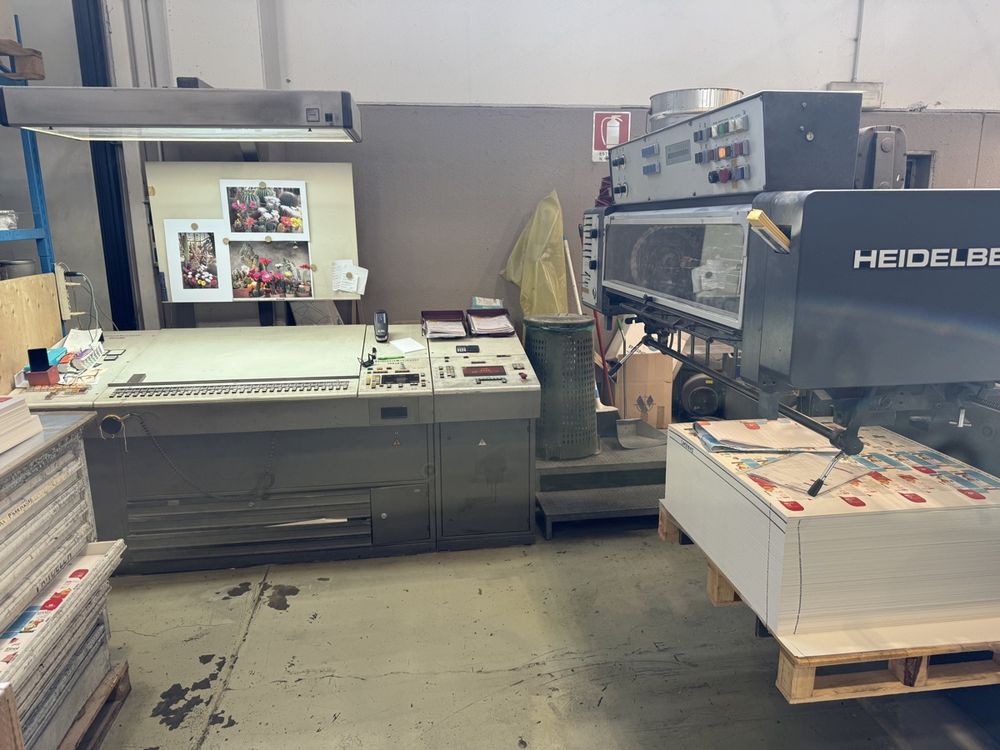

- CP TRONIC Machine control and diagnosis by plasma monitor console /self diagnostic, control and monitor console

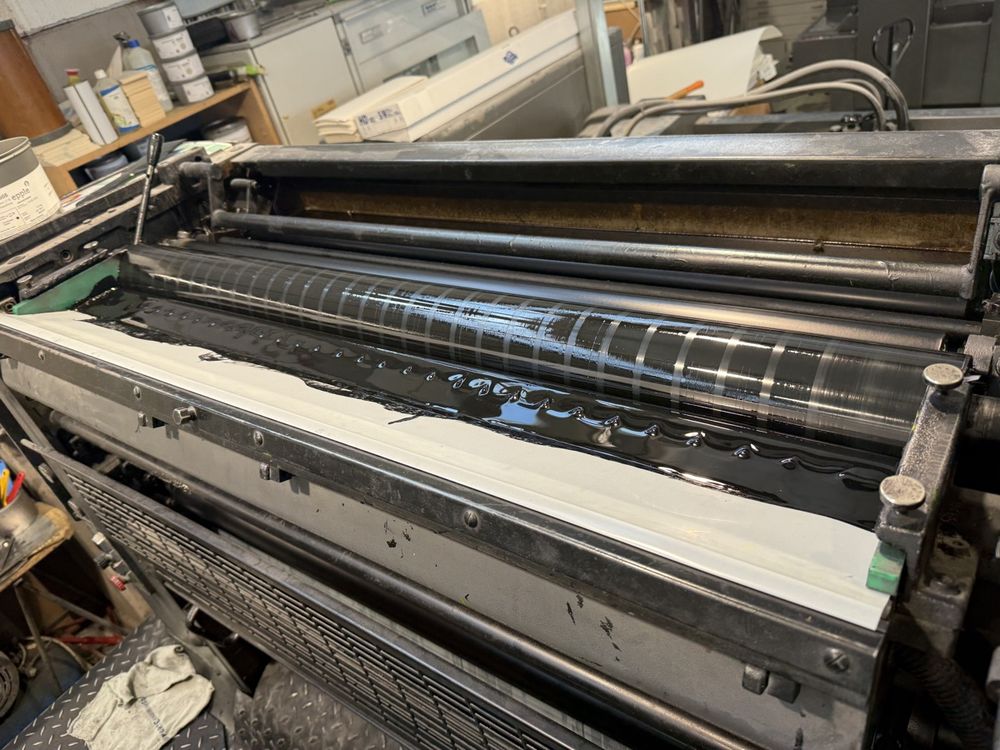

- CPC 1-02 (Remote inking; dampening; axial, circumferential and diagonal register control with light pen; day light illuminator and cassette or memory card for job memories)
- Automatic blanket cylinders wash up
- Automatic rollers wash up
- Manual plate change
- Chromed impression cylinders
- Chromed plate cylinders
- Pneumatic compressors
- Powder sprayer device

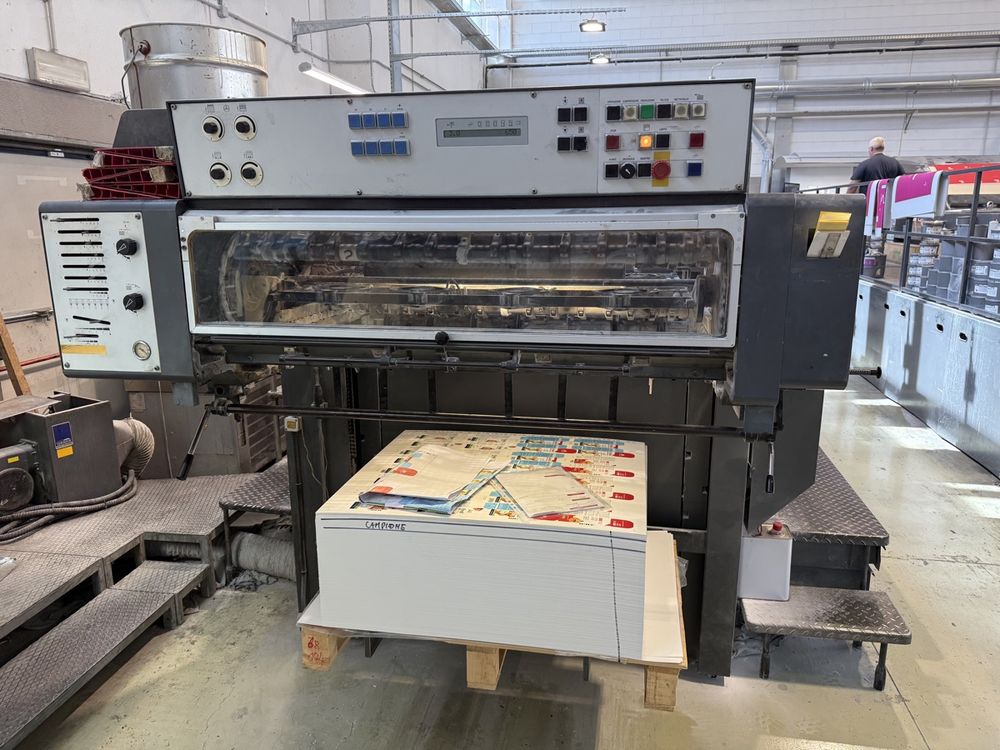

- High pile delivery
- Automatic sheet de-curler
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories

Conditions: No damages on cylinders
Availability: immediately
Visible: The machine can be inspected in production. Nearest airport is Milan, Italy
