Heidelberg SM52-2+ 37x52

HEIDELBERG SM52-2+ Year 2004

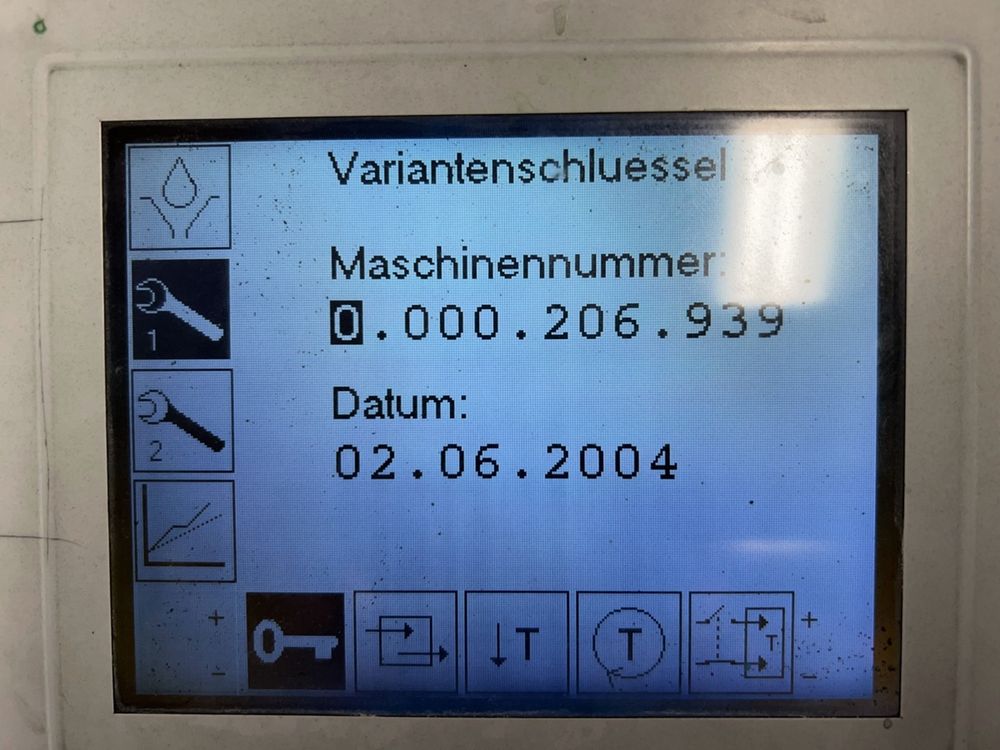

Machine no. 206.939
Sheet-fed offset press 2 straight colour
Approx. 65 mill. impressions
Size 14 x 20 inch
Technical details:
Max speed 15.000 sheets/hour
Max paper size 370 x 520 mm
Min paper size 105 x 145 mm
Thickness max 0,03-0,4 mm
Printing area 360 x 520 mm
Plate size 459 x 525 mm Thickness 0,15 mm
Blanket size 535 x 460 mm Thickness 1,90 mm
Dimensions:
L. 2,86 mt.
P. 1,85 mt.
H. 1,62 mt.
Power requirement Kw 14 circa
Weight 4.800 Kg. Circa
Accessories included:
- Fully equipped
- 2 feeder boards
- Feederpile with preloading device
- Stream feeder Suction-tape feeder table
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic
- Alcolor continuous dampening system with Technotrans's alcohol metering; cooling and re-circulation unit system
- Soft touch buttons edition
- Preset (autom. paper size and thickness setting)

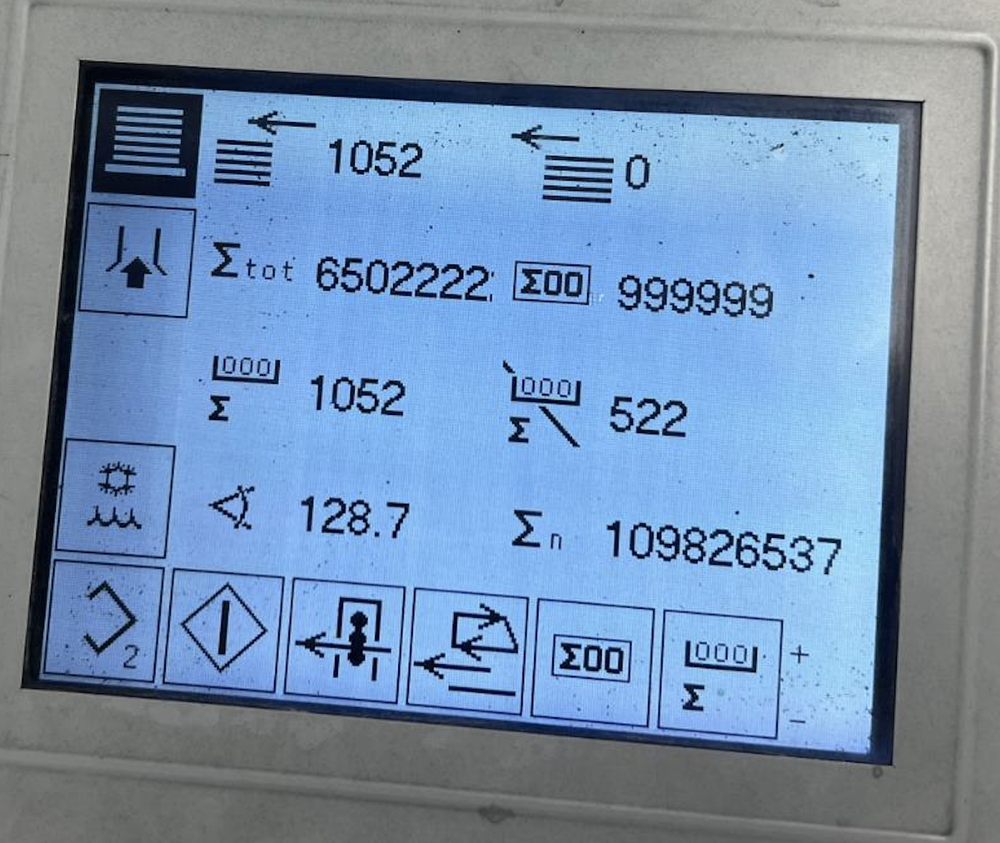

- CP TRONIC Machine control and diagnosis by plasma monitor console /self diagnostic, control and monitor console with remote dampening; axial, circumferential and diagonal register control.
- Programmable automatic blanket cylinders wash up via CP Tronic - Tandem Wash-up Concept
- Programmable automatic impression cylinders wash up via CP Tronic -Tandem wash up concept
- Programmable automatic rollers wash up via CP Tronic
- Autoplate (semi automatic plate loader) with Bacher Control 2000 register system
- Chromed impression cylinders
- Chromed plate cylinders
- Chromed blancket cylinders
- Laser slit ink ducts
- Straight machine - NO PERFECTOR
- Central lubrication with automatic central service interval control via Cp-tronic
- Pneumatic compressors
- Powder sprayer device
- Low pile
- Automatic sheet de-curler
- Plus version (prepared for numbering and perforating)
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories

Conditions: machine with no damage on cylinder and gears
Availability: immediately
Visible: The machine can be inspected in our stock. Nearest airport Milan, North ITALY
