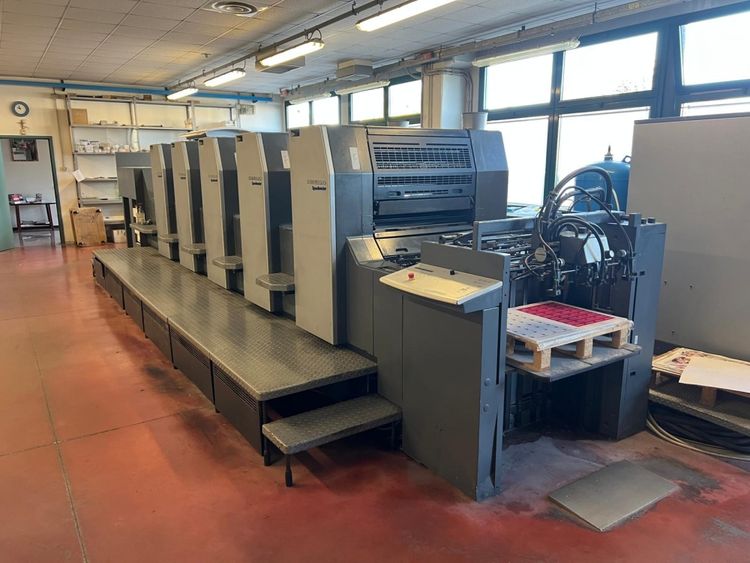

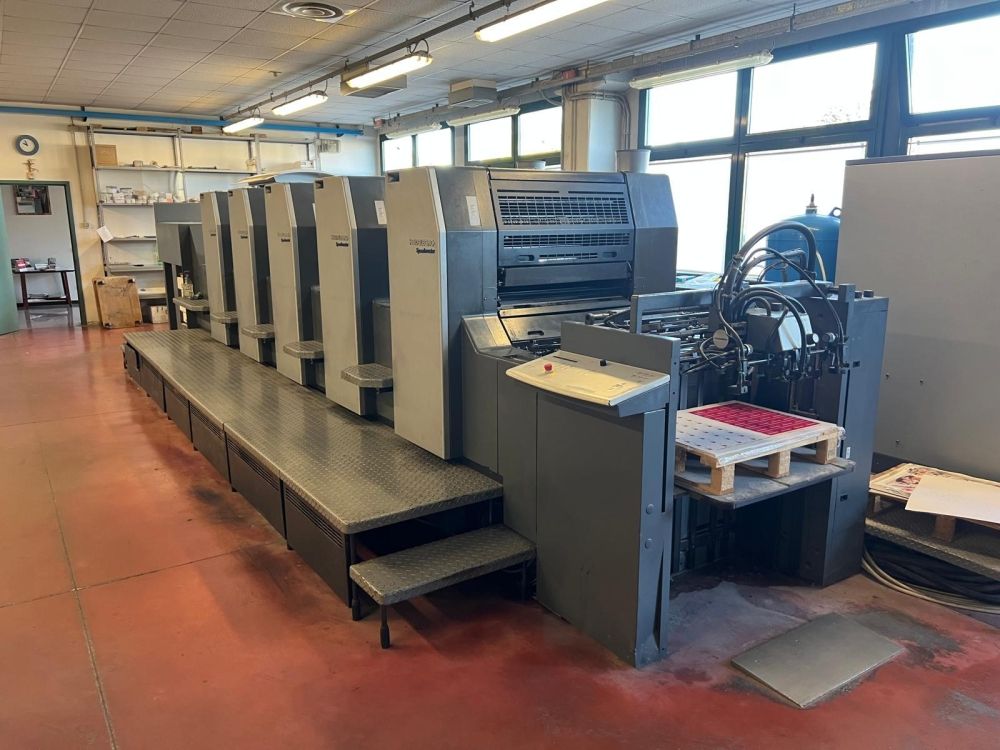

Heidelberg SM74-5PH 5 520 x 740 mm

140 mio impressions!!
Sheet-fed offset press - 5 color high pile delivery,
Perfecting machine 2+3/5+0

Technical features :
Speed 13.000 copie/h
Paper size max 520 x 740 mm
Paper size min 230 x 305 mm
Thickness max 0,03-0,6 mm
Print size 510 x 740 mm
Plate size 605 x 745 mm Thickness 0,30 mm
Blancket size 616 x 772 mm Thickness 1,90 mm
Dimensions :
L. 9,7 mt.
P. 2,8 mt.
H. 1,9 mt.

Accessories included :
- Stream feeder with vacuum belts
- Preset (autom. paper size and thickness setting)
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic
- Alcolor continuous dampening system with Technotrans's alcohol metering; cooling and re-circulation unit system
- Ink temperature control
- CP2000 touch screen consolle and diagnosis; self diagnostic;Remote inking; dampening; axial,
circumferential and diagonal register control with light pen; day light illuminator and cassette or memory card for job memories)
- Prepress interface
- Programmable automatic blanket cylinders wash up via CP2000
- Programmable automatic impression cylinders wash up via CP2000
- Programmable automatic rollers wash up via CP2000
- Autoplate (semi automatic plate loader) with Bacher Control 2000 register system
- Chromed cylinders
- High-pile delivery
- Automatic sheet de-curler
- Powder sprayer
- Steel plate on feeder and delivery
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories
- Plate punch and bender

Conditions: machine with no damage on cylinder and gears
