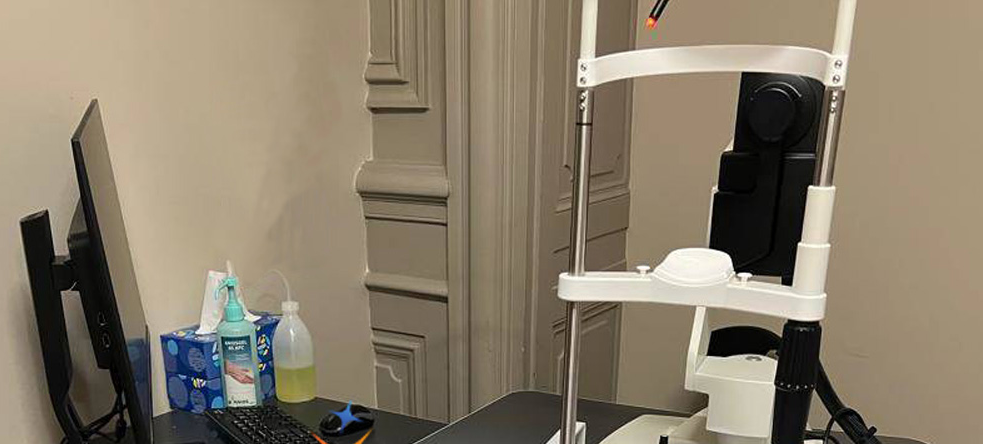

Heidelberg Spectralis OCT2

Sale Heidelberg Spectralis OCT2 (OCTA) Retinal Imaging System.
Used in great condition.

Spectralis OCT2 Technical Data
General Information
Input voltage 100 – 240 Volt
Power consumption 140 VA

Light Sources
FA laser 486 nm (blue)
Green laser 518 nm (green)
ICGA laser 786 nm (infrared)
R laser 815 nm (infrared)
OCT-SLD 880 nm (infrared)

Standard Objective Lenses
Max. scan field (visual angle) 30° × 30° (ca. 9 × 9 mm)
ART (image averaging) up to 100 single images

Widefield Imaging Objective Lens
Max. scan field (visual angle) Ø 55° (ca. 16,5 mm)
High resolution mode (digital) ≈ 10 μm/pixel lateral
ART (image averaging) up to 100 single images

Ultra-Widefield Imaging Objective Lens
Max. scan field Ø 102° (ref. pupil), Ø 135° (ref. eye center)
High resolution mode (digital) ≈ 20 μm/pixel lateral
ART (image averaging) up to 100 single images

OCT – Retinal imaging
A-scan rate 85 kHz
Axial digital image size 496 pixel
Axial resolution 3,9 μm/pixel
Lateral resolution 5,7 μm/pixel
Scan angle up to 55° (ca. 16,5 mm)
Scan depth into the tissue 1,9 mm
Scan patterns Line scan, volume scan, radial scan, circle scan, ONH-RC scan, individual

OCT – Anterior imaging
cSLO image width 8,3 / 11 / 16,6 mm
OCT scan depth 8,3 / 11 / 16,6 mm
ART (image averaging) up to 100 single images

OCT Angiography imaging
High speed mode 30° × 15° with 11 μm lateral resolution
High resolution mode 10° × 10° with 5,7 μm lateral resolution
Number of pixel Max. 768 × 384 pixel
ART (image averaging) up to 7 single images
