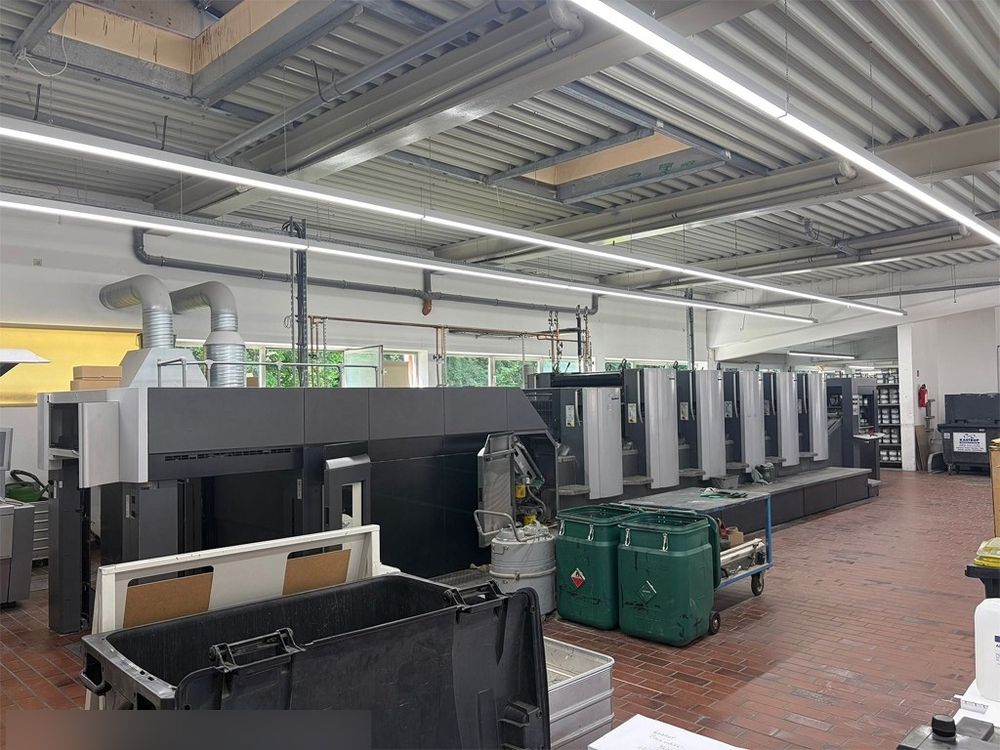

Heidelberg Speedmaster CX 102-5+L 720 x 1,020 mm

5-color offset printing press
Impression: 145 mio.
Sheet format:
- Sheet format max. = 720 x 1,020 mm
- Sheet format min. = 340 x 480 mm
Print format: - Maximum Print Area = 710 � 1,020 mm
Coating Area: - Max. Coating Area = 710 x 1,020 mm
Material thickness: - 0.03 - 1.00 mm
Plate Size:
- Printing Plate Size = 790 x 1,030 mm
- Coating Plate Size = 780 x 1,030 mm
Blanket Size: - 840 � 1,052 mm
Blanket Thickness: - 1.95 mm
Coating Blanket Size: - 800 � 1,048 mm
Plate thickness: - 0.20�0.30 mm
Plate gap: - Plate Cylinder Undercut = 0.12 mm
Gripper Margin: - 10 � 12 mm
Sheet transfer: - AirTransfer Sheet Transport System
Cooling: - Water-cooled machine
Dampening: - Technotrans AlcoSmart AZR CANoppen Alcohol Control System
Recooling: - Recirculating Chiller 72/32/L
Coating system: - Chambered doktor blade system
Temperature control: - Ink unit temperature control
Drying:
- UV Press Preparation
- UV Delivery Preparation
Feeder: - PRESET plus feeder
Plate change: - Autoplate Pro
Equipment:
- Prinect Press Center
- Press Center Instant Gate
- Press Center Color Assistant
- Press Center Wallscreen Application
- Prinect Pressroom Manager
- Press Center Netprofiler
- Terminal Server 1007
- AirStar
- WashStar

Delivery: - PRESET plus delivery
Condition: How it stands and goes
Speed: 16,500 sheets/hour
Feeder: 1,320 mm
Delivery: 1,295 mm
Power supply: This Machine Is Configured for 380�400 V, 50 Hz
Important: Observe Your Utility Company's Connection Requirements!
CE mark: The Machine Bears the CE Mark
Specifications: Technical data and illustrations are subject to change.
