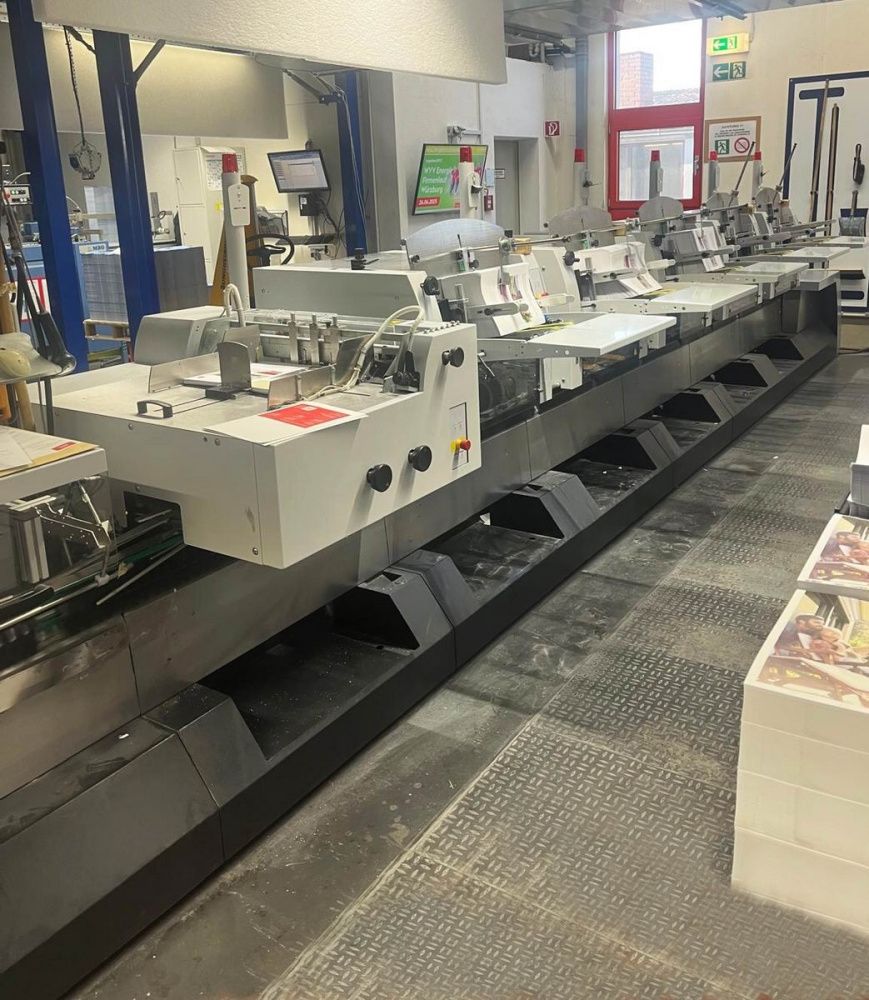

Heidelberg ST 500 Saddle stitcher
EUROPE (Western and Northern)
Max. Format: 330 x 500 mm
Max. Speed: 13,000 cycles/hour
Automation package
Touchscreen control of all functions
Automatic format presetting for all components
5 automatic rotary feeders (4x DVU/vertical + 1x DHU/horizontal), equipped with mobility system and small-format devices
Chrome-plated surfaces on transport elements
1 cover feeder CHU
Pulsed compressed air
Sequential feeder monitoring (SAW)
Sheet length control
Stitching station HM-500
Stitching heads HD (3x standard + 2x loop stitching)
Quick-change device for stitching heads (SWHK)
Floor-mounted large wire spool holder
Stitching wire transport system (HDT)
Staple monitoring from below (HKKU)
Diverter for faulty sheet ejection
Trimmer TR-500
Cut control including reject gate
Small-format transport system (KFT)
Center cut device (MS)
Punch cut unit with air blast system
Punch knife sets 6 mm + 8 mm with air connection
Various knife sets
Waste chute
Cross-stacker HD-CHA Automatic (automatic format presetting)
Roll delivery table
Compressed air and vacuum supply via PIAB system
