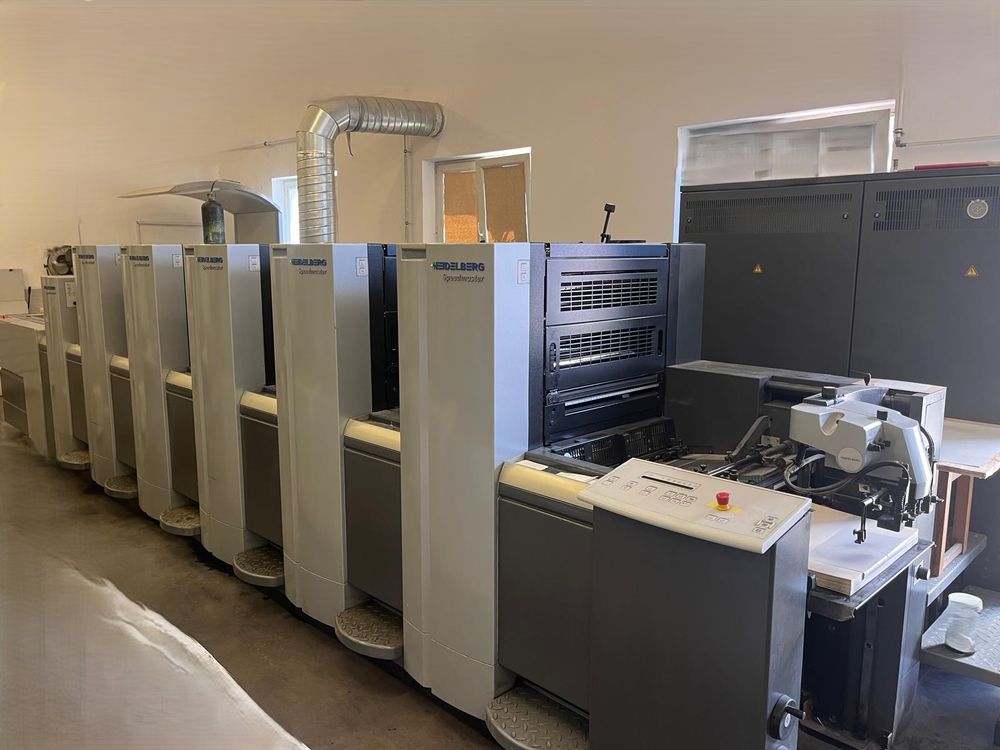

Heidelberg SX 52-5+LX 370 × 520 mm

Impressions Mio.: Only 49,5 Mio.
Extension of printable substrate thickness up to 0.6 mm
DBK sheet pull-out device
AutoPlate (automatic plate changing system)
Combined washing unit
Alcolor Vario dampening system
Press Center 2 / XL2 with intuitive touchscreen operation
Intellistart automatic job change and process optimization
Color Fast Solution for fast ink presetting and reduced makeready times
High-performance inking units with roller and ink-form wash-up devices
HydroStar Compact dampening circulation system (air-cooled)
PowderStar AP 110 powder spray unit
DryStar Coating Dryer (IR / hot air)
Feeder & Delivery: SX sheet alignment system with integrated presetting
Electromechanical and ultrasonic double-sheet control
High-pile delivery with optimized sheet braking system
Coating Unit: Inline coating unit with chamber doctor blade system
Ceramic anilox roller (80 L/cm)
Coating supply system, 180 l/h
Register-controlled coating forme cylinder
Central lubrication system
StaticStar Compact antistatic system
Axis Control (pre-press version)
Maximum Sheet Size: 370 × 520 mm
Maximum Printing Speed: up to 15,000 sheets/hour
Power Supply: 400 V / 50 Hz
Operating Mode: Conventional printing
