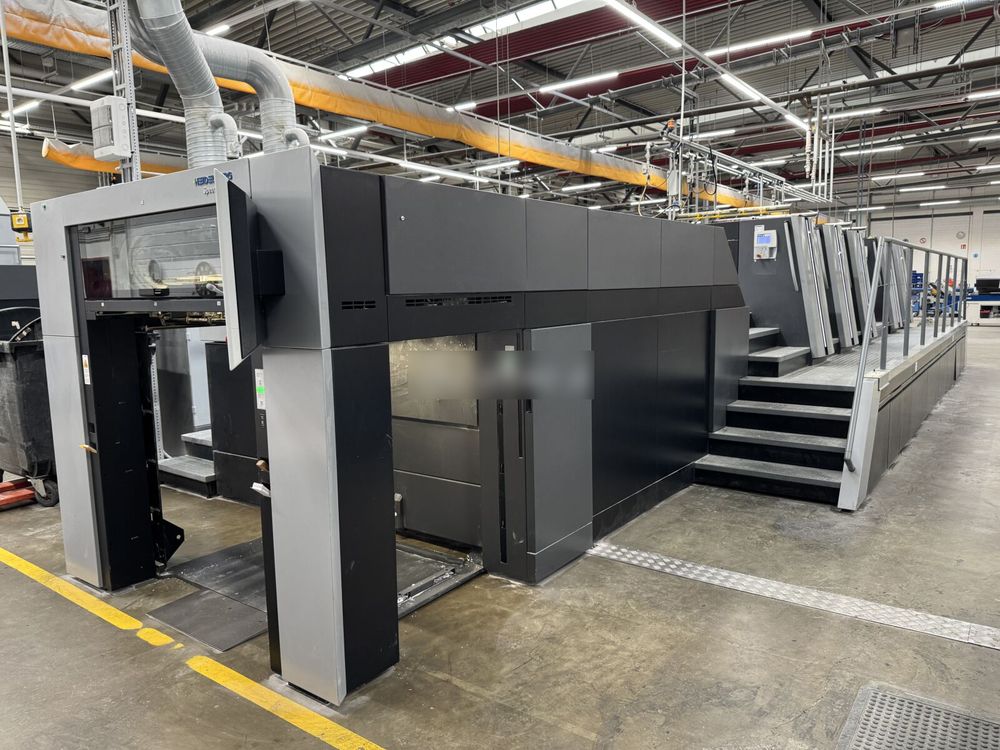

Heidelberg XL 106-4-P+LX2 750 × 1,060 mm

Equipment:
Machine Control
Control Unit: Prinect Press Center XL 3
Quality Control: Prinect Inpress Control 3 (1 measuring bar)
Wallscreen XL
Speedmaster Operating System
Intellistart 3 with Performance Package and Wallscreen XL
Color Fast Solution
Air Assistant
Wash Assistant
Device Assistant
Press Center 3/XL 3 Instant Gate
Press Center 3/XL 3 DryStar Advanced
Press Center 3/XL 3 Color Assistant Pro
Press Center XL 3 Wallscreen Application
Press Center XL 3 Netprofiler

Feede:
Feeder type: Preset Plus Feeder
XL sheet arrival system
Ultrasonic double sheet control
Pull-gauge double sheet control
Electromechanical shingling control
Package control
Feeder pile plate with ramp

Printing Units:
Number of printing units: 4x
Number of coating units: 1x
Perfecting: 2/2
Fully automatic three-drum perfecting system
Plate changing: AutoPlate Pro
PerfectJacket
Sheet travel monitoring in all units
Variable AirTransfer system
Low-maintenance universal gripper system
Patented wing grippers and gripper bridge spoilers
Fully automatic preset air settings for all sheet guiding elements
Blanket washing device: program-controlled (short/standard/intensive)
Impression cylinder washing device: program-controlled
Saphira Blanket Pro 100 (per printing unit)
Roller-Check-Assistant

Inking and Dampening:
Inking/dampening unit: Heidelberg Hycolor
Separate ductor tempering
Remote-controlled short inking unit switching
Roller group separation
Remote rider roller adjustment
Hycolor Pro film dampening unit (5 rollers)
Fully automatic ink roller washing device (12 wash programs)
Roller protection system Auto Protect
CombiStar CAN (water-cooled)
FilterStar Compact

Coating System:
High-end chamber blade coater
Chamber doctor blade system (final coating unit)
Coating form cylinder with combi clamping system and register pins
CoatingStar CAN coating supply unit
Anilox roller 100 lines/cm (light-weight, ceramic-coated, cup volume 13 cm³/m²)
Additional anilox roller 60 lines/cm (light-weight, ceramic-coated, cup volume 20 cm³/m²)
Chamber blade rack

Delivery:
Delivery type: Preset Plus Delivery
Delivery extension: X2
Preset-controlled suction segment discs
Sheet brake system with preset-capable brake modules
Dynamic sheet brake
Pile plate in delivery with ramp
CleanStar for delivery extension

Dryer:
DryStar Combination CAN with 4 slots (water-cooled)
1x IR/hot-air slot with edge zone compensation
2x Hot-air slots with round nozzle technology and automatic format setting
1x Recirculating air slot

Powder Device:
PowderStar AP 500 Duo CAN

Periphery:
AirStar Pro (water-cooled)
ScrollStar
StaticStar Compact (antistatic system)
Automatic central lubrication
Acoustic package (82–83 dB(A))

Technical Details:
Parameter Value
Max. Speed 15,000 sheets/h
Max. Sheet Size 750 × 1,060 mm / 29.53 × 41.73 in
Min. Sheet Size (straight) 340 × 480 mm / 13.39 × 18.90 in
Min. Sheet Size (perfecting) 410 × 480 mm / 16.14 × 18.90 in
Max. Print Size (straight) 740 × 1,050 mm / 29.13 × 41.34 in
Max. Print Size (perfecting) 730 × 1,050 mm / 28.74 × 41.34 in
Max. Coating Size 740 × 1,050 mm / 29.13 × 41.34 in
Plate Size 811 × 1,055 mm / 31.93 × 41.54 in
Stock Thickness 0.03–0.8 mm / 0.0012–0.031 in
Max. Stiffness (DIN 53121) 130 mNm / 1.15 ibf in
Gripper Margin 10–12 mm / 0.39–0.47 in
Max. Pile Height Feeder 1,320 mm / 51.97 in
Max. Pile Height Delivery (front) 1,295 mm / 50.98 in
Max. Pile Height Delivery (side) 1,275 mm / 50.20 in
Max. Pile Weight (Feeder / Delivery) 2,000 kg / 4,410 lbs
Noise Level 80–84 dB(A) (EN 13023)
Voltage 400 V / 50 Hz
Light Voltage 230 V
