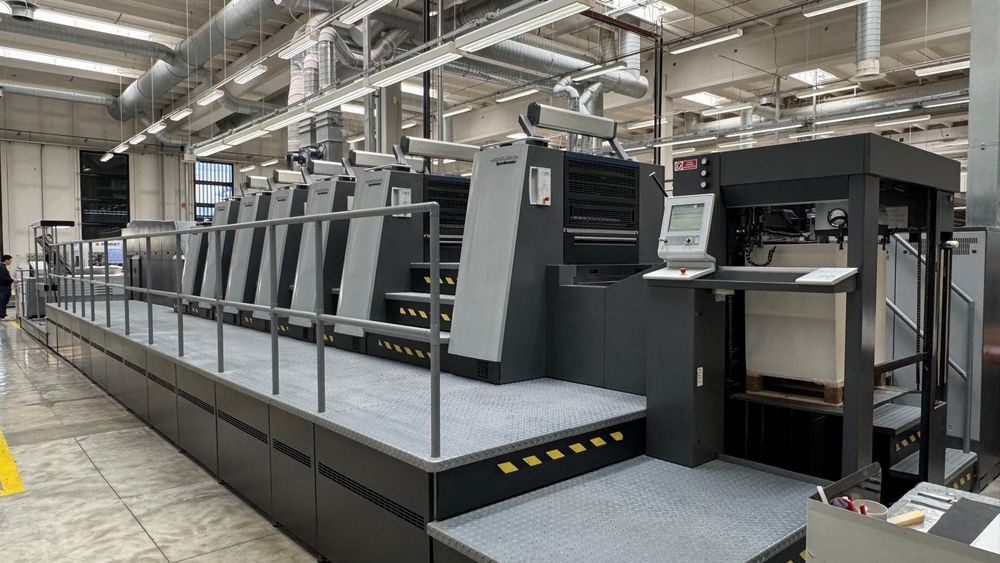

Heidelberg XL75-6P2+LX3 (F) 600,5 x 750

HYBRID - FULLY EQUIPPED
115M IMPRESSIONS
Max sheet size 600,5 x 750

Accessories:
Console:
Prinect Press Center console touch screen, axial, circumferential and diagonal register remote control, ink ductors rotation control, job memorization
Prinect Press Center MasterLevel
Prinect Press Center Color Assistant Pro
Press Center InstantStar
Prinect Press Center IntantGate
Image Control: Spectrophotometric quality control on all the surfice of the printed sheet

Feeder:
Pile height sensor
Pneumatic side register control with integrated auto cleaning and double shee control with direct system
Non-Stop on feeder
Double sheet detector - pulling device
StaticStar Compact : No. 2 Eltex ion blowers on feeder, antistatic bars on feeder and delivery

Printing Units:
Alcolor Vario System damping
Double diameter impression cylinders
Double diameter transfer cylinder between printing units, with Air Transfer System with possibility to adjust automatically it based on thickness of material to print
Roller wash-up device controlled by Prinect Press Center
Blanket and impression cylinders automatic washing devices by Prinect Press Center
Suction brush on 1 printing unit
Autoplate PRO: Automatic plate change
CombiStar PRO CAN : Technotrans ink temp control combined with damping refrigeration + Alcosmart
Auto Protect. Protective fluid management system for the X PU inking rollers
Blowing bar (anti-emulsion) on the inking units, recommended for UV and hybride X PU machines
6/0 ; 1/5 Fully Automatic perfecting device
N.ro 3 x DryStar IST/UV Interdeck CAN to put in all transfer positions (full flexibility)
Ink.mate Technotrans Ink agitators

Varnishing units :
Varnishing unit 550 L./H., with cooking register, Tresu pressurized chambered doctor blade system, with anilox roller
Coating Star : heat coater system
One additional camera not pressured
Nro 4 anilox rollers: 120 lines (paper); 100 lines (UV); 80 lines (cardboard); 60 lines (cardboard);

Delivery :
Extended Delivery (240 cm / X3)
Non-Stop in delivery
PowderStar Weko AP 500 CANopen
CleanStar Compact : filter for powder spray suction
DryStar Combination UV CAN with 4 modules (IR/HA + HA + EOP UV + Cold Air Module ) Water Cooled

Peripherals :
ScrollStar : Atlas Copco compressor
AirStar Pro : central air box water cooled

Various :
15.000 speed/h
Technotrans Beta.t : Water refrigeration cabin for UV Dryer
Elevated 550 mm
Intercom : Microphone communication system
