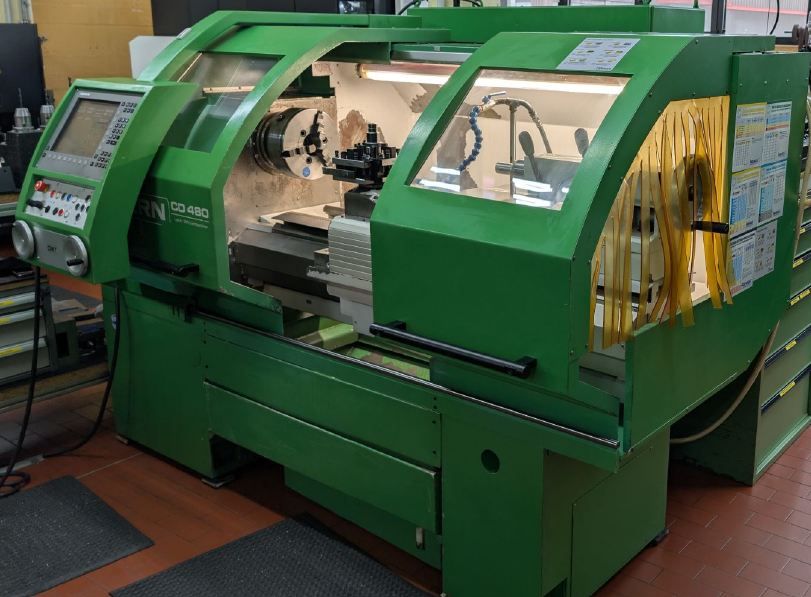

HEIDENHAIN MANUALplus 620 CNC 3000 rpm DMT CD 480 2 Axis

Ref : 2810330-3-AW

Condition : Used

Manufacturer : -

Controller : HEIDENHAIN MANUALplus 620 CNC

Spindle Speed : 3000 rpm

Model : DMT CD 480

Nb Of Axis : 2 Axis

Year(s) : 2010

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Turning diameter: 475 mm
Turning length: 830 mm
Control: HEIDENHAIN MANUALplus 620 CNC
Swing over slide: 260 mm
Centre distance: 1000 mm
Spindle bore: 70 mm
Spindle speed: 1–3000 rpm
Cross feed: 0.001–1000 mm/rev
Longitudinal feed: 0.001–2000 mm/rev
Rapid traverse (longitudinal): 10 m/min
Rapid traverse (cross): 5 m/min
Tailstock quill diameter: 70 mm
Tailstock quill stroke: 120 mm
Tailstock taper: MT5
Main drive power: 25 kW
Weight: 2.9 t
