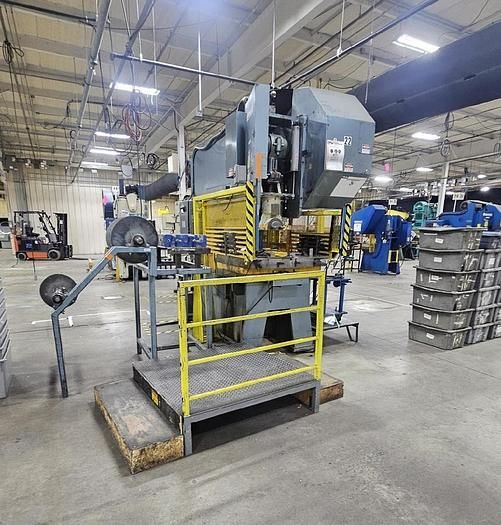

Heim, Rousselle G1-120 120 ton

Tonnage capacity: 120 ton
Stroke length: 3"
Shut height (S.D.A.U.): 18"
Slide adjustment: 4"
Slide area (L-R x F-B): 18.5" x 13"
Bed area (L-R x F-B): 30" x 30"
Bolster area (L-R x F-B): 40" x 40"
Bolster thickness: 4"
Bed opening (L-R x F-B): 18" x 16"
Throat depth: 30"
Width of opening through back: 20"
Strokes per minute: 90 SPM
Drive motor: 10 HP
Floor space at base (L-R x F-B): 42" x 95"
Overall height: 121"

30" deep-throat frame
MicroGuard self-diagnostic PLC
Air clutch and brake
Air counterbalance
Power slide adjustment
Bijur automatic lubrication
T-slotted bolster plate
