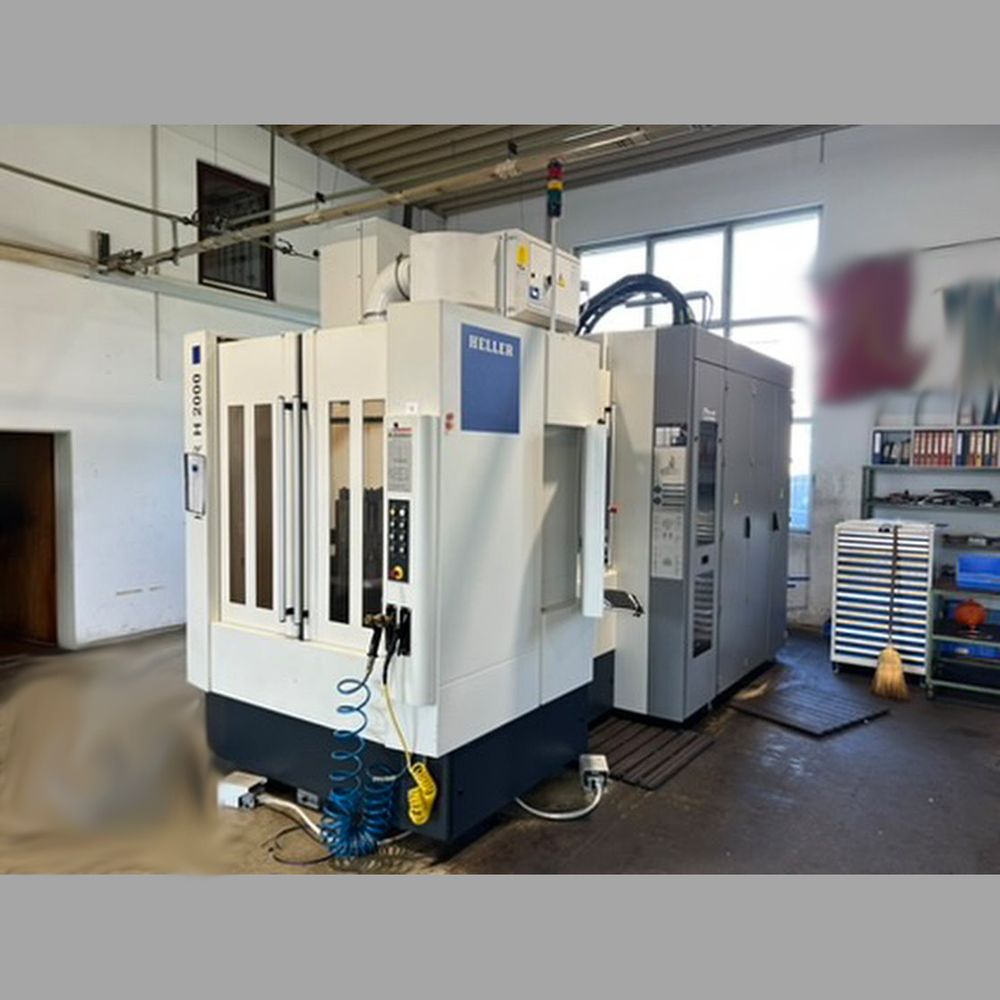

Heller H 2000 4 Axis

X-axis travel 630 mm
Y-axis travel 630 mm
Z-axis travel 630 mm
Rapid traverse X-axis 65 m/min
Rapid traverse Y-axis 65 m/min
Rapid traverse Z-axis 65 m/min
Rotary table NC-controlled
Control Siemens 840 D solutionline
Tool taper SK 40
Spindle speed 10000 rpm
Spindle power 38 kW
Spindle torque 242 Nm
Tool magazine 80 stations
Pallet changer 2-fold
Pallet size 500 x 400 mm
Workpiece weight per pallet 600 kg
Hydraulic clamping
Tool breakage monitoring
Infrared measuring probe
Internal coolant supply
High-pressure pump 50 bar
Coolant unit with paper band filter
Scraper-type chip conveyor
Fully enclosed work area
Light in working area
Warning lamp
Additional control panel for tool management
Preparation for oil/emulsion mist extraction
Technology option Milling
Standard-MF-II PC keyboard
Mains fuse 62 A
Machine hours approx. 2725
Spindle hours approx. 976
