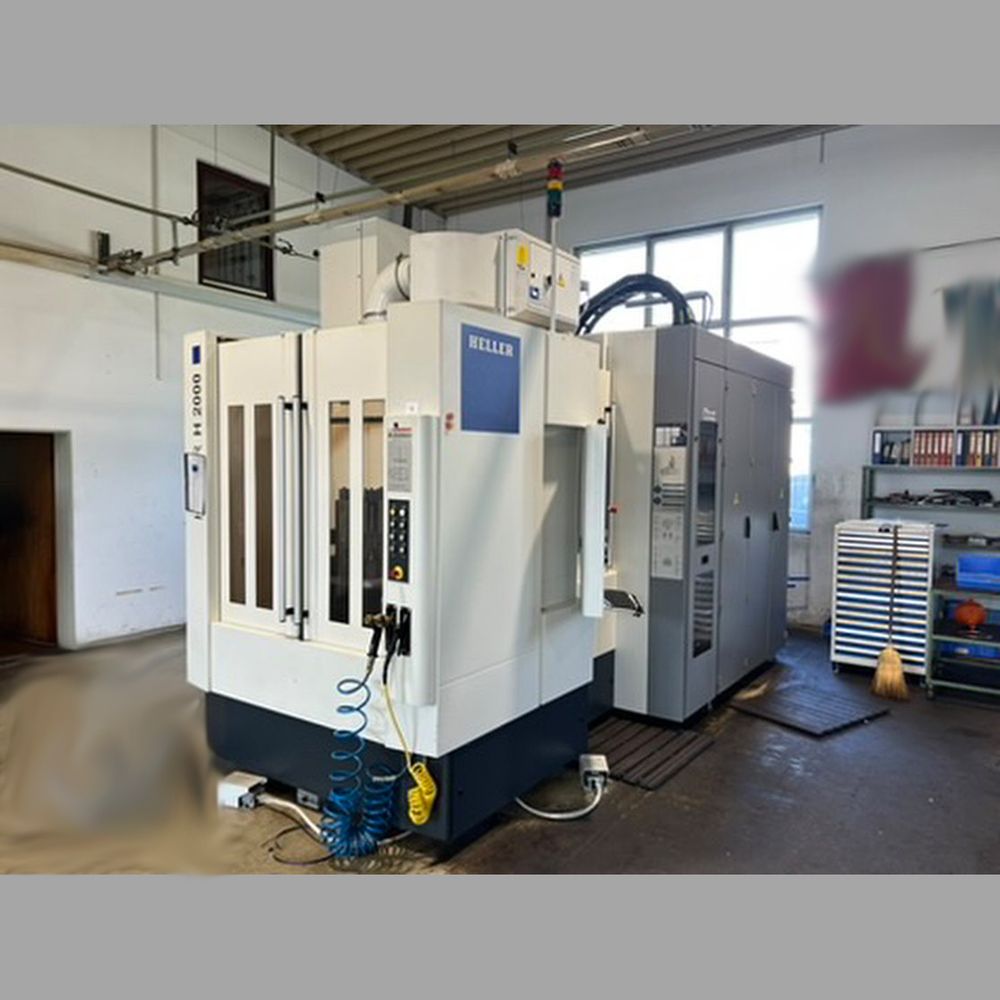

Heller H 2000 4 Axis

Traverses X-axis 630 mm
Traverses Y-axis 630 mm
Traverses Z-axis 630 mm
Max rapid traverse X/Y/Z 65/65/65 m/min
NC rotary table
Control Siemens 840D solutionline
Hydraulic clamping
IR measuring probe
Tool breakage monitoring
Fully enclosed work area
Light in working area
Preparation for central oil/emulsion mist extraction unit
Scraper-type chip conveyor
Internal coolant supply
Coolant unit with paper band filter
High pressure pump 50 bar
Additional control panel for tool management
Warning lamp
Spindle taper SK 40
Max spindle speed 10000 rpm
Spindle power 38 kW at 10–40/100% duty ratio
Spindle torque 242 Nm at 10–40/100% duty ratio
Tool magazine capacity 80 stations
Pallet changer 2-fold
Pallet size 500 x 400 mm
Max workpiece weight per pallet 600 kg
Mains fuse 62 A
