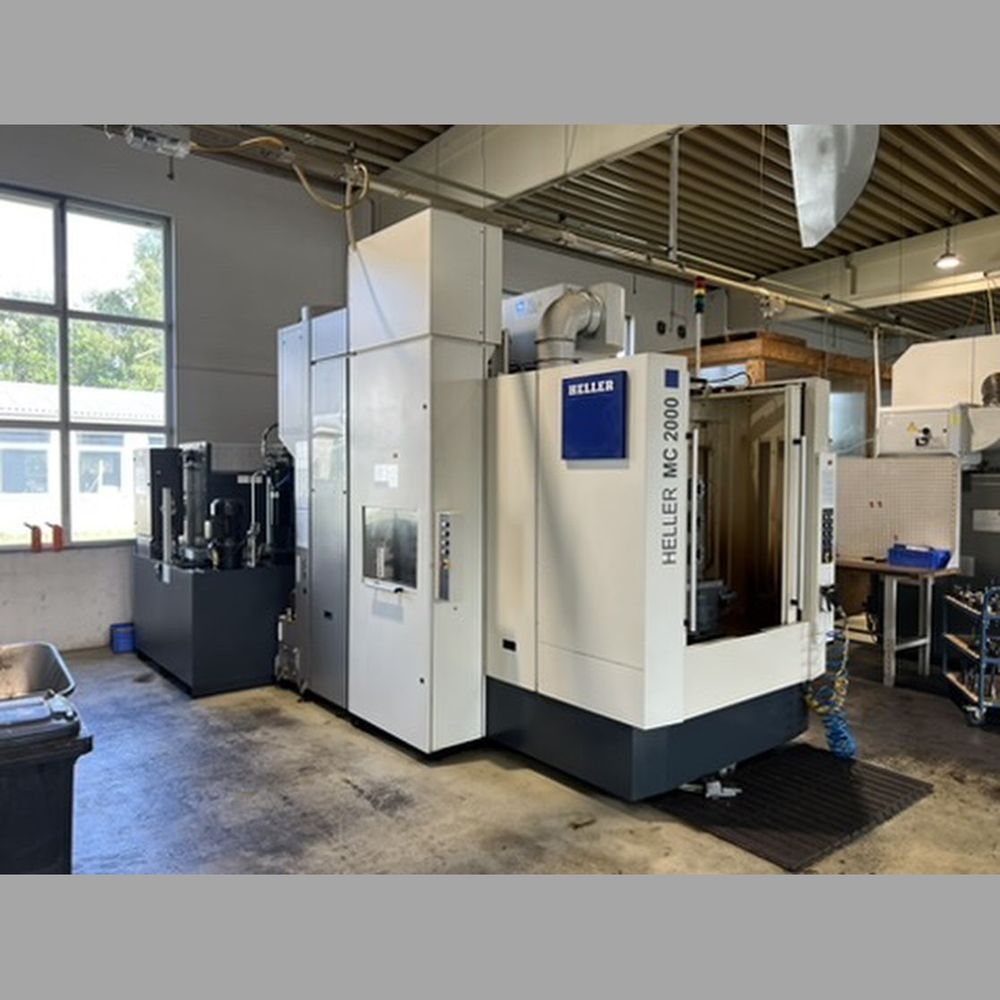

Heller MC 2000 4 Axis

X-axis travel 800 mm
Y-axis travel 800 mm
Z-axis travel 1000 mm
Linear glass scales X/Y/Z/B
Rotary table NC-controlled
Control Siemens 840 D solutionline
Tool taper SK 40
Spindle speed 10000 rpm
Spindle power 38 kW
Spindle torque 242 Nm
Tool magazine 80 stations
Pallet changer 2-fold
Pallet size 630 x 500 mm
Hydraulic clamping
Infrared measuring probe
Tool breakage monitoring
Internal coolant supply
High-pressure pump 50 bar
Coolant unit with paper band filter
Scraper-type chip conveyor
Fully enclosed work area
Light in working area
Additional control panel for tool management
Warning lamp
Machine weight approx. 12500 kg
Machine hours approx. 14619
