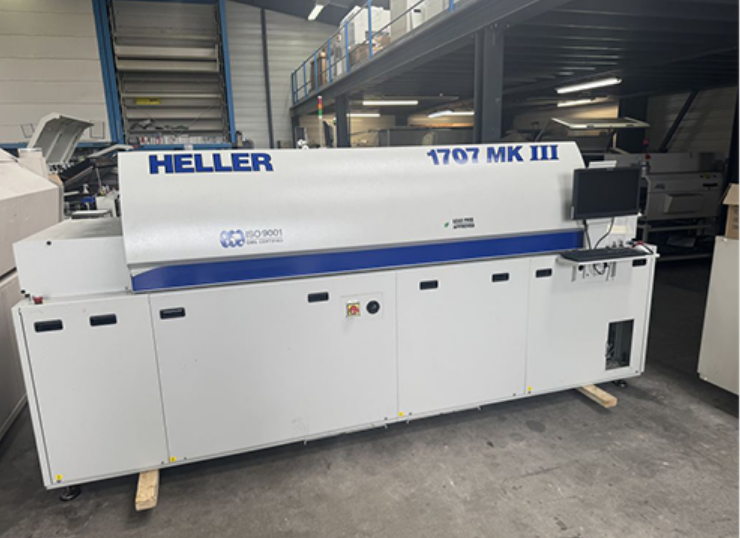

Heller 1707 MK III Reflow Oven

Reconditioned Used Equipment
Dimensions (L x W x H): 3400 x 1370 x 1600 mm
Chain conveyor
Motorized spacing adjustable by software
Card holder pin length: 5 mm
Automatic lubrication
Passage width: 51 - 457 mm
Chain conveyor with 4.75 mm pins
Central anti-buckling rail
Max. conveyor speed: 188 cm/min
Conveying direction: Left to Right
Heating length: 1,830 mm
7 upper zones
7 lower zones
Maximum temperature: 350°C
1 forced-air cooling zone
Closed-loop temperature control
Card counting
High and low alarm management
Power limitation at startup
Vault opening assisted by electric cylinders
PC and software running Windows XP
Screen for operator interface and supervision
4-color light column with buzzer
2 emergency stops
Color: RAL 9002
Extraction: 1 outlet Ø 110 mm
Power supply: 400 Volts (3P + N + T)
