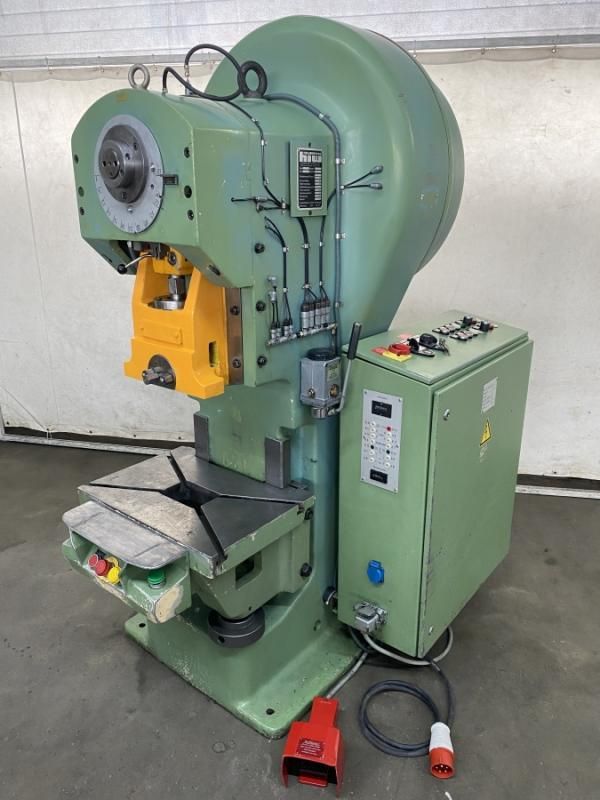

Helmerding EH 25 B 25 t

Press force: 25 t
Throat depth: 180 mm
Stroke adjustment: 8–82 mm
Ram adjustment travel: 60 mm
Strokes per minute: 145 spm
Max installation height: 330 mm
Table height adjustment: 150 mm
Table height above floor: 630–780 mm
Table size: 560 × 360 mm
Ram face size: 315 × 150 mm
Table opening: 150 × 100 mm
Die shank hole diameter: 40 mm
Motor power: 1.5 kW
Power supply: 400 V / 50 Hz

Hydraulic clutch-brake combination
Foot pedal control
Two-hand control
Automatic centralized lubrication
Electrical control cabinet
Height-adjustable press table

Machine dimensions: 1600 × 1100 × 1900 mm
Machine weight: approx. 2 t
