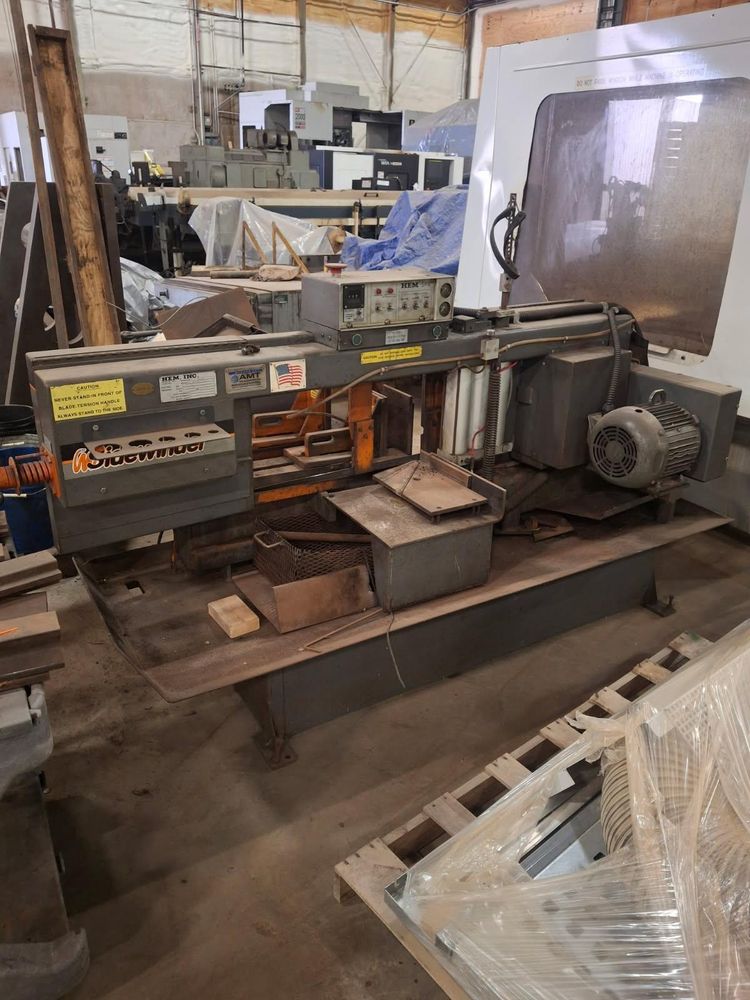

Hem SIDEWINDER AUTO Band Saw SemiAutomatic

Saw Type Pivot Style High-Speed Heavy-Duty Production Bandsaw
Saw Capacity 12-3/4 in H x 16 in W @ 90 Degrees
Saw Capacity 10 in H x 10 in W @ 45 Degrees
Blade Size 1 in x 13 ft 6 in x 0.035 in Thick
Blade Drive 3 HP, 220/440V AC, 3 Phase, 1800 RPM, Ball Bearing TFC
Blade Speed Infinitely Variable 60 – 300 SFPM
Coolant System Built-In High Pressure 4 GPM Sealed Coolant Pump
Air Requirements 85 PSI, Equipped with Air Filter and Lubricator
Operator Control Top-Mounted Control Console, Semi-Automatic or Fully Automatic Mode
Cutting Pressure Adjustable 0 – 800 LBS
Feed Rate Adjustable 0 – 3 Inches/Second
Clamping Pressure Adjustable 0 – 1,700 LBS
Blade Guide System Side and Back Guides with Flat Carbide Inserts
Powered Brush Removes Chips from Blade
Automatic Shut-Off Blade Break or Feed Out, or Pre-Determined Number of Pieces
Safety Guards Blade Guards and Awareness Barriers
Hold Down Fixtures Two Hold Down Fixtures for Main and Shuttle Vise
Automatic Barfeed Automatic Shuttle Vise Feed System 0 – 24 in Single Stroke
Table Load Capacity 3,500 LBS
Exit Support 16 in
