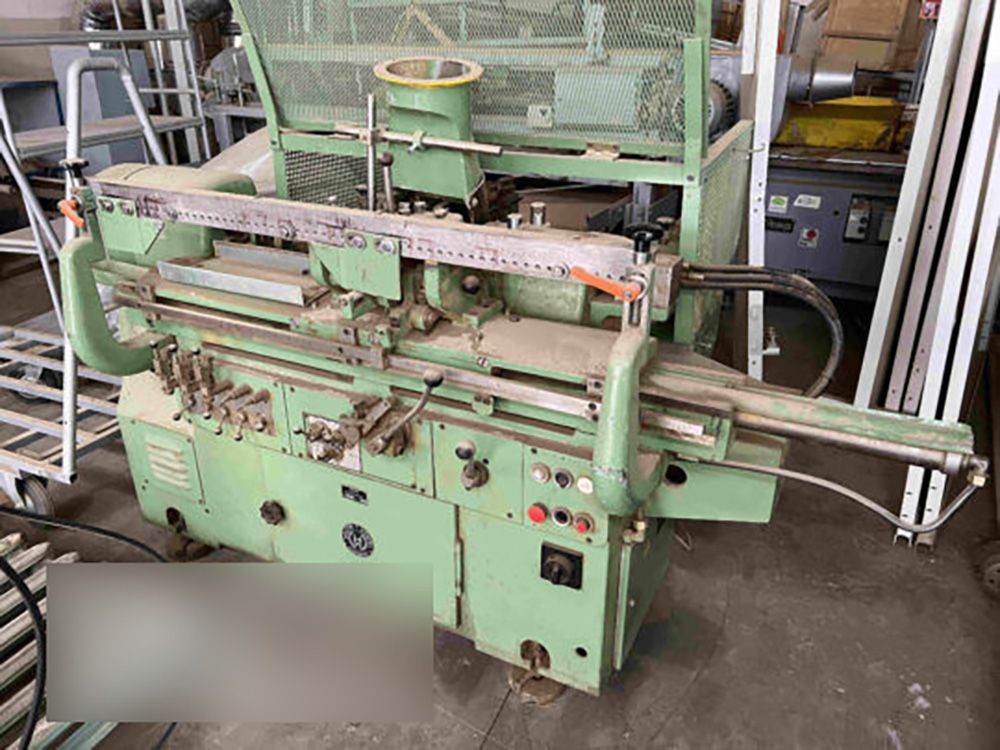

Hempel CHS 9

Automatic copy-turning machine used for production of copy-turning elements.
Turning process is fully automatic; turning knife holding unit is sliding lengthwise the work piece axis.
Chisels are moving by pattern profile.
The processes are controlled by automatic controlling unit.

Max. workpiece dimensions:
• Length 900 mm,
• Diameter 200 mm.

Spindle rotation:
• 3100 rpm.
• 3900 rpm.
• 4800 rpm.
• 6300 rpm.

Movement speed of lathe chisels:
• forward – 0-9 m/min;
• backwards – 0-14 m/min.

Power of motor spindle 7,5 kW.
Power of hydraulic pump 3 kW.
Number of lathe chisels 1 – 3.
Number of knives 3.

Machine dimensions:
• Length 3600 mm;
• Width 1800 mm;
• Height 1700 mm.
