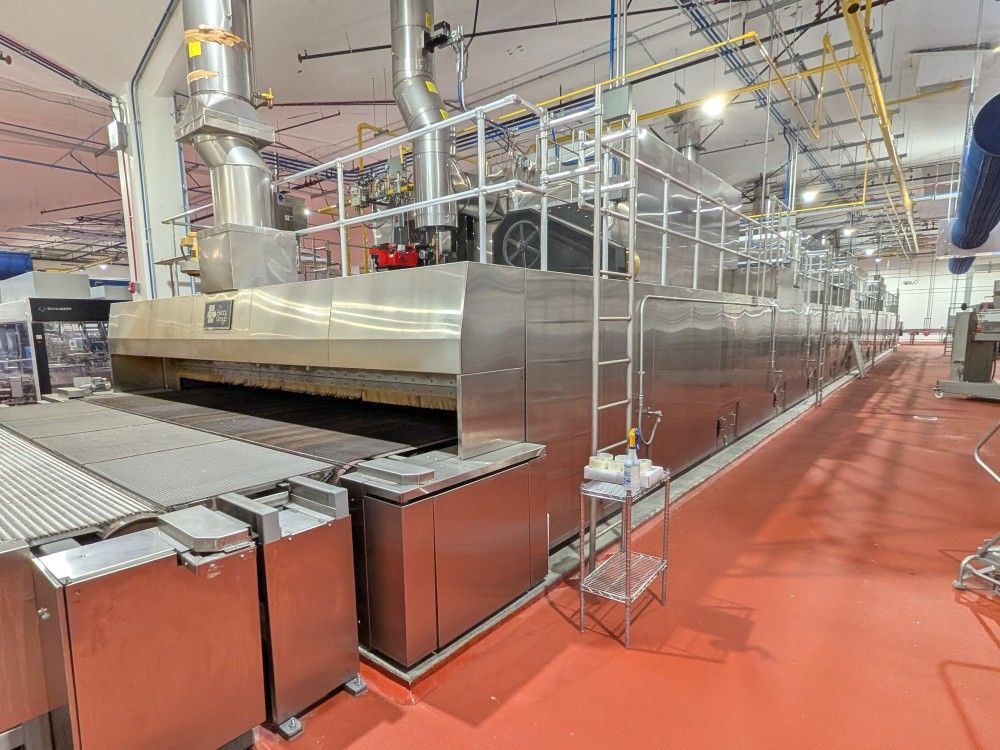

Henry 5-zone indirect fired tunnel oven

5-zone indirect fired tunnel oven with loader and unloader

Oven Specifications
Type: Indirect fired tunnel oven
Fuel: Natural gas
Zones: 5 towers (30 / 30 / 40 / 40 / 40)
Bake band: Weave wire mesh
Belt width: 15 ft 6 in.
Baking chamber length: 180 ft
Oven style: IDGF 15 ft 6 in. x 180 ft hearth with turbulence
Controls: Allen Bradley control panel

Oven Loader – 48 in. 4-Row Loader
Designed for foil and cardboard tray loading applications
Stainless steel tubular frame construction
Closed grid Habisat belting
Close-radius transfers at infeed and discharge
Stainless steel guarding
Infeed photo-eyes for accurate grouping
Pusher arm length: 15 ft
Steel frame with stainless steel panels
Stationary casters with offset for positioning away from oven
Light curtain safety system

Oven Unloader – 4-Row
Lightweight vertical tray guides
Cross conveyor with high-temperature plastic discharge belt
Steel frame construction (Steel-It coated)
Stainless steel guarding
Pusher arm length: 15 ft
Light curtain safety system

Transfer Conveyor (Oven to Cooling Conveyor)
Length: 34 in.
Belt: Weave wire mesh
Width: 15 ft 6 in.
Frame: Steel
