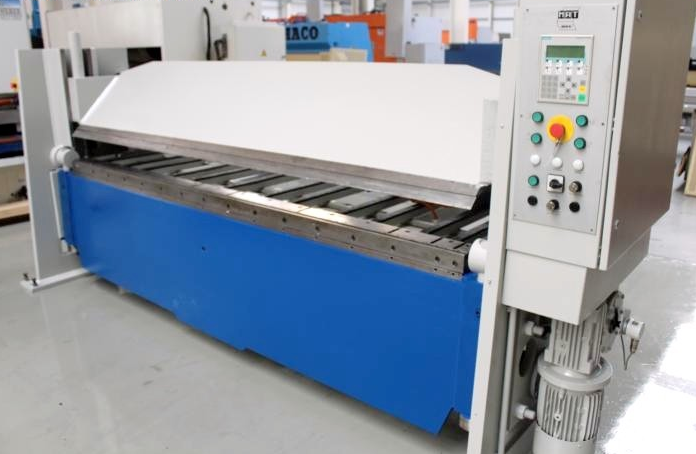

Hera SML 3020 x 4.0

HERA SML 3020 x 4.0
1997

Control type NC
Control SIEMENS OP 7
Sheet width 3020 mm
Plate thickness 4.0 mm
Opening width upper beam 350 mm
Folding beam adjustment 100 mm
Lower beam adjustment 80.0 mm
Max bending angle 130°
Max work height 900 mm
Voltage 400 V
Total power requirement 9.5 kW
Weight 5400 kg
Dimensions (L x W x H) 4300 x 2400 x 1980 mm
PLC-controlled bending process
Fully automatic or semi-automatic workflow selectable
Electronically preselectable bending angle 0–135°
Motorized backgauge travel X = 1000 mm
Large sheet metal support surface
Heavy welded frame
All drives via worm gear
Motorized bending beam adjustment
Large adjustment range of support cheeks
Hydraulic upper tool clamping
Insert and bending tools included
Operating manual included
Special accessory: split goat-foot tool H 170 mm
