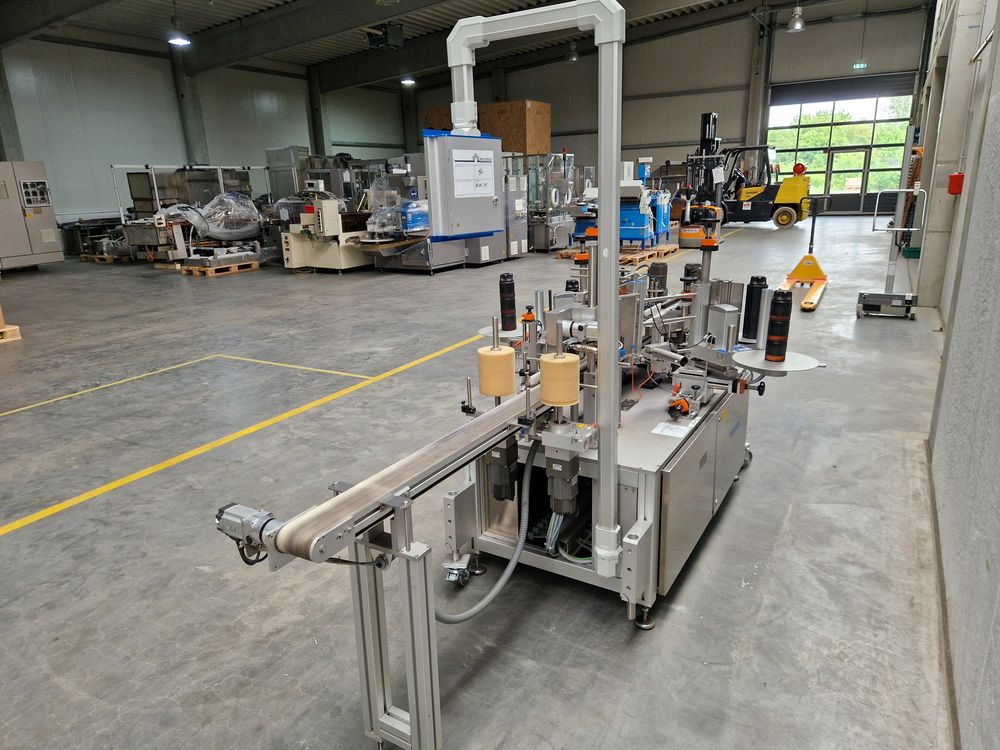

Herma 362 SONDER Labeller

Object diameter or width max. 140 mm.
Object height max. 350 mm.
Output depending on product max. approx. 4,500 objects/hour
Object infeed with separation belt left + right
Chain aligner left + right for centring object on conveyor belt
Top runner
Label dispenser right Herma H400 16R for label height max. 160 mm, format set dispensing edge available on request at extra cost
Label dispenser left Herma H400 24L for label height max. 240 mm, with format set dispensing edge height 260 mm, length 135 mm
Label dispenser mounting plates height, length and width adjustable as well as inclination around the longitudinal and transverse axis
Core diameter 75 mm
Roll diameter 300 mm
Roll-on prism for all-round labelling consisting of 2 extendable pressure rollers (height 25 mm) and 1 fixed driven counter roller (height 250 mm) for precise object guidance during roll-on labelling
Re-rolling station with foam rollers on the left and right
Outfeed conveyor approx. 1,000 mm
Tip cable
Without printing unit, without code reading
PLC Siemens ET200S
HMI Siemens Simatic Panel Touch (currently split, will be replaced before delivery)
Mobile
Electrical connection 400V/50Hz
