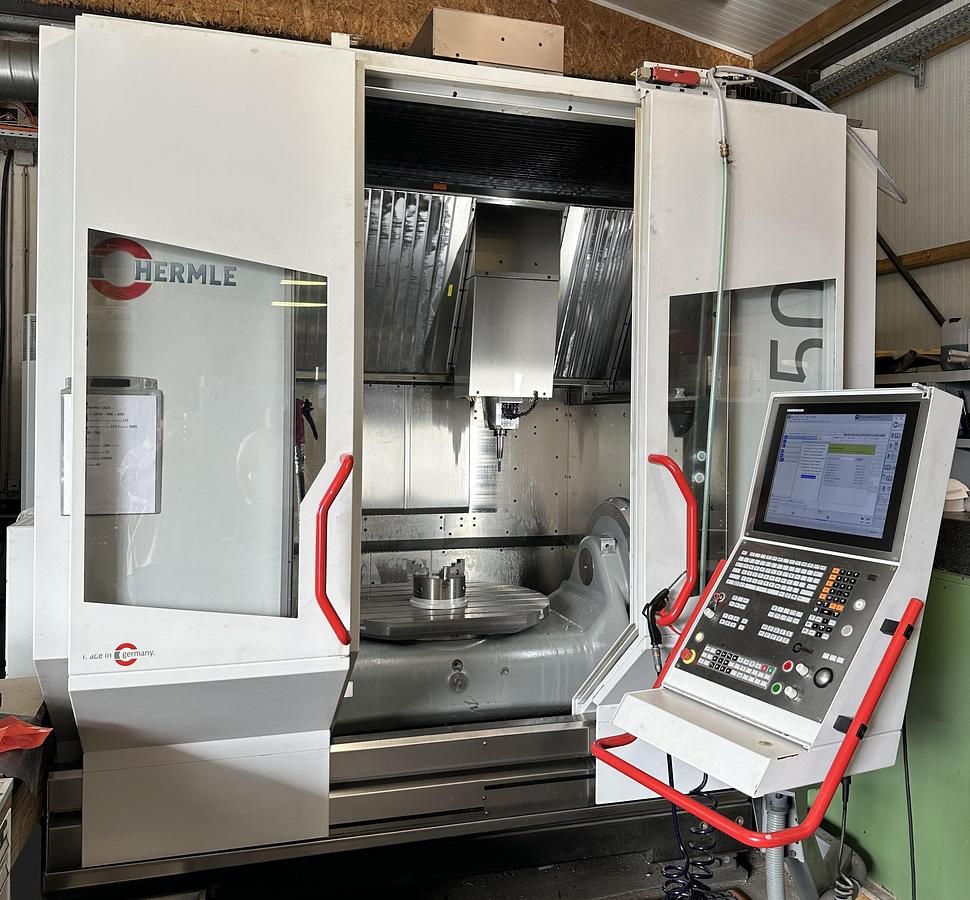

Hermle C 650 U 5 Axis

HERMLE C 650 U
Year: 2018

Travel (X / Y / Z): 1050 / 900 / 600 mm
Rotary Axis Range: 360°
Swivel Axis Range: ±115°

Control: Heidenhain TNC 640
Max. Spindle Speed: 18,000 rpm
Table Clamping Surface (Diameter): 900 x 750 mm
Number of Tool Stations: 42 positions
Tool Holder: HSK 63A

Max. Tool Diameter: 80 mm (125 mm with adjacent stations empty)
Max. Tool Length: 225 mm
Max. Tool Weight: 8 kg

T-Slot Width: 18 mm
T-Slot Distance: 100 mm
Centering Bore: 32 mm
Max. Table Load: 1500 kg

Rapid Traverse (X / Y / Z): 35 / 35 / 35 m/min
Operating Hours: approx. 8,500 h
Spindle Hours: approx. 2,500 h
Machine Weight: approx. 15 t

Technical Features:
Internal coolant supply (IKZ) 40 bar, 717 liters
Tool breakage monitoring

Accessories:
Chip conveyor
Paper band filter
Measuring probe
Electronic handwheel
50 tool holders
