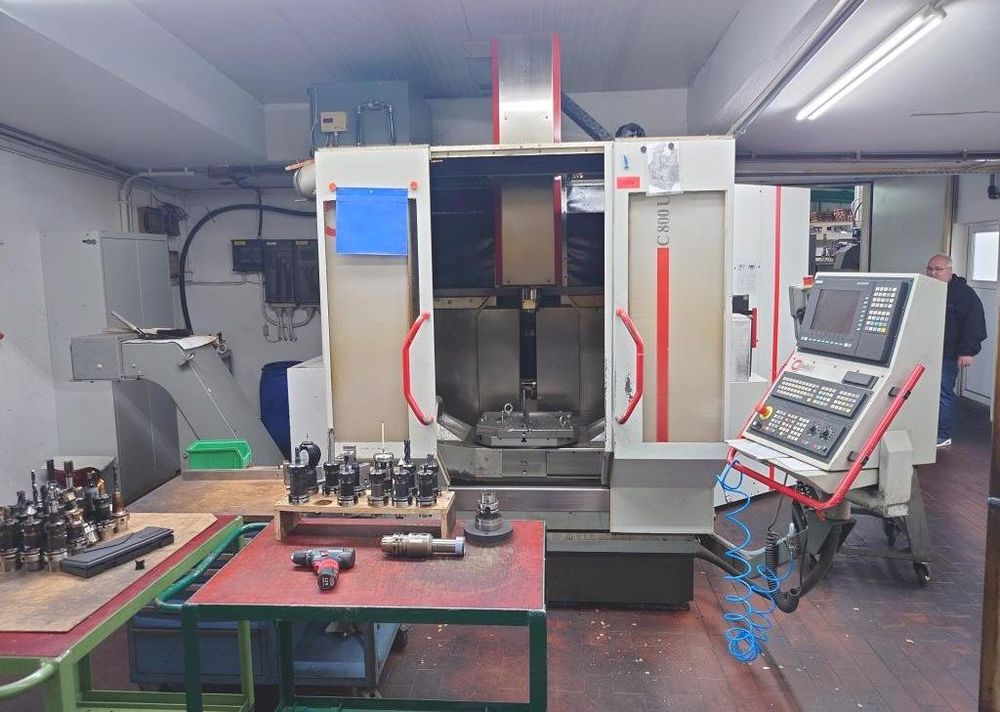

Hermle C 800 U 5 Axis

5 axis universal machining center in “gantry” design with 2 axis universal table
Milling head travel longitudinal X-axis 800 mm
Milling head travel cross Y-axis 600 mm
Milling spindle vertical travel Z-axis 500 mm
Table swiveling A-axis -20 / +90 °
Rotary table C-axis 360.000 °

Distance of Milling Spindle to machine column max. 600 mm
Height max. under Milling Spindle 100 - 600 mm
Rotary table size (swing Ø 630 mm) 540 x 540 mm
Workpiece weight max. 300 kg
Spindle taper SK 40
Spindle speeds, vertical, steplessly 18.000 rpm
Feed rate all 3 axis infinitely variable 2 – 35.000 mm/min.
Feed Force 11/16 Nm
Spindle drive approx.. 15 kW
Total electrical load 37 kW - 400 V - 50 Hz
Weight 8.000 kg

Accessories / Special Features :
· Compact, modified gantry design with 3 axis in the milling head for feeds up to 35 m/min. All guides and drives are outside the working area.

· Machine body constructed in mineral casting material with high damping characteristics, easy Set-up without foundation and dynamic stability.

· SIEMENS 5 axis CNC contour control 840 D with graphics and all modern programming features for full 5 axis machining of complex workpieces with mobile electronic handwheel

· CNC 2 axis universal rotary and swiveling table with swing of Ø 630 mm

· Rigid vertical milling spindle stock with HERMLE motorspindle up to 18.000 rpm with aut. swivel coolant nozzles

· Automatic tool changer with 30 pockets operated by pick-up system and a ring magazine and enlarged magazine up to 87 tools in total ,

· Standard coolant filtration unit with chip conveyor, oil mist extraction unit with filter, complete enclosure of the work area with sliding doors.

· Quite a lot of accessories including about 50 tool holders, manuals

· Working hours: machine 16203 h / drives 11708 h / spindle 4493 h
