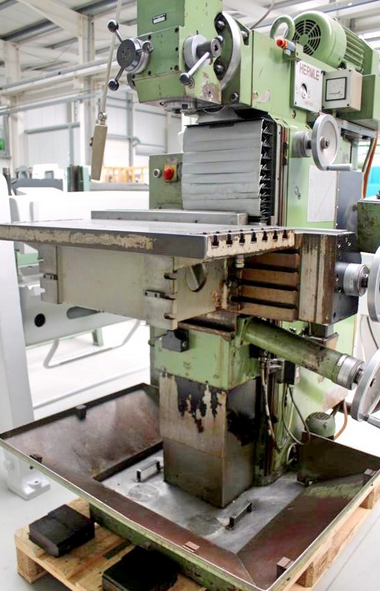

Hermle UWF 801 2500 RPM
Ref :
2747738-3-AW
Condition :
Used
Manufacturer :
Hermle
Model :
UWF 801
Spindle Speed :
2500 RPM
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control type conventional
X-axis travel 510 mm
Y-axis travel 450 mm
Z-axis travel 410 mm
Taper in main spindle MAS BT 45° (SK40)
Table surface area 800 x 395 mm
T-slots 6 pcs
Spindle speeds 50 - 2500 RPM
Feed stepless 4-1600/4-1000 mm/min
Voltage 400 V
Total power requirement 5.0 kW
Weight 1400 kg
Machine dimensions 2300 x 2300 x 1800 mm
Swiveling control panel, right front
Rotatable universal milling head (right/left = 90°)
Hydraulic tool clamping
Manual milling spindle feed with locking
Swiveling milling spindle protection
Stable T-slot clamping/angle table
Axis feeds with rapid traverse
Central lubrication unit
Control cabinet installed on the left
Digital display (non-functional)
